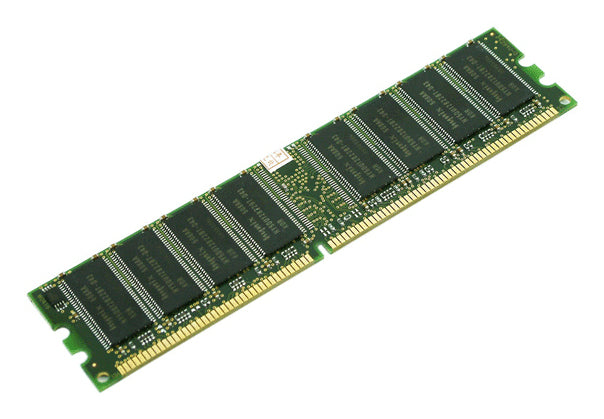

Cisco UCSX-MRX32G2RE5 | UCS X-Series 32GB DDR5-6400 RDIMM, 2Rx8, 16Gb, 1.1V

UCSX-MRX32G2RE5

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCSX-MRX32G2RE5 is a 32GB DDR5-6400 registered DIMM for Cisco UCS X-Series M8 compute nodes based on Intel Xeon 6 processors. It suits memory expansion on UCS X210c M8 nodes in a UCS X9508 chassis, for general virtualisation and data-centre workloads.

This module is dual-rank x8 (2Rx8) with 16Gb DRAM density, 288-pin ECC registered construction and a 1.1V operating voltage. It is rated DDR5-6400 (PC5-51200). On Intel Xeon 6 platforms it runs at up to 6400 MT/s with one DIMM per channel and up to 5200 MT/s with two DIMMs per channel. Each CPU provides 8 memory channels with up to 2 DIMMs per channel. Allowed DIMM counts are 1, 4, 8, 12 or 16 for a single CPU, and 2, 8, 16, 24 or 32 for a dual-CPU configuration.

The module is listed for the UCS X210c M8 compute node and is not supported on the X410c M8. Memory on every CPU socket must be configured identically. Because this is an x8 DIMM, SDDC and ADDDC RAS features are unsupported. Memory mirroring is available as an option on the X210c M8.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DDR5-6400 registered DIMM for Intel Xeon 6 based UCS X210c M8 compute nodes
- Dual-rank x8 organisation with 16Gb DRAM at 1.1V
- ECC registered design for data-centre reliability
- Supports the memory mirroring option (N01-MMIRRORD) on the X210c M8
- Memory on every CPU socket must be configured identically
- Suited to 32GB and 64GB DDR5-6400 RDIMM configurations as an alternative to MRDIMMs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSX-MRX32G2RE5
- Capacity: 32GB
- Memory type: DDR5 RDIMM (registered, ECC)
- Rated speed: DDR5-6400 MT/s (PC5-51200)
- Ranks: 2Rx8 (dual rank, x8 organisation)
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Form factor: 288-pin DIMM
- Max speed on Intel Xeon 6, 1 DIMM per channel: 6400 MT/s
- Max speed on Intel Xeon 6, 2 DIMMs per channel: 5200 MT/s
- Channels per CPU: 8, up to 2 DIMMs per channel
- Allowed DIMM counts, 1-CPU: 1, 4, 8, 12, 16
- Allowed DIMM counts, 2-CPU: 2, 8, 16, 24, 32
- Compatible node: UCS X210c M8 compute node
- Not supported on: UCS X410c M8
- Memory mirroring option: N01-MMIRRORD

FAQs

Q: Which compute nodes does this memory work with?
A: It is listed for the Cisco UCS X210c M8 compute node, which uses Intel Xeon 6 processors. It is not supported on the X410c M8.

Q: What speed does it run at?
A: The DIMM is rated DDR5-6400. On Intel Xeon 6 it runs at up to 6400 MT/s with one DIMM per channel and up to 5200 MT/s with two DIMMs per channel.

Q: Can I mix this with other DIMM types or capacities?
A: Memory on every CPU socket must be configured identically, so all DIMMs per socket should be the same type and capacity.

Q: Are SDDC and ADDDC RAS features available?
A: No. SDDC and ADDDC are unsupported with x8 DIMMs, which includes this 2Rx8 module.

Q: Does it support memory mirroring?
A: Yes, memory mirroring is available as an option on the UCS X210c M8 using N01-MMIRRORD.
