Cisco UCSX-MRX32G1RE1S | UCS X-Series 32GB DDR5-4800 RDIMM Memory, 1Rx4
SKU:UCSX-MRX32G1RE1S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

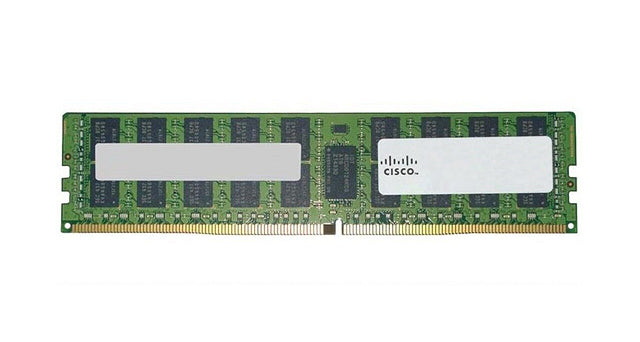

This 32GB DDR5 registered DIMM is memory for Cisco UCS X-Series M7 compute nodes, such as the UCS X410c M7. It suits data centre virtualisation and general server workloads where main memory capacity needs to be added or standardised.
The module is rated at 4800 MT/s and is a single rank, x4 design (1Rx4) built on 16Gb DRAM density. It operates at 1.1 V and is powered by the compute node, so no separate supply is needed. In the X410c M7, DDR5 memory runs at up to 4800 MT/s with one DIMM per channel and up to 4400 MT/s with two DIMMs per channel, across 8 memory channels per CPU and up to 2 DIMMs per channel.
It is intended for UCS X-Series M7 nodes using 4th Gen Intel Xeon Scalable processors. Memory on every CPU socket must be configured identically. The DDR5-5600 UCSX-MRX32G1RE3S is the corresponding migration part from Cisco.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Registered DDR5 DIMM for UCS X-Series M7 compute nodes such as the X410c M7
- DDR5 delivers up to 50% higher peak bandwidth than DDR4-3200
- Single rank x4 organisation with 16Gb DRAM density
- Memory on every CPU socket must be configured identically
- Memory mirroring option (N01-MMIRRORD) is available at the node level
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco PID: UCSX-MRX32G1RE1S
- Capacity: 32GB
- Memory type: DDR5 RDIMM (registered)
- Rated speed: 4800 MT/s
- Organisation: 1Rx4 (single rank, x4)
- DRAM density: 16Gb
- Operating voltage: 1.1 V
- Maximum clock on X410c M7: up to 4800 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- X410c M7 memory layout: 8 channels per CPU, up to 2 DIMMs per channel
- Migration part: UCSX-MRX32G1RE3S (32GB DDR5-5600 RDIMM 1Rx4 16Gb)
FAQs
Q: Which servers does this memory module work with?
A: It is designed for Cisco UCS X-Series M7 compute nodes with 4th Gen Intel Xeon Scalable processors, such as the UCS X410c M7.
Q: What speed does it run at in the X410c M7?
A: It runs at up to 4800 MT/s with one DIMM per channel and up to 4400 MT/s with two DIMMs per channel.
Q: Does the module need its own power supply?
A: No. It operates at 1.1 V and is powered by the compute node.
Q: Can I mix this with different memory on the same CPU?
A: Cisco's rule is that memory on every CPU socket must be configured identically, so populate DIMMs consistently.
Q: Is there a faster replacement part?
A: Yes. The migration part is UCSX-MRX32G1RE3S, a 32GB DDR5-5600 RDIMM 1Rx4 with 16Gb DRAM density.
