Cisco UCSX-ML-V5D200G-D | UCS VIC 15231 2x100G mLOM Network Adapter, M7 PID
SKU:UCSX-ML-V5D200G-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

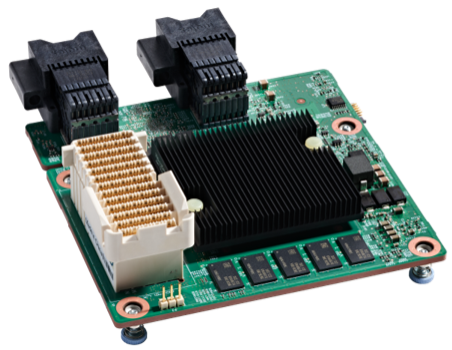

The Cisco UCS Virtual Interface Card 15231 is a dual-port 100-Gbps Ethernet and FCoE modular LAN-on-motherboard adapter for UCS X-Series compute nodes. It presents dynamically configurable PCIe NICs and HBAs to the host, supporting a policy-based, stateless server infrastructure. Typical deployments include big data and HPC, large-scale virtual machine hosting, high-bandwidth storage targets and NVMe over Fabrics workloads.
The card provides 2 x 100GbE QSFP28 ports on a PCIe 4.0 x16 mLOM form factor, with per-port speeds of 10, 25, 40, 50, 100 and 200 Gbps. It supports up to 512 virtual adapters and interfaces, jumbo frames up to 9 KB, over 900,000 IOPS and usNIC latency as low as 1 microsecond. Maximum power consumption is 24.8 W, drawn from the host node through the mLOM slot. The -D suffix is the ordering PID for UCS M7 servers, and this VIC 15231 variant does not include secure boot.
It is designed for Cisco UCS X210c M7 and X410c M7 compute nodes and works with FI 6536, 64108 and 6454 fabric interconnects and the UCSX-I-9108-25G and UCSX-I-9108-100G IFMs. Genuine 100G QSFP options listed for the card include QSFP-100G-SR4-S, QSFP-100G-SL4, QSFP-40/100-SRBD, QSFP-100G-LR4-S, QSFP-100G-CWDM4-S and QSFP-100G-PSM4-S.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Up to 512 virtual NICs and HBAs configurable in hardware, with SR-IOV capable hardware
- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network
- FCoE, FC-NVMe and NPIV support over the unified fabric
- NVMe over RoCEv2, NVMe-TCP and SMB Direct over RoCEv2 on Windows Server
- iSCSI and iSCSI boot support
- Stateless offloads including VXLAN, NVGRE, GENEVE, DPDK, usNIC, VMQ/VMMQ, RSS and PTPv2
- Hardware-based fabric failover and Priority Flow Control for lossless Ethernet
- Centralised management through Cisco Intersight (IMM) or UCS Manager
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCSX-ML-V5D200G-D
- Adapter: Cisco UCS VIC 15231 2x100G mLOM
- Ports: 2 x 100GbE (QSFP28)
- Speeds per port: 10/25/40/50/100/200 Gbps
- Form factor: PCIe 4.0 x16 mLOM
- ASIC: Cisco UCS custom ASIC
- Virtual interfaces: up to 512 virtual adapters (NICs and HBAs)
- I/O performance: over 900,000 IOPS
- Latency: usNIC as low as 1 microsecond back-to-back
- Jumbo frames: up to 9 KB
- Maximum power consumption: 24.8 W
- Dimensions (L x W x H): 4.29 x 5.03 x 1.47 in
- Supported servers: UCS X210c M7 and X410c M7
- Supported fabric interconnects: FI 6536, 6454, 64108
- Supported IFMs: UCSX-I-9108-25G, UCSX-I-9108-100G
- Secure boot: not included on the 15231
- Standards: 802.3x, 802.1Q, 802.1p, 802.1Qaz, 802.1Qbb, 802.3by, 802.3cd, T11 FCoE, PCIe Gen 3 and Gen 4
FAQs
Q: Which servers is the UCSX-ML-V5D200G-D designed for?
A: It is built for Cisco UCS X210c M7 and X410c M7 compute nodes. It is not supported on M8 servers.
Q: Does this adapter need a licence?
A: No licence is listed for the adapter itself. It is managed through Cisco Intersight (IMM) or UCS Manager policies, so the Intersight tier on the managing domain applies.
Q: How is the -D part different from the non-D VIC 15231?
A: The -D suffix is the ordering PID used for UCS M7 servers. It is functionally identical to the non-D part, and this variant does not include secure boot.
Q: Which 100G optics are listed for this card?
A: The datasheet lists QSFP-100G-SR4-S, QSFP-100G-SL4, QSFP-40/100-SRBD, QSFP-100G-LR4-S, QSFP-100G-CWDM4-S and QSFP-100G-PSM4-S.
Q: How is the adapter powered?
A: It is powered from the host UCS X-Series compute node through the mLOM slot, with a maximum consumption of 24.8 W.
