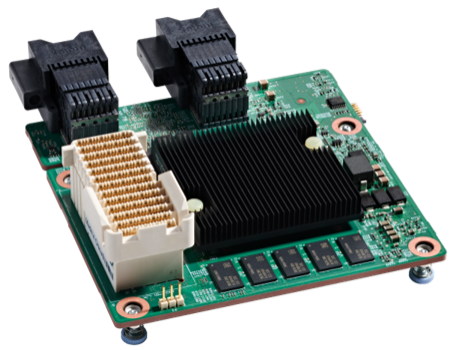

Cisco UCSX-ML-V5D200G | UCS VIC 15231 2x100G QSFP28 mLOM for X210c M6
SKU:UCSX-ML-V5D200G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS VIC 15231 is a dual-port 100GbE modular LAN-on-motherboard (mLOM) adapter from the UCS Virtual Interface Card 15000 Series, built for UCS X-Series compute nodes. It presents standards-compliant PCIe NICs and HBAs to the host, configured by policy, and suits high-performance computing, large-scale virtual machine deployments, high-bandwidth storage targets and NVMe over Fabrics workloads.
The adapter provides 2 x 100GbE QSFP28 ports on a PCIe 4.0 x16 mLOM form factor, driven by a Cisco UCS custom ASIC capable of over 900,000 IOPS. It carries Ethernet and FCoE traffic, supports hardware SR-IOV, RoCEv2, iSCSI and iSCSI boot, and uses hardware-based fabric failover for a redundant path to the fabric interconnect. Maximum power consumption is 24.8 W. This is the VIC 15231 variant without secure boot, listed as the option for the X210c M6 compute node, whereas the -D variant is for M7 and X410c nodes.
It works with UCS X-Series compute nodes X210c-M6/M7/M8, X410c-M7/M8 and X215c-M8, connecting through the UCSX-I-9108-25G or UCSX-I-9108-100G IFM to FI-6536, FI-64108 or FI-6454 fabric interconnects. Management is through Cisco Intersight or UCS Manager.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Presents PCIe interfaces to the host that can be configured as NICs or HBAs
- Hardware SR-IOV capability
- Cisco SingleConnect carries LAN, SAN and management over a single network
- Hardware fabric failover with a redundant path to the fabric interconnect
- Lossless Ethernet via Priority Flow Control
- NVMe over Fabrics support: NVMe/RoCEv2, NVMe/FC and NVMe/TCP
- iSCSI and iSCSI boot, plus PXE boot
- Centralised configuration and management through Cisco Intersight
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCSX-ML-V5D200G
- Adapter: Cisco UCS VIC 15231 2x100G mLOM
- Ports: 2 x 100GbE QSFP28
- Per-port speeds: 10/25/40/50/100/200-Gbps (VIC 15000 Series)
- Form factor: PCIe 4.0 x16 mLOM
- ASIC: Cisco UCS custom ASIC
- Performance: over 900,000 IOPS
- Maximum power consumption: 24.8 W
- Dimensions (L x W x H): 4.29 in x 5.03 in x 1.47 in
- Secure boot: not supported on the VIC 15231
- Jumbo frames: up to 9KB
- Network architecture: hardware-based fabric failover with redundant path to the fabric interconnect
- Lossless Ethernet: Priority Flow Control (PFC)
- Low-latency connectivity: usNIC, as low as 1 microsecond in back-to-back VIC connections
- Supported fabric interconnects and IFMs: FI-6536, FI-64108, FI-6454, UCSX-I-9108-25G, UCSX-I-9108-100G
- Supported servers: X210c-M6/M7/M8, X410c-M7/M8, X215c-M8
- Recommended IMM release: 4.2(2) or later with VIC firmware 5.2(2)
FAQs
Q: Does the VIC 15231 support secure boot?
A: No. The VIC 15231 does not include secure boot. The VIC 15230 (UCSX-ML-V5D200GV2) adds secure boot but is otherwise functionally equivalent.
Q: Which compute nodes does this adapter work with?
A: It works with UCS X-Series compute nodes X210c-M6/M7/M8, X410c-M7/M8 and X215c-M8. This SKU is the X210c M6 option, while UCSX-ML-V5D200G-D is the variant for M7 and X410c nodes.
Q: What fabric interconnects and IFMs does it connect through?
A: It connects through the UCSX-I-9108-25G or UCSX-I-9108-100G IFM to FI-6536, FI-64108 or FI-6454 fabric interconnects.
Q: Does the adapter need its own licence?
A: No licence is listed for the adapter itself. It is managed through Cisco Intersight or UCS Manager, which have their own licensing.
Q: How much power does it draw?
A: It draws up to 24.8 W at maximum and is powered from the mLOM slot of the UCS X-Series compute node.
