Cisco UCSX-ME-V5Q50G-D | UCS VIC 15422 4x25G Mezzanine Adapter, Secure Boot
SKU:UCSX-ME-V5Q50G-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

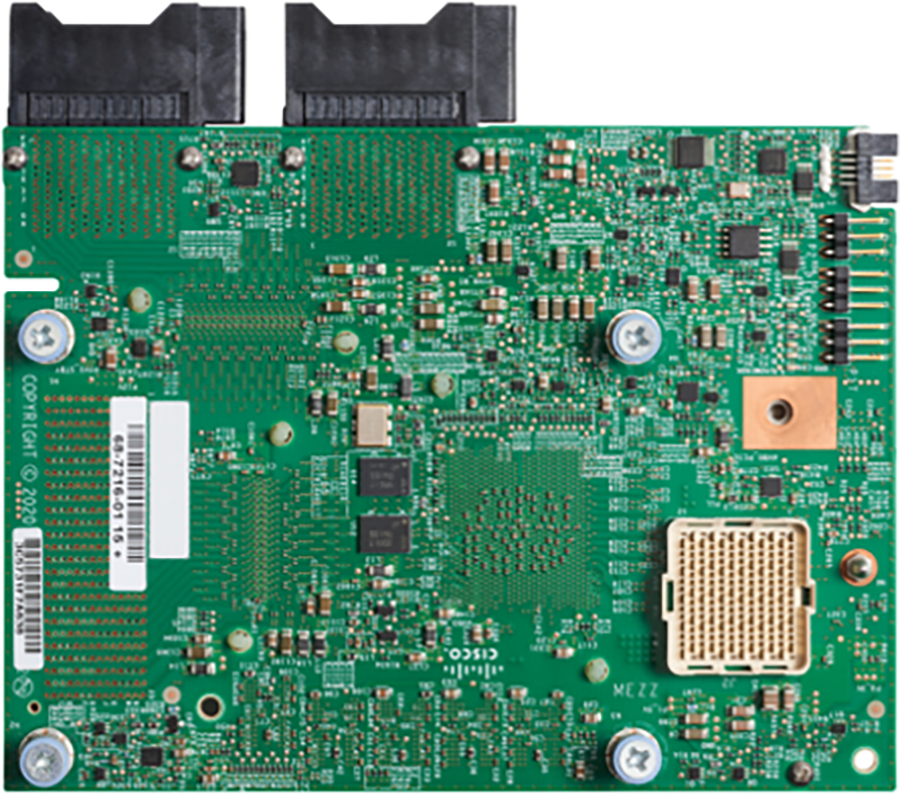

The Cisco UCS Virtual Interface Card 15422 is a quad-port 25G Ethernet and FCoE mezzanine adapter built for UCS X-Series compute nodes. This -D version adds VIC Secure Boot and is intended for X210c M7, X410c M7 and X215c M8 nodes in Intersight-managed or UCS-managed data centres.
The card provides four 25Gbps Ethernet/FCoE links through the chassis IFMs, with a PCIe Gen4 x16 host interface and two further PCIe Gen4 x16 links to each UCS 9416 X-Fabric module for X440p PCIe node connectivity such as GPU expansion. It presents up to 512 PCIe virtual devices that can be configured as vNICs or vHBAs, with hardware-based fabric failover and Priority Flow Control for lossless Ethernet.
The mezzanine is paired with the 15420 mLOM VIC through the UCSX-V5-BRIDGE-D bridge card. It works with the UCSX-I-9108-25G and UCSX-I-9108-100G IFMs and with FI-6536, FI-64108 and FI-6454 fabric interconnects. IMM release 4.3(1) or later is recommended.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cisco SingleConnect carries LAN, SAN and management traffic over a single unified network
- VIC Secure Boot verifies the integrity of the VIC hardware and firmware at server boot
- Centralised configuration of the mLOM and mezzanine through Cisco Intersight
- Hardware-based fabric failover and NIC teaming
- RoCEv2, NVMe over RoCEv2, NVMe-TCP and SMB Direct support
- VXLAN/NVGRE offload, GENEVE offload with VMware NSX-T, SR-IOV, DPDK, usNIC and iSCSI boot
- PCIe interfaces dynamically configurable as NICs or HBAs with stateless, policy-based provisioning
- PCIe connectivity to the UCS 9416 X-Fabric module for X440p node expansion
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Cisco UCS VIC 15422 quad-port 25G mezzanine
- Ports: 4 x 25Gbps Ethernet/FCoE (10/25G SFP28 per ordering description)
- Form factor: Rear mezzanine for UCS X-Series compute nodes
- Host interface: PCIe Gen4 x16
- X-Fabric connectivity: Two additional PCIe Gen4 x16 links to each UCS 9416 X-Fabric module
- X-Fabric connector: Molex Orthogonal Direct (OD), 32 PCIe lanes to each X-Fabric
- Virtual devices: Up to 512 PCIe virtual devices (vNICs or vHBAs)
- I/O performance: Over 900,000 IOPS
- Jumbo frames: Up to 9KB
- Lossless Ethernet: Priority Flow Control (PFC)
- Network architecture: Hardware-based fabric failover
- Secure Boot: VIC Secure Boot supported from release 4.3(1)
- Supported compute nodes: UCS X210c M7, X410c M7, X215c M8
- Supported IFMs: UCSX-I-9108-25G, UCSX-I-9108-100G
- Supported fabric interconnects: UCS FI-6536, FI-64108, FI-6454
- Required bridge card: UCSX-V5-BRIDGE-D to connect to the 15420 mLOM VIC
- Management: Cisco Intersight, IMM release 4.3(1) or later recommended
- OS support: VMware vSphere, Windows Server, RHEL, SLES, Ubuntu, Citrix XenServer
FAQs
Q: Which compute nodes does this -D adapter support?
A: The UCSX-ME-V5Q50G-D is for UCS X210c M7, X410c M7 and X215c M8 compute nodes. It is the Secure Boot version of the VIC 15422 mezzanine.
Q: Does it work on its own or does it need another card?
A: It is paired with the VIC 15420 mLOM through the UCSX-V5-BRIDGE-D bridge card, which connects the mezzanine to the mLOM.
Q: Which IFMs and fabric interconnects does it work with?
A: It is compatible with the UCSX-I-9108-25G and UCSX-I-9108-100G IFMs, and with UCS FI-6536, FI-64108 and FI-6454 fabric interconnects.
Q: Does it need a separate licence?
A: No licence is listed for the adapter itself. Server management through Cisco Intersight is subject to Intersight licensing.
Q: Do I need to connect optics to this mezzanine card?
A: No. The 25G links run internally from the compute node to the chassis IFMs, so no SFP28 optics are fitted to the mezzanine itself.
Q: Can it be used with X-Fabric PCIe nodes?
A: Yes. It provides two additional PCIe Gen4 x16 links to each UCS 9416 X-Fabric module for X440p PCIe node connectivity, such as GPU expansion.
