Cisco UCSX-I-9108-100G | UCS 9108 100G Fabric Module, 8x 100G QSFP28, 3.2 Tbps
SKU:UCSX-I-9108-100G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

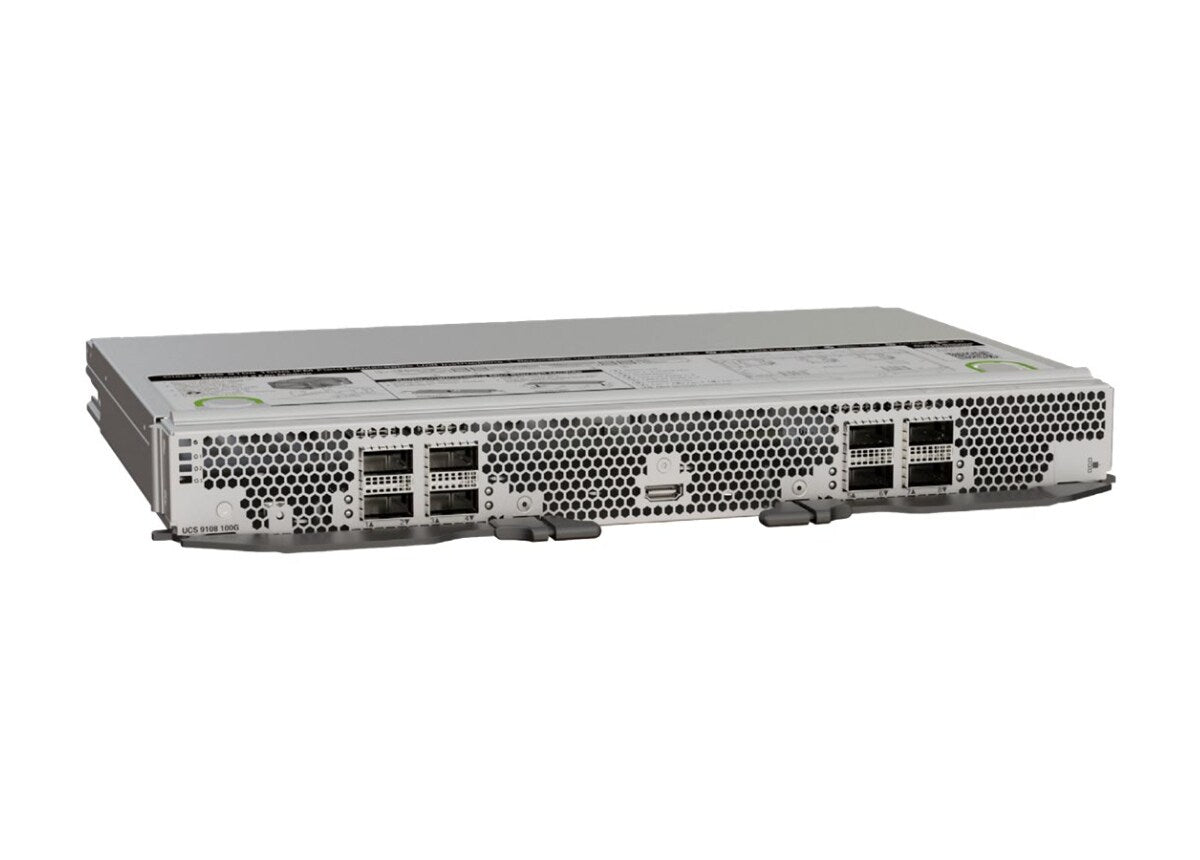

The UCS 9108 100G Intelligent Fabric Module (IFM) is the network connection point for a Cisco UCS X9508 chassis in the UCS X-Series Modular System. It plugs into the rear of the chassis and links the compute nodes to a UCS 6500 or 6600 series Fabric Interconnect, so the chassis joins a single management domain without a separate chassis switch or management module.
Each IFM provides 8 x 100G QSFP28 uplink ports to the Fabric Interconnect, an 800 Gb/s network data path and 3.2 Tbps of total chassis I/O. Internally it gives each of the 8 compute nodes either 1 x 100G or 4 x 25G, depending on the VIC 15000 or 14000 series adapter fitted. Latency is under 1 microsecond. The module draws 237 W from the chassis, runs on three on-board dual-rotor fans with front-to-rear airflow, and is installed in pairs for redundancy, with a maximum of two per X9508 chassis. It does no switching of its own and is managed as an extension of the Fabric Interconnects, with Cisco Intersight management supported.
Supported QSFP28 optics and cables include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD, QSFP-100G-SM-SR, QSFP-100G-SL4, QSFP-100G-DR-S, QSFP-100G-FR-S, QSFP-100G-SR1.2, QSFP-100G-CU1M to CU5M and QSFP-100G-AOC1M to AOC30M.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Brings the unified fabric into the chassis, simplifying cabling, diagnostics and management
- Fabric extender architecture with no switching in the chassis, so many chassis scale as one management domain
- Monitors chassis power supplies, fans and blades together with the Fabric Interconnect, with no separate chassis management module
- Lossless fabric with FCoE and Priority Flow Control
- Cisco Intersight management
- QSFP28 uplinks bound to a port-channel toward the Fabric Interconnect, with 1 to 8 links active
- Carries compute node KVM, Serial over LAN and IPMI data for monitoring and management
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSX-I-9108-100G
- Description: UCS 9108 100G IFM for X9508 chassis
- Uplink ports: 8 x 100G QSFP28 to Fabric Interconnect
- Internal connection: 1 x 100G or 4 x 25G per compute node, 8 compute nodes
- Total chassis I/O per IFM: 3.2 Tbps
- Server data path bandwidth: 800 Gb/s
- Network data path bandwidth: 800 Gb/s
- Latency: less than 1 microsecond
- CPU complex: Intel Denverton, 4 core, 2.2GHz, 15W
- Memory: DDR4, 8GB max at 2133 MHz
- Storage: one M.2 mini storage module slot
- Fans: 3 dual-rotor on-board fans, front-to-rear airflow
- Power supply: supplied by chassis
- Power consumption: 237 W
- Dimensions (H x W x D): 4.2 x 37.9 x 29.9 cm
- Weight: 3.82 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity, non-condensing: 5 to 95%
- Altitude: 0 to 4000 m
- Fabric Interconnect compatibility: Cisco UCS 6500/6600 series
FAQs
Q: Which Fabric Interconnects does it connect to?
A: It connects to Cisco UCS 6500 and 6600 series Fabric Interconnects, and is managed as an extension of them.
Q: Do I need to fit more than one?
A: IFMs are installed in pairs for redundancy. An X9508 chassis takes a maximum of two.
Q: Does it need its own licence?
A: No licence is stated for the IFM itself. It is managed through the connected UCS Fabric Interconnect and Cisco Intersight.
Q: How is it powered?
A: It is powered by the X9508 chassis and draws 237 W. The on-board fans run from 54VDC or 48VDC.
Q: Which optics and cables work with the QSFP28 ports?
A: Supported parts include QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-40/100-SRBD, QSFP-100G-SM-SR, QSFP-100G-SL4, QSFP-100G-DR-S, QSFP-100G-FR-S, QSFP-100G-SR1.2, QSFP-100G-CU1M to CU5M and QSFP-100G-AOC1M to AOC30M.
Q: Which compute node adapters does it support?
A: Compute nodes such as the UCS X210c use VIC 15000 or 14000 series adapters, which give each node 1 x 100G or 4 x 25G to the IFM.
