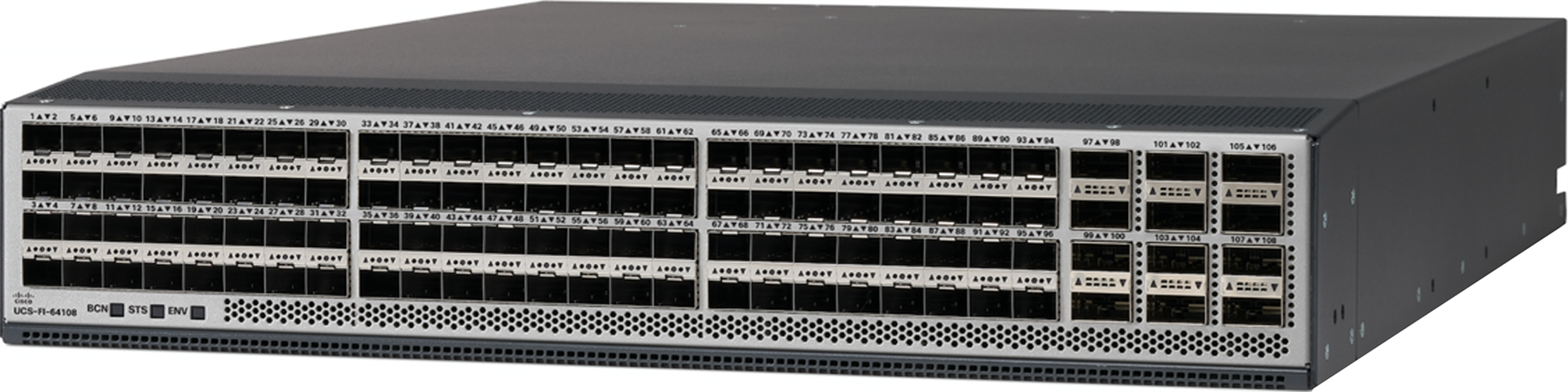

Cisco UCSX-FI-6536-D-U | UCS 6536 36-Port 100G Fabric Interconnect, IMM, No PSU

SKU:UCSX-FI-6536-D-U

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6536 is a 1RU fabric interconnect from the Cisco UCS 6500 Series, built to provide unified LAN and SAN connectivity and management for UCS X-Series, B-Series and C-Series servers in data centre deployments. This SKU is the Intersight Managed Mode (IMM) variant, so the domain is managed through Cisco Intersight.

It offers 36 fixed 40/100G QSFP28 ports, and every port supports 4x10/25G breakout for up to 144 10/25G ports. Ports 33 to 36 are unified ports that can provide up to 16 x 8/16/32G Fibre Channel connections after breakout. Switching throughput is 7.42 Tbps with a packet forwarding rate of 2.4 bpps and latency under one microsecond. The unit has 6 fan modules and two power supply slots, and this SKU has no power supply. It ships with a perpetual licence that activates all ports and software features, while Intersight management requires an Intersight account.

The fabric interconnect works with UCS X9508 and UCS 5108 chassis, the UCSX-9108-25G and UCSX-9108-100G IFMs, and VIC 1300, 1400, 14000 and 15000 series adapters. Power supplies use the UCS-PSU-6536-AC part, with UCS-FAN-6536 and UCS-ACC-6536 as matching accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency, lossless 10/25/40/100G Ethernet, FCoE, Fibre Channel and NVMe over Fabric
- Cut-through architecture with deterministic latency regardless of packet size
- Unified fabric carrying LAN and SAN traffic on the same ports
- Breakout and QSA/QSA28 adapter support on all 36 ports for 1G, 10G and 25G connectivity
- Managed through Cisco Intersight in Intersight Managed Mode
- Redundant hot-swappable power supplies (1+1) and dual-rotor fan modules
- Priority Flow Control (802.1Qbb), ETS (802.1Qaz) and DCBX
- Ethernet and Fibre Channel switch and end-host modes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Fixed ports: 36 x 40/100-Gbps QSFP28
- Breakout: all 36 ports support 4x10/25G, up to 144 x 10/25G ports
- Unified ports: 4 (ports 33-36), up to 16 x 8/16/32G Fibre Channel after breakout
- 1-Gbps Ethernet ports: 2 (ports 9, 10)
- Supported speeds: 1/10/25/40/100-Gbps Ethernet and FCoE, 8/16/32-Gbps Fibre Channel
- Switching throughput: 7.42 Tbps
- Packet forwarding rate: 2.4 bpps
- MAC address table entries: 32,000
- VLANs: 3K
- Jumbo frames: up to 9216 bytes
- CPU: 4 cores
- System memory: 32 GB
- Management ports: L1, L2, RJ-45 Management, RS-232 Serial
- USB ports: 1
- Power supply slots: 2 x 1100W AC, hot-swappable
- Typical operating power: 348 W
- Maximum power: 800 W
- Input voltage (AC): 100 to 240 VAC
- Input voltage (DC): -40 to -72 VDC
- Fans: 6 fan modules (12 rotors)
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 4.4 x 43.9 x 62.7 cm
- Weight: 11.6 kg with two power supplies and six fans
- Operating temperature: 0 to 40 C

FAQs

Q: Does this fabric interconnect need a separate licence?
A: It ships with a perpetual licence that activates all ports and software features. In Intersight Managed Mode, management is provided through Cisco Intersight, which requires an Intersight account for the managed domain.

Q: Which power supply does it use?
A: It takes up to two UCS-PSU-6536-AC 1100W hot-swappable power supplies (100-240VAC). This SKU has no power supply, so they are required separately.

Q: Which servers and chassis does it work with?
A: It supports UCS X9508 and UCS 5108 chassis, UCS X-Series M6/M7, B-Series M5/M6 and C-Series M5/M6/M7 servers, and VIC 1300, 1400, 14000 and 15000 series adapters.

Q: How does this version differ from other UCS 6536 SKUs?
A: This SKU is the Intersight Managed Mode (IMM) variant with 36 ports and no power supply, managed through Cisco Intersight rather than UCS Manager.

Q: Can it connect to Fibre Channel storage?
A: Yes. Unified ports 33 to 36 support up to 16 x 8/16/32G Fibre Channel ports after breakout, alongside FCoE support.
