Cisco UCSX-F-9416 | UCS X-Series 9416 PCIe Gen4 X-Fabric Module
SKU:UCSX-F-9416
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

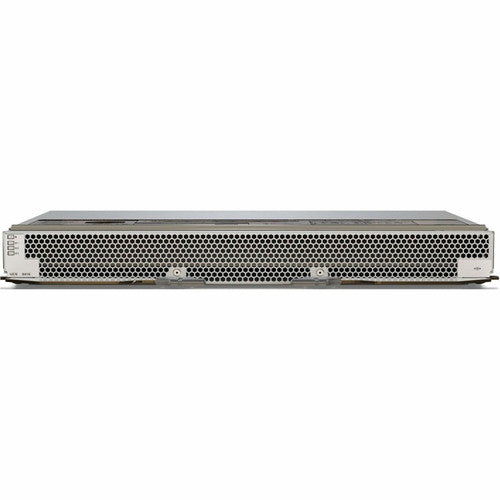

The UCS 9416 X-Fabric module is a rear-loading fabric module for the Cisco UCS X9508 chassis, part of the UCS X-Series Modular System. It provides PCIe Gen4 x16 connectivity between compute nodes and PCIe resource nodes, so GPUs and other I/O devices can be pooled and assigned to compute nodes on demand. It suits virtualisation, AI/ML, VDI and data centre deployments that need composable PCIe expansion.
The module fits the two X-Fabric slots at the bottom rear of the chassis and is deployed as a pair, which gives redundant fabric paths. Each slot provides a PCIe Gen4 x16 link to every compute node. The design has no midplane, so compute node mezzanine cards connect directly to the fabric module slots. This removes PCIe-to-Ethernet translation, which reduces cost, power and latency. The chassis supplies power, so no separate power supply is needed. The module itself needs no licence, and the chassis is managed through Cisco Intersight or UCS Manager. This is the PCIe Gen4 X-Fabric module (9416), ordered as UCSX-F-9416-D with the chassis; the spare PID is UCSX-F-9416=.
It works with Cisco UCS X210c, X215c and X410c compute nodes and X440p and X580p PCIe nodes. Supported adapters are the UCS VIC 14425, UCS VIC 15230 and the UCS PCIe Mezz card for X-Fabric.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- PCIe Gen4 X-Fabric connectivity between compute nodes and PCIe resource nodes such as GPU, storage and NVMe
- Allows PCIe I/O devices to be configured on demand and shared across compute nodes
- Eliminates PCIe-to-Ethernet translation, reducing cost, power and latency
- Midplane-less design with compute node mezzanine cards connecting directly to the fabric module slots
- Modular design allows interconnects to be updated with newer X-Fabric modules in the future
- Paired deployment for redundant fabric paths
- Managed through Cisco Intersight or Cisco UCS Manager
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID (chassis configuration PID): UCSX-F-9416-D
- Spare PID: UCSX-F-9416=
- Description: UCS 9416 X-Fabric module for 9508 chassis
- Form factor: Rear-loading module, bottom-rear slots of UCS X9508 chassis
- Slots per chassis: 2 X-Fabric module slots
- Interface to each compute node: PCIe Gen4 x16 per XFM slot
- Supported compute nodes: Cisco UCS X210c, X215c, X410c
- Supported PCIe nodes: Cisco UCS X440p, X580p
- Supported adapters: UCS VIC 14425, UCS VIC 15230, UCS PCIe Mezz card for X-Fabric
- Host chassis: Cisco UCS X9508 (7RU, 8 front-facing flexible slots)
- Host chassis power: six 2800 W PSUs, 54 VDC, N / N+1 / N+2 / N+N redundancy
- Host chassis operating temperature: 10 to 35 C (50 to 95 F), derate 1 C per 300 m altitude
- Host chassis non-operating temperature: -40 to 65 C
- Host chassis operating humidity: 10% to 90% non-condensing
- Host chassis operating altitude: 0 to 3000 m (10,000 ft)
FAQs
Q: Does this module need a licence?
A: No licence is required for the module itself. The chassis is managed through Cisco Intersight, which is licensed by tier, or through UCS Manager.
Q: How is the module powered?
A: It is powered from the UCS X9508 chassis, which uses six 2800 W power supplies at 54 VDC. No separate power supply is needed.
Q: Which nodes and adapters does it work with?
A: It works with UCS X210c, X215c and X410c compute nodes and X440p and X580p PCIe nodes. Supported adapters are the UCS VIC 14425, UCS VIC 15230 and the UCS PCIe Mezz card for X-Fabric.
Q: How many modules does a chassis need?
A: The UCS X9508 chassis has two X-Fabric module slots, and modules are ordered and installed in pairs.
Q: How does this differ from the UCSX-FS-9516?
A: The 9416 is a PCIe Gen4 X-Fabric module. The UCSX-FS-9516 is a separate, newer PCIe Gen5 switch module.
