Cisco

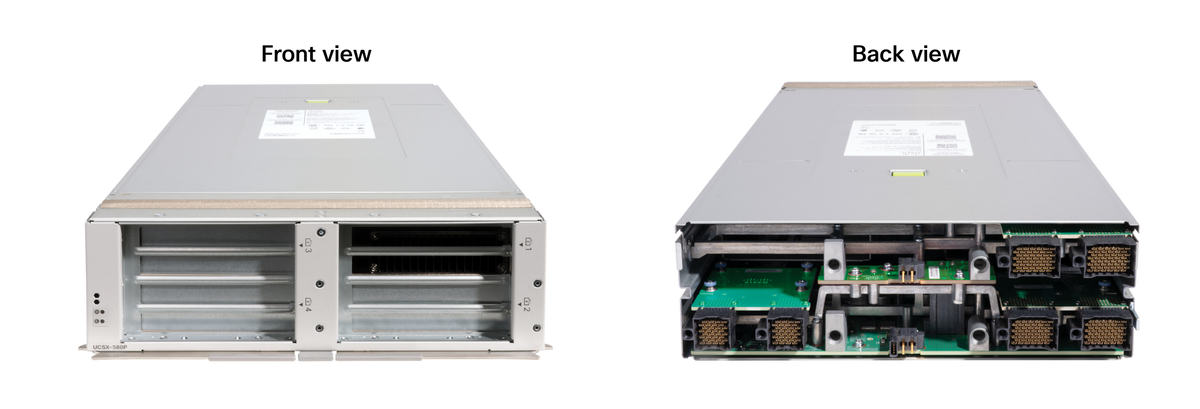

Cisco UCSX-580P | UCS X580p PCIe Gen5 GPU Node, 4x GPU Slots, No GPUs

UCSX-580P

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS X580p is a PCIe Gen5 expansion node for the Cisco UCS X-Series Modular System. It is built for generative and agentic AI fine-tuning and inference, high-performance LLM inference, VDI, rendering and professional visualisation, and it lets GPU resources sit alongside UCS X-Series compute nodes in the UCS X9508 chassis.

This base SKU provides two riser cages with two GPU slots each, giving four full-height, full-length dual-slot PCIe Gen5 x16 positions. GPUs are ordered separately. Supported options are NVIDIA H200 NVL, L40S, RTX PRO 6000 Blackwell and RTX PRO 4500 Blackwell, with 2-way NVLink bridge support on the H200 NVL. The node occupies two chassis slots, draws up to 2400 W from the chassis power supplies and connects to compute nodes through UCS X9516 X-Fabric modules. GPUs can be assigned to one or two compute nodes, as 1, 2 or 4 GPUs per node, using PCIe device policies in Cisco Intersight.

It works with UCS X210c M8, X215c M8 and X210c M7 compute nodes, each of which needs a UCSX-V5-PCIME PCIe mezzanine card. It is managed in Intersight Managed Mode, which needs a minimum Cisco Intersight Essentials licence per server. Different GPU types cannot be mixed within one riser cage or on one compute node.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to four air-cooled dual-slot GPUs per node, with NVLink bridge support and no power throttling
- GPUs from one X580p can be shared across up to two compute nodes
- Assign 1, 2 or 4 GPUs per compute node through Intersight PCIe device policies
- Policy-based GPU provisioning and unified monitoring of compute and GPU resources in Cisco Intersight
- Midplane-free UCS X9508 architecture with vertical nodes connecting directly to horizontal X-Fabric modules
- X9516 X-Fabric provides a programmable PCIe Gen5 fabric with SmartNIC support for GPU-to-GPU communication over an AI fabric
- Built on the NVIDIA MGX modular reference design for future GPU support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: PCIe GPU expansion node
- GPU slots: 4 total, 2x riser cages with 2 GPU slots per cage
- GPU form factor: Full-height, full-length (FHFL) dual-slot
- PCIe interface: PCIe Gen5 x16
- Supported GPUs: NVIDIA H200 NVL, L40S, RTX PRO 6000 Blackwell, RTX PRO 4500 Blackwell
- NVLink: 2-way bridge support with H200 NVL
- Chassis: Cisco UCS X9508, occupies 2 chassis slots
- Fabric module: Cisco UCS X9516 X-Fabric
- Fabric interconnects: UCS 4th, 5th and 6th Generation
- Compatible compute nodes: UCS X210c M8, X215c M8, X210c M7
- Maximum power consumption: 2400 W, drawn from chassis power supplies
- Management: Dedicated BMC, Cisco Intersight (SaaS)
- ACPI: 4.0 standard, states S0 and S5 supported
- Height: 94 mm (3.7 in.)
- Width: 286.5 mm (11.28 in.)
- Depth: 602 mm (24 in.)
- Weight (minimum configuration): 8.4 kg (18.51 lbs)
- Operating temperature: 10 to 27 C (50 to 81 F)
- Non-operating temperature: -40 to 65 C (-40 to 149 F)
- Non-operating humidity: 5% to 93% non-condensing
- Operating altitude: 0 to 3000 m (0 to 10,000 ft)
- Non-operating altitude: 12,000 m (40,000 ft)

FAQs

Q: Does this SKU include any GPUs?
A: No. UCSX-580P is the base PCIe node with four GPU slots. GPUs are selected separately using the UCSX-GPU-L40S, UCSX-GPU-H200-NVL, UCSX-GPU-RTXP6000 or UCSX-GPU-RTXP4500 part numbers.

Q: Which compute nodes and fabric does it work with?
A: It pairs with UCS X210c M8, X215c M8 and X210c M7 compute nodes in a UCS X9508 chassis, connected through UCS X9516 X-Fabric modules. Each mapped compute node needs a UCSX-V5-PCIME PCIe mezzanine card.

Q: How is it powered?
A: It has no separate power supply. Power comes from the UCS X9508 chassis power supplies, with a maximum draw of 2400 W for the node. Ambient temperature must stay below 27 C.

Q: What licensing is required?
A: It is managed in Intersight Managed Mode, which requires a minimum Cisco Intersight Essentials licence per server. An NVIDIA vGPU licence is required when L40S or RTX PRO 6000 GPUs are selected.

Q: Can different GPU types be mixed in one node?
A: Different GPU types cannot be mixed within one riser cage or on one compute node. The 2-way NVLink bridge (UCSX-NVL2-H200) is available for H200 NVL GPUs.
