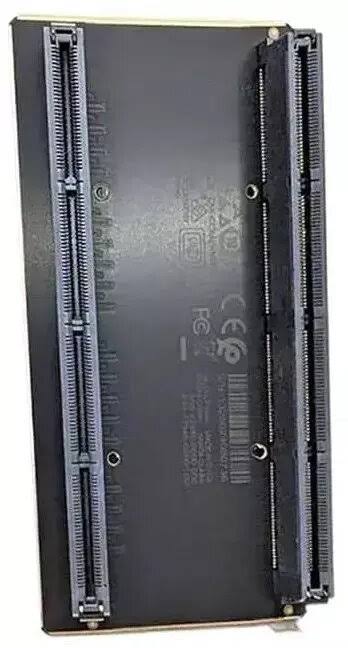

• Black rectangular HPE S4A90C 2-way NVLink bridge with metallic pins for H200 NVL 900GB/s connection
1 1

Cisco

Cisco UCSX-NVL2-H200 | UCS X-Series 2-Way NVLink Bridge, 900GB/s, H200 NVL

UCSX-NVL2-H200

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 2-way NVIDIA NVLink bridge is built for the Cisco UCS X-Series and links two NVIDIA H200 NVL GPUs installed in a UCS X580p PCIe Node. It suits generative AI training and fine-tuning and high-performance LLM inference, where GPU-to-GPU traffic is a bottleneck.

Once fitted, the paired GPUs communicate directly at up to 900GB/s, without that traffic crossing the PCIe bus. The bridge is a passive component and needs no separate power. Each H200 NVL GPU in the pair is rated at 600W with 141GB of memory in a 2-slot full-height, full-length form factor, and the X580p node supports up to 4 air-cooled GPUs with NVLink Bridge support. The bridge itself needs no licence. The host node under Intersight Managed Mode requires at least an Intersight Essentials licence per server.

This bridge is designed for NVIDIA H200 NVL GPUs (UCSX-GPU-H200-NVL) in the Cisco UCS X580p PCIe Node. The X580p pairs with UCS X210c M8 and X215c M8 compute nodes in a UCS X9508 chassis with X9516 X-Fabric modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Direct NVLink GPU-to-GPU connectivity between a pair of H200 NVL GPUs
- Passive design with no separate power requirement
- Supports air-cooled GPUs without performance impact or power throttling
- Integrates with Cisco Intersight for unified compute and GPU management
- Suited to LLM inference and generative AI training and fine-tuning workloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: 2-way NVLink bridge
- Bandwidth: up to 900GB/s NVLink
- Supported GPU: NVIDIA H200 NVL (UCSX-GPU-H200-NVL)
- GPU rating: 600W, 141GB, 2-slot NVL2 FHFL
- Parent platform: Cisco UCS X580p PCIe Node (UCSX-580P-U)
- GPUs per X580p node: up to 4x NVIDIA H200 NVL
- Chassis: Cisco UCS X9508 (X580p occupies two slots)
- X-Fabric modules: Cisco UCS X9516
- Fabric interconnects: Cisco UCS 4th, 5th and 6th Generation
- Management: Cisco Intersight, Intersight Managed Mode
- Operating temperature (X580p): 10 to 27 C
- Operating humidity (X580p): 5% to 93% non-condensing
- Operating altitude (X580p): 0 to 3000 m

FAQs

Q: Does the NVLink bridge need a licence?
A: No, the bridge itself needs no licence. The host X580p node managed in Intersight Managed Mode requires at least an Intersight Essentials licence per server.

Q: Which GPUs does this bridge work with?
A: It links two NVIDIA H200 NVL GPUs (UCSX-GPU-H200-NVL) installed in a Cisco UCS X580p PCIe Node.

Q: Does the bridge need separate power?
A: No. It is a passive component. Each paired H200 NVL GPU is rated at 600W.

Q: Which chassis and compute nodes does the X580p work with?
A: The X580p pairs with UCS X210c M8 and X215c M8 compute nodes in a UCS X9508 chassis with X9516 X-Fabric modules.

Q: How many GPUs can the X580p node hold?
A: It supports up to 4 air-cooled NVIDIA H200 NVL GPUs with NVLink Bridge support.
