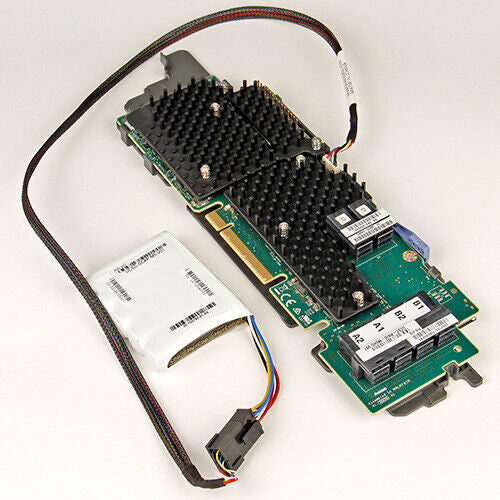

Cisco UCSC-RAID-M5HD | UCS C-Series M5 12G SAS RAID Controller, 4GB Cache
SKU:UCSC-RAID-M5HD
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCSC-RAID-M5HD is a Cisco 12G modular SAS RAID controller for the UCS C-Series M5 generation of rack servers. It provides hardware RAID for the SAS and SATA drives in the front drive bays, including the UCS C480 ML M5 deep learning server, where it is the internal RAID controller.
This SKU carries 4GB of cache, protected by a supercap power module, UCSC-SCAP-M5, which must be ordered with the controller. It supports RAID 0, 1, 5, 6, 10, 50 and 60, and can manage 1 to 24 internal SAS or SATA drives as listed for the UCS C480 ML M5. RAID 0, 1, 5, 6 and 10 can be pre-configured at the factory, while RAID 50 and 60 are supported after installation. Without a factory RAID option, disks are configured as JBOD.
The controller plugs into a dedicated PCIe slot on the server motherboard and takes its power from the server. It manages SAS and SATA drives only. NVMe drives are controlled directly from the CPU PCIe interfaces.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hardware RAID for front-bay SAS and SATA drives
- Supercap-protected 4GB write cache
- Factory pre-configuration of RAID 0, 1, 5, 6 and 10 available when ordering
- RAID 50 and 60 supported after installation
- 12Gb/s SAS interface for UCS C-Series M5 servers
- Powered from the server, no separate power supply needed
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSC-RAID-M5HD
- Controller type: 12Gb/s SAS modular RAID controller
- Cache: 4GB
- Cache backup: Supercap power module (UCSC-SCAP-M5), ordered with the controller
- Supported RAID levels: 0, 1, 5, 6, 10, 50, 60
- Factory-configurable RAID levels: 0, 1, 5, 6, 10
- Drive support: 1 to 24 internal SAS or SATA drives (as listed for UCS C480 ML M5)
- NVMe support: None, NVMe drives are controlled directly from the CPU PCIe interfaces
- Mounting: Internal, plugs into a dedicated PCIe slot on the server motherboard
- Default without a RAID option: Disks configured as JBOD
FAQs
Q: Does it need a supercap module?
A: Yes. The 4GB cache is backed up by the UCSC-SCAP-M5 supercap module, which must be ordered with the controller.
Q: Which RAID levels can be configured at the factory?
A: RAID 0, 1, 5, 6 and 10 can be pre-configured at the factory. RAID 50 and 60 are supported but not factory configurable. With no RAID option chosen, disks are configured as JBOD.
Q: Does it control NVMe drives?
A: No. It manages SAS and SATA drives only. NVMe drives are controlled directly from the CPU PCIe interfaces.
Q: Which servers does it suit?
A: It is for UCS C-Series M5 rack servers, and is the internal RAID controller in the UCS C480 ML M5. Check the Cisco spec sheet for your server to confirm support.
Q: How many drives can it manage?
A: It supports 1 to 24 internal SAS or SATA drives, as listed for the UCS C480 ML M5.
