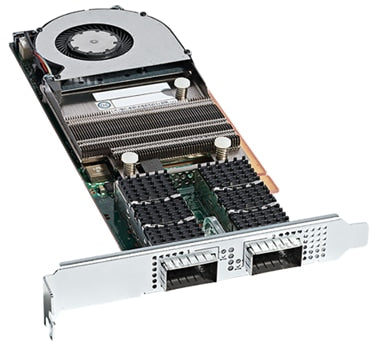

Cisco UCSC-P-V5D200G | UCS VIC 15235 Dual-Port 200G QSFP56 Adapter, M6, Secure Boot
SKU:UCSC-P-V5D200G
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS VIC 15235 is a dual-port PCIe virtual interface card from the Cisco UCS VIC 15000 Series, built for Cisco UCS C-Series M6 rack servers. This is the non -D ordering PID for M6 servers and it supports VIC Secure Boot. It presents PCIe-compliant interfaces to the host that can be dynamically configured as NICs or HBAs, making it suited to data centre servers that need high-bandwidth Ethernet or FCoE connectivity.
The card has 2 x QSFP/QSFP28/QSFP56 ports running 40, 100 or 200-Gbps Ethernet or FCoE per port, on a PCIe 4.0 x16 host interface. It is built around a Cisco UCS custom ASIC and delivers over 900,000 IOPS, with a maximum power consumption of 40.8 W drawn from the server PCIe slot. At 100G or 200G both ports must run the same speed. VIC Secure Boot is available from release 4.3(2), and UCSM, IMM or standalone CIMC 4.3(2) or later is the minimum software level.
The adapter connects to UCS Fabric Interconnects including FI 6536, 6332, 6332-16UP and 6664, or to Nexus 9000 top-of-rack switches. It is supported in C220 and C240 M6 and M7, C225 and C245 M6, and C225 and C245 M8 servers. It supports Cisco QSFP-40G, QSFP-100G and QSFP-200G-SR4-S and SL4 optics. Management is through Cisco IMC, UCS Manager or Intersight.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Policy-based, stateless, agile server infrastructure with dynamically configurable NICs and HBAs
- VIC Secure Boot verifies the integrity of VIC hardware and firmware at server boot
- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network
- usNIC low-latency technology for latency-sensitive workloads
- Hardware-based fabric failover for a redundant path to the fabric interconnect
- Advanced offloads including VXLAN, GENEVE, NVGRE, RoCEv2, NVMe over RoCEv2, NVMe-TCP, DPDK, NetFlow and RSS
- Fibre Channel and FCoE with FC-NVMe on RHEL, SLES and ESXi
- Centralised management through Cisco Intersight, IMC or UCS Manager
- SR-IOV capable hardware and lossless Ethernet via Priority Flow Control
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCSC-P-V5D200G
- Ports: 2 x QSFP/QSFP28/QSFP56
- Port speeds: 40/100/200-Gbps Ethernet or FCoE per port
- Host interface: PCIe 4.0 x16
- Form factor: PCIe card
- Controller: Cisco UCS custom ASIC
- Performance: over 900,000 IOPS
- Latency: usNIC as low as 1 microsecond in back-to-back VIC connections
- Secure Boot: VIC Secure Boot supported from release 4.3(2)
- Maximum power consumption: 40.8 W
- Dimensions (L x W x H): 7.17 x 2.35 x 0.85 in (approx. 182 x 60 x 22 mm)
- Jumbo frames: up to 9KB
- Minimum software: UCSM and IMM 4.3(2) or later, standalone CIMC 4.3(2) or later
- Server compatibility: C220 M6/M7, C240 M6/M7, C225 M6, C245 M6, C225 M8, C245 M8
- Fabric interconnects: FI 6652/6664, FI 6536, FI 6332/6332-16UP
- Standards: IEEE 802.3x, 802.1Q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, 802.3cd, 802.3ba/bj/bm, 802.3by, 802.3ae/ap, SCSI-FCP, T11 FCoE, PCI Express Gen 3 and Gen 4
FAQs
Q: Which servers is this SKU for?
A: UCSC-P-V5D200G is the non -D ordering PID for Cisco UCS M6 rack servers. The UCSC-P-V5D200G-D PID is the equivalent for M7 and M8 servers. The card is supported in C220 and C240 M6 and M7, and C225 and C245 M6 and M8 servers.
Q: Does it support Secure Boot?
A: Yes. VIC Secure Boot is supported on the VIC 15235 from release 4.3(2), and verifies the integrity of the VIC hardware and firmware at server boot.
Q: Does the adapter need a licence?
A: No licence is listed for the adapter itself. It is managed through Cisco IMC, UCS Manager or Intersight, and Intersight licensing is separate.
Q: Which switches and optics does it work with?
A: It connects to UCS FI 6536, 6332, 6332-16UP and 6664, and to Nexus 9000 top-of-rack switches. It supports Cisco QSFP-40G, QSFP-100G and QSFP-200G-SR4-S and SL4 optics. 200G operation needs release 4.3.5 on the listed switches.
Q: Can the two ports run at different speeds?
A: At 100G or 200G both ports must run the same speed. If one port is set to 40G, the other port may run at any of the three supported speeds.
Q: How much power does it draw?
A: The card is powered from the server PCIe slot and has a maximum power consumption of 40.8 W.
