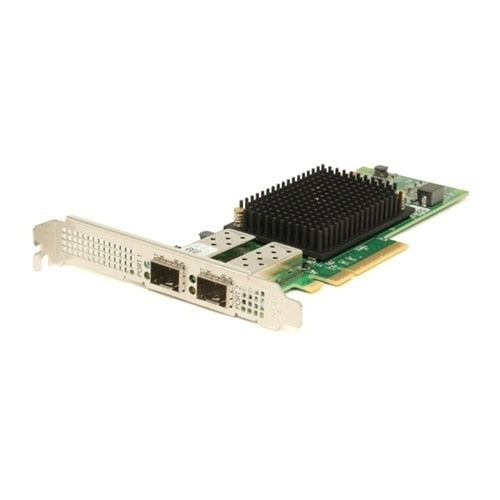

Cisco UCSC-P-B7D32GF | UCS C-Series 2-Port 32GFC Gen 7 FC HBA, Short-Wave
SKU:UCSC-P-B7D32GF
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Emulex LPe35002-M2 is a dual-port 32GFC Gen 7 Fibre Channel host bus adapter for Cisco UCS C-Series rack servers. It provides SAN connectivity for mission-critical, NVMe-ready data centre workloads, including all-flash array access, boot from SAN and connection to Cisco MDS 9000 fabrics.
It offers two 32GFC short-wave optical LC SFP+ ports that auto-negotiate down to 16GFC and 8GFC, on a PCIe 4.0 x8 host interface that is backward compatible with PCIe 3.0. Throughput reaches 12,800 MB/s full duplex across both ports with over 5 million IOPS, and the XE601 controller handles FCP (SCSI) and FC-NVMe concurrently. 32GFC runs over 0.5-70 m of OM3 or 0.5-100 m of OM4 and OM5 multimode fibre. No licence or subscription is needed for the HBA itself.
It is listed for Cisco UCS C220 and C240 M6 servers and for Cisco MDS 9148T, 9132T and 9396T 32G switches. Supported operating systems include Windows, RHEL, SLES, VMware vSphere, Oracle Linux, Citrix and Ubuntu. Long-wave LP32-LW-OPT-2 optics are available as an option for 10 km single-mode runs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Concurrent NVMe/FC and SCSI FCP support
- Up to 3x better latency and over 5M IOPS compared with the previous generation
- Firmware updates, queue depth changes and optics replacement without a server reboot
- Hot-swappable optics
- Silicon Root of Trust with digitally signed firmware, drivers and boot code
- Fabric Performance Impact Notifications (FPIN) support
- Boot from SAN and universal boot
- Emulex HBA Manager with GUI and CLI, SMI-S and HBA API support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: Emulex LPe35002-M2 (Cisco PID UCSC-P-B7D32GF)
- Ports: 2 x 32GFC short-wave optical LC SFP+
- Link speeds: 32GFC, 16GFC, 8GFC auto-negotiated
- Host interface: PCIe 4.0 x8, backward compatible with PCIe 3.0
- Controller: XE601
- Throughput: 12,800 MB/s full duplex (two 32GFC ports)
- IOPS: over 5 million
- Architecture: Emulex Dynamic Multi-core, 8 cores and 16 threads
- Protocols: FCP (SCSI) and FC-NVMe (NVMe/FC), concurrent
- Data rates: 28.05 Gb/s (32GFC), 14.025 Gb/s (16GFC), 8.5 Gb/s (8GFC)
- Cabling at 32GFC: 0.5-70 m on OM3, 0.5-100 m on OM4 and OM5 multimode fibre
- Long-wave option: 10 km at 32GFC/16GFC on single-mode fibre with LP32-LW-OPT-2
- Virtualisation: NPIV
- Security: Silicon Root of Trust (NIST 800-193), signed firmware, Secure Boot, T10 DIF/PI
- Form factor: Short, low-profile PCIe card
- Dimensions (L x W): 167.64 x 68.91 mm
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 85 C
- Relative humidity: 5% to 95% non-condensing
- MTBF: 10 million hours
- Power: Drawn from the host PCIe slot, 200 LFM airflow required for PCIe 4.0 operation
FAQs
Q: Does this HBA need a licence or subscription?
A: No. No licence or subscription is required for the HBA itself.
Q: Does it need external power?
A: No. It is powered from the host PCIe slot. For PCIe 4.0 operation the server must provide at least 200 LFM of airflow.
Q: Which Cisco servers and switches is it listed for?
A: It is listed for Cisco UCS C220 and C240 M6 servers, and for Cisco MDS 9148T, 9132T and 9396T 32G switches. Check the Cisco UCS HCL for the current server list.
Q: Can it connect to older 16G or 8G Fibre Channel fabrics?
A: Yes. The ports auto-negotiate 32GFC, 16GFC and 8GFC, so it works with older fabrics.
Q: Can it reach beyond the short-wave multimode distances?
A: Yes. With the optional long-wave LP32-LW-OPT-2 transceivers it supports 10 km at 32GFC and 16GFC over single-mode fibre.
