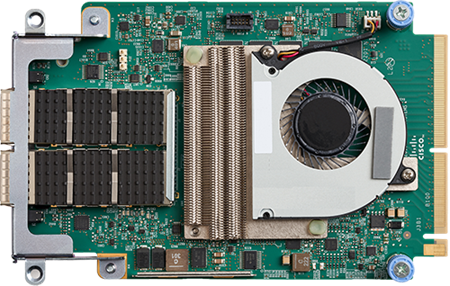

Cisco UCSC-M-V5D200GV2 | UCS VIC 15237 Dual-Port 40/100/200G mLOM, Secure Boot
SKU:UCSC-M-V5D200GV2
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS VIC 15237 is a dual-port virtual interface card in the Cisco UCS VIC 15000 series, built for UCS C-Series M6 rack servers. It installs in the server's mLOM slot and consolidates LAN and SAN traffic onto a single adapter, making it suited to virtualisation, low-latency and NVMe-oF workloads. It can be managed through Cisco Intersight or UCS Manager behind a fabric interconnect, or standalone via Cisco IMC behind Nexus 9000 top-of-rack switches.
The card provides two QSFP/QSFP28/QSFP56 ports running 40/100/200-Gbps Ethernet or FCoE over a PCIe 4.0 x16 interface. It presents up to 512 virtual adapters and interfaces (NICs and HBAs) to the host, supports jumbo frames up to 9KB, and adds VIC Secure Boot to verify the integrity of the card's hardware and firmware when the server boots. Maximum power draw is 34.4 W, supplied from the server's mLOM slot. If 100G or 200G is used, both ports must run at the same speed.
It is compatible with UCS C220 M6, C240 M6, C225 M6 and C245 M6 servers and connects to UCS FI-6536, 6332, 6332-16UP and 6664 fabric interconnects or supported Nexus 9000 switches. The minimum UCSM/IMM release is 4.3(2c). Genuine Cisco QSFP-40G, QSFP-100G and QSFP-200G optics and Cisco passive and active optical cables are supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- PCIe 4.0 x16 interface delivering up to 200 Gb/s throughput
- VIC Secure Boot verifies VIC hardware and firmware integrity when the server boots
- 512 virtual NICs and HBAs presented to the host without requiring SR-IOV support from the OS or hypervisor
- Cisco SingleConnect carries LAN, SAN and management traffic over a single unified network
- Centralised management via Cisco Intersight, UCS Manager or Cisco IMC
- usNIC low-latency technology, DPDK, NetFlow, NPIV, iSCSI boot, RoCEv2 and NVMe-TCP support
- VXLAN, GENEVE and NVGRE offload with hardware-based fabric failover
- Priority Flow Control for lossless Ethernet, plus FC-NVMe support
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 2 x QSFP/QSFP28/QSFP56
- Port speeds: 40/100/200-Gbps Ethernet or FCoE
- Form factor: mLOM
- Host interface: PCIe 4.0 x16 (PCIe Gen 3 and Gen 4 standards)
- Virtual adapters and interfaces: up to 512
- Security: VIC Secure Boot
- Latency: usNIC as low as 1 microsecond in back-to-back VIC connections
- Performance: over 900,000 IOPS
- Jumbo frames: up to 9KB
- Maximum power consumption: 34.4 W
- Dimensions (L x W x H): 6.28 x 3.94 x 0.74 in (approx. 159.5 x 100.1 x 18.8 mm)
- Minimum management release: UCSM/IMM 4.3(2c)
- Supported servers: UCS C220 M6, C240 M6, C225 M6, C245 M6
- Supported fabric interconnects: FI 6664, FI 6536, FI 6332-16UP, FI 6332
- Standards: IEEE 802.3x, 802.1Q VLAN, 802.1p, 802.1Qaz, 802.1Qbb, 802.3cd, 802.3ba/bj/bm, 802.3by, 802.3ae/ap, T11 FCoE
FAQs
Q: Which servers is the UCSC-M-V5D200GV2 for?
A: It is the M6 ordering PID for Cisco UCS C-Series rack servers, including the C220 M6, C240 M6, C225 M6 and C245 M6. The equivalent card for M7 and M8 servers uses the -D suffix PID.
Q: Does this card need a licence?
A: No licence is required for the adapter itself. Management through Cisco UCS Manager, IMC or Intersight carries its own licensing.
Q: Can both ports run at different speeds?
A: If 100G or 200G is used, both ports must run at the same speed. If one port is set to 40G, the other can run at any supported speed.
Q: Which optics and cables work with it?
A: Genuine Cisco QSFP-40G optics (SR4, CSR4, LR4, BiDi), QSFP-100G optics (SR4-S, SL4, LR4-S, DR-S, FR-S, CWDM4, PSM4, SR-BiDi, SR1.2) and QSFP-200G-SR4-S or QSFP-200G-SL4. Cisco passive and active optical cables are also supported.
Q: What switches and software release does it need?
A: It connects to UCS FI-6664, FI-6536, FI-6332-16UP and FI-6332 fabric interconnects or supported Nexus 9000 switches, with a minimum UCSM/IMM release of 4.3(2c). Running 200G on the listed GX-series switches needs release 4.3.5.
Q: How much power does it draw?
A: Maximum power consumption is 34.4 W, supplied by the server's mLOM slot, so no separate power supply is needed.
