Cisco

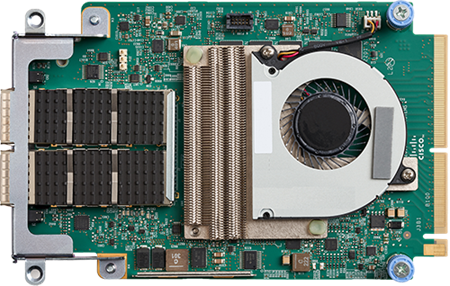

Cisco UCSC-M-V5D200G | UCS VIC 15238 Dual-Port 40/100/200G mLOM Adapter

SKU:UCSC-M-V5D200G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS VIC 15238 is a dual-port Virtual Interface Card in the mLOM form factor for Cisco UCS C-Series M6 rack servers, part of the UCS Virtual Interface Card 15000 Series. It suits virtualised and bare-metal data centre servers that need high-bandwidth, low-latency connectivity, converged LAN and SAN (FCoE) traffic, and NVMe over Fabrics.

The card provides 2 x QSFP/QSFP28/QSFP56 ports running 40, 100 or 200 Gbps Ethernet or FCoE per port, over a PCIe 4.0 x16 mLOM interface. It presents up to 512 virtual interfaces to the host, each configurable dynamically as a NIC or HBA, and supports jumbo frames up to 9KB. Maximum power consumption is 34.4 W, drawn through the server mLOM slot. If 100G or 200G is used, both ports must run at the same speed. If one port is set to 40G, the other can run at any supported speed. This SKU is the M6 version, for C220 M6, C240 M6, C225 M6 and C245 M6 servers.

It connects with Cisco-supported 40/100/200G QSFP transceivers and cables such as QSFP-40G-SR4, QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-200G-SR4-S and QSFP-200G-SL4. Management is through Cisco UCS Manager, Cisco IMC or Cisco Intersight.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stateless and agile design with the card personality set dynamically at boot
- Dynamically configurable as NICs or HBAs
- Cisco SingleConnect carries LAN, SAN and management traffic over one unified network
- Hardware-based fabric failover
- Priority Flow Control for lossless Ethernet
- usNIC, DPDK, NetFlow, NPIV, RoCEv2, NVMe-TCP and VXLAN/NVGRE/GENEVE offloads
- Fibre Channel and FCoE support, with FC-NVMe on RHEL, SLES and ESXi
- Operating system support includes VMware vSphere, Windows Server, RHEL, SLES, Ubuntu and Citrix XenServer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: UCSC-M-V5D200G
- Model: Cisco UCS VIC 15238
- Form factor: mLOM
- Host interface: PCIe 4.0 x16
- Ports: 2 x QSFP/QSFP28/QSFP56
- Speed per port: 40/100/200 Gbps Ethernet or FCoE
- Virtual adapters and interfaces: 512
- Jumbo frames: Up to 9KB
- I/O performance: Over 900,000 IOPS
- Latency: usNIC as low as 1 microsecond back-to-back
- Maximum power consumption: 34.4 W
- Dimensions (L x W x H): 6.28 x 3.94 x 0.74 in
- Supported servers: C220 M6, C240 M6, C225 M6, C245 M6
- Supported fabric interconnects: FI 6652/6664, FI 6536, FI 6332/6332-16UP
- Management: UCS Manager, Cisco IMC or Cisco Intersight
- Recommended software: UCSM/IMM 4.2(3) or later, standalone CIMC 4.2(3)

FAQs

Q: Which servers is this adapter for?
A: UCSC-M-V5D200G is the M6 version of the VIC 15238, for Cisco UCS C220 M6, C240 M6, C225 M6 and C245 M6 rack servers.

Q: Does the card need a licence?
A: No licence is listed for the adapter itself. It is managed through Cisco UCS Manager, Cisco IMC or Cisco Intersight.

Q: Can the two ports run at different speeds?
A: If 100G or 200G is used, both ports must run at the same speed. If one port is set to 40G, the other can run at any supported speed.

Q: Which transceivers and cables does it work with?
A: It works with Cisco-supported 40/100/200G QSFP optics and cables such as QSFP-40G-SR4, QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-200G-SR4-S and QSFP-200G-SL4.

Q: How much power does it draw?
A: Maximum power consumption is 34.4 W, supplied through the server mLOM slot.
