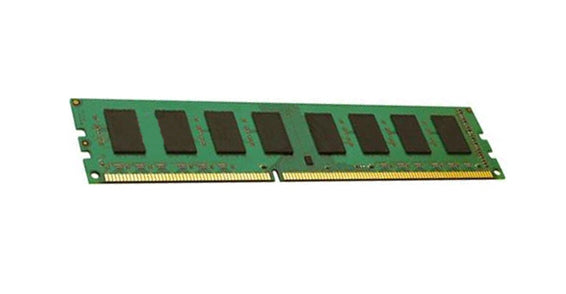

Cisco UCS-ML-1X644RV-A | UCS M4 64GB DDR4-2400 LRDIMM Memory, Quad Rank x4
SKU:UCS-ML-1X644RV-A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco UCS M4 server memory module is a 64GB DDR4-2400 load-reduced DIMM (LRDIMM) with ECC protection. It is designed for high-capacity memory expansion on Cisco UCS M4-generation blade and rack servers, making it a practical choice for virtualisation and data-centre workloads that need more RAM per socket.
The module is PC4-19200 class, quad rank with an x4 DRAM organisation, and runs at 1.2V. On a UCS B420 M4 with a 2400MHz Xeon E5-4600 v4 CPU, it runs at 2400MHz with one or two DIMMs per channel and drops to 2133MHz at three DIMMs per channel. Quad-rank LRDIMM construction allows large per-DIMM capacity while keeping the electrical load on the memory bus low.
It works with Cisco UCS M4-generation servers using Intel Xeon E5-2600 and E5-4600 v3/v4 processors, and is listed as a supported 2400MHz DIMM option for the UCS B420 M4. RDIMMs and LRDIMMs cannot be mixed in the same server, DIMM capacities cannot be mixed within a bank, and DIMMs must be installed in bank order.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Load-reduced DIMM design for high-capacity memory configurations on UCS M4 servers
- ECC protection for improved data integrity
- Low 1.2V DDR4 operation
- Quad-rank x4 organisation for dense 64GB capacity per module
- Supported on Cisco UCS B-Series blades such as the B420 M4
- Suited to virtualisation and data-centre memory expansion
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: UCS-ML-1X644RV-A
- Description: 64GB DDR4-2400-MHz LRDIMM/PC4-19200/quad rank/x4/1.2v
- Capacity: 64GB
- Memory type: DDR4 load-reduced DIMM (LRDIMM), ECC
- Speed: DDR4-2400MHz (PC4-19200)
- Ranks per DIMM: 4 (quad rank)
- DRAM organisation: x4
- Voltage: 1.2V
- Speed at 1 or 2 DPC (UCS B420 M4 with 2400MHz E5-4600 v4 CPU): 2400MHz
- Speed at 3 DPC (UCS B420 M4 with 2400MHz E5-4600 v4 CPU): 2133MHz
- Population rule: RDIMMs and LRDIMMs cannot be mixed in the same server
- Population rule: DIMM capacities cannot be mixed within a bank
FAQs
Q: Which servers is this memory compatible with?
A: It is intended for Cisco UCS M4-generation servers using Intel Xeon E5-2600 or E5-4600 v3/v4 CPUs. Cisco lists it as a supported 2400MHz DIMM option for the UCS B420 M4 blade.
Q: Can I mix this LRDIMM with RDIMMs in the same server?
A: No. RDIMMs and LRDIMMs cannot be mixed in the same server. DIMM capacities also cannot be mixed within a bank.
Q: Will it run at the full 2400MHz?
A: On a UCS B420 M4 with a 2400MHz Xeon E5-4600 v4 CPU, it runs at 2400MHz with one or two DIMMs per channel. At three DIMMs per channel the speed drops to 2133MHz.
Q: What is the difference between this and other UCS 64GB DIMMs?
A: This SKU is a 64GB DDR4-2400 LRDIMM with a quad-rank x4 organisation at 1.2V. Other UCS memory part numbers differ by capacity, speed, module type or rank configuration.
Q: How should the DIMMs be installed?
A: DIMMs must be installed in bank order, filling Bank 1 first, then Bank 2, then Bank 3.
