Cisco

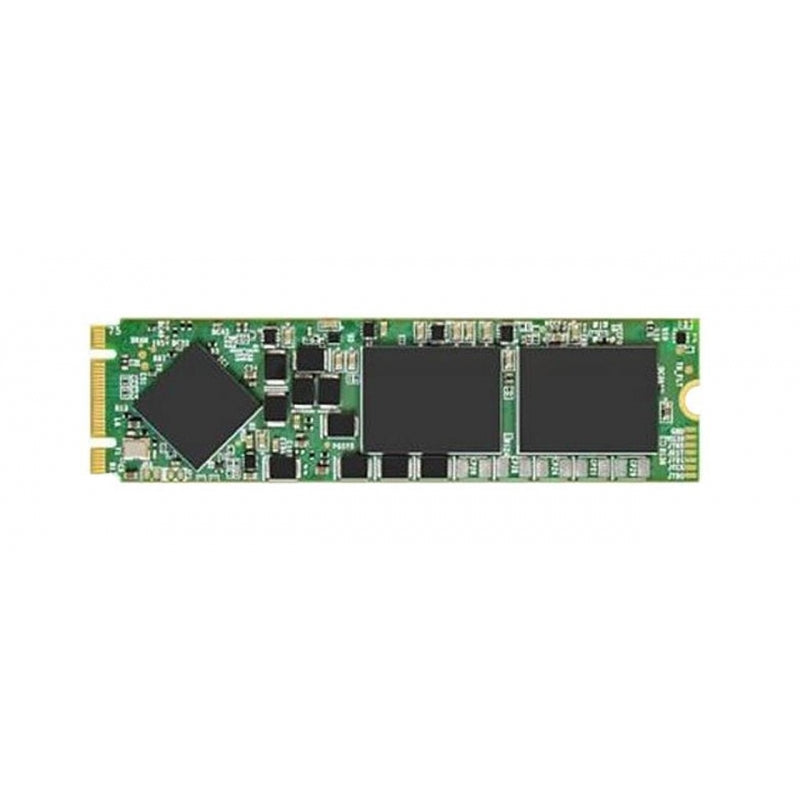

Cisco UCS-M2480OA1V | UCS 480GB M.2 SATA Boot SSD, Solidigm S4520

SKU:UCS-M2480OA1V

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS-M2480OA1V is a 480GB M.2 SATA solid-state drive built on the Solidigm S4520, designed as a dedicated boot and OS drive for Cisco UCS servers. It suits rack servers and hyperconverged nodes where the operating system or hypervisor is kept on its own small, reliable drive, separate from production data storage.

The drive uses a SATA 6Gb/s interface in the M.2 form factor and is a read-optimised, 1X endurance enterprise part. It is the successor to the earlier Intel-based 480GB M.2 boot SSD, UCS-M2-I480GB-D. It draws power through the host M.2 slot or the Cisco boot-optimised M.2 module, so no separate power supply is needed.

It installs in the UCS boot-optimised M.2 module, either singly or as a RAID-1 mirrored pair when used with the Cisco boot-optimised M.2 RAID controller. Drives in the module should be the same capacity, as mixing capacities is not supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Boot-optimised M.2 SATA SSD for UCS servers
- Solidigm S4520 enterprise-class NAND
- 1X endurance, read-optimised for OS and hypervisor workloads
- Pairs with the Cisco boot-optimised M.2 RAID controller for mirrored boot drives
- Keeps the operating system separate from data storage drives
- Draws power from the M.2 slot, no separate supply needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Cisco PID: UCS-M2480OA1V
- Capacity: 480GB
- Interface: SATA 6Gb/s
- Form factor: M.2
- Drive: Solidigm S4520
- Endurance class: 1X, read-optimised
- Intended use: Server boot / OS drive
- Power: Supplied through the host M.2 slot or boot-optimised M.2 module
- Predecessor PID: UCS-M2-I480GB-D

FAQs

Q: What is this drive used for?
A: It is a dedicated boot and OS drive for Cisco UCS rack servers and hyperconverged nodes, installed in the boot-optimised M.2 module.

Q: Can I mirror two of these drives?
A: Yes. Two drives can be installed as a RAID-1 mirrored pair when used with the Cisco boot-optimised M.2 RAID controller.

Q: Can I mix different capacity M.2 drives in the same module?
A: No. Mixing different capacities in the boot-optimised M.2 module is not supported, so use matching drives.

Q: Does it need a separate power connection?
A: No. It is powered through the host M.2 slot or the Cisco boot-optimised M.2 module.

Q: What does this drive replace?
A: It is the successor to the Intel-based 480GB M.2 boot SSD, UCS-M2-I480GB-D, and is built on the Solidigm S4520.
