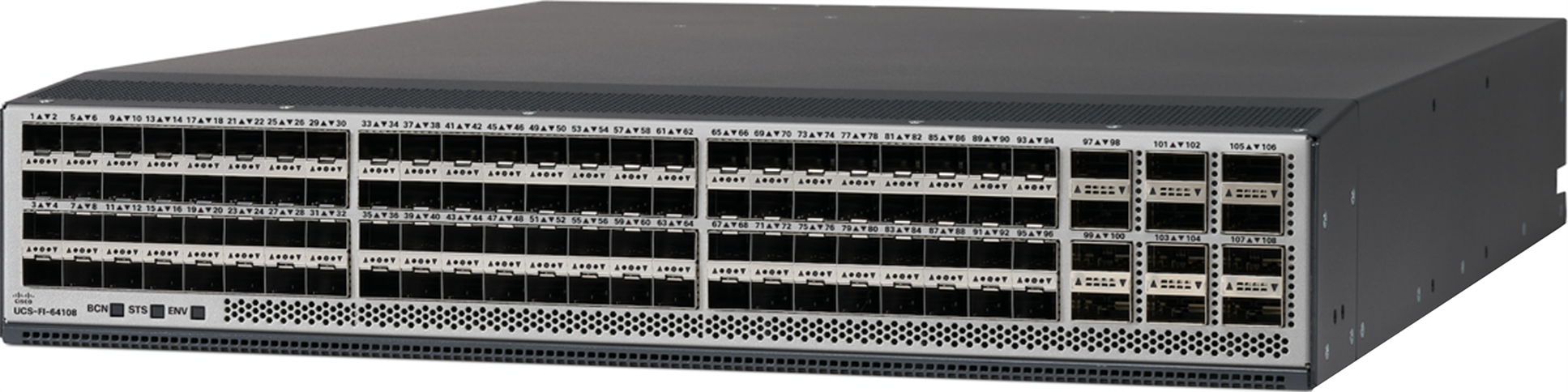

Cisco UCS-FI-64108-D-U | UCS 6400 108-Port 10/25G Fabric Interconnect, 2RU
SKU:UCS-FI-64108-D-U
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS 64108 is a 2RU top-of-rack fabric interconnect from the UCS 6400 Series, built for Cisco UCS data-centre deployments. It provides line-rate, low-latency, lossless 10/25/40/100GbE, FCoE and Fibre Channel connectivity, and acts as the single management domain for attached UCS B-Series blade, C-Series rack and S-Series storage servers through Cisco UCS Manager.
This D-U variant has 108 fixed ports: 96 x 10/25-Gbps SFP28 and 12 x 40/100-Gbps QSFP28. Ports 1 to 16 are unified ports that can be set to 10/25GbE or 8/16/32G Fibre Channel. Switching throughput is 7.42 Tbps with a Layer 2 forwarding rate of 2.8 billion packets per second, and the cut-through architecture keeps latency under 1 microsecond. This variant includes 36 x 10/25G and 4 x 40/100G port licences, with further ports added using UCS-L-6400-25G and UCS-L-6400-100G licences.
The chassis takes two hot-swappable AC or DC power supplies in 1+1 redundancy and three fan modules in 2+1 redundancy. It supports SFP28 and SFP+ optics and Twinax cables on the lower ports, and QSFP28 optics on ports 97 to 108, which also support breakout cabling for direct-connect rack servers.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel
- Cut-through architecture with latency under 1 microsecond
- Unified ports configurable as 10/25GbE or 8/16/32G Fibre Channel
- Ethernet switch mode and Fibre Channel switch mode
- Unified fabric with FCoE for I/O consolidation, reducing NICs, HBAs, switches and cables
- Priority-based Flow Control (802.1Qbb) and Enhanced Transmission Selection (802.1Qaz)
- Jumbo frames up to 9216 bytes on all ports
- Hot-swappable power supplies, fan modules and expansion modules with 1+1 power and N+1 fan redundancy
- Single management domain through Cisco UCS Manager
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2RU, 19-inch rack mount
- Fixed ports: 108 (96 x 10/25-Gbps SFP28 and 12 x 40/100-Gbps QSFP28)
- Unified ports: up to 16 (ports 1-16), configurable as 10/25GbE or 8/16/32G Fibre Channel
- 1-Gbps Ethernet ports: up to 8 (ports 89-96)
- 40/100-Gbps Ethernet ports: 12 (ports 97-108)
- Downlink speeds: 1/10/25-Gbps Ethernet/FCoE, 8/16/32-Gbps Fibre Channel
- Throughput: 7.42 Tbps
- Layer 2 forwarding rate: 2.8 billion packets per second
- MAC address table entries: 32,000
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Power supplies: up to 2 identical AC or DC, hot-swappable
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Fans: 3 (2+1 redundancy)
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight (with two PSUs, expansion modules and fans): 16.27 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- RoHS compliant
FAQs
Q: Does the UCS 64108 need port licences?
A: Yes. Port licences are required to enable ports. This variant includes 36 x 10/25G and 4 x 40/100G port licences. Additional ports are licensed with UCS-L-6400-25G for 10/25G and Fibre Channel ports, and UCS-L-6400-100G for 40/100G ports.
Q: What power supplies does it use?
A: It takes two hot-swappable power supplies in 1+1 redundancy, either AC or DC. The AC option is UCS-PSU-64108-AC. Typical operating power is 404 W, with a maximum of 1200 W on AC or 930 W on DC.
Q: Which optics and cables work with it?
A: The SFP28 ports support SFP28 and SFP+ optics and Twinax cables for 10/25G. The 40/100G ports support QSFP28 optics, and ports 97 to 108 also support breakout cables to connect to Nexus 9K switches or direct-connect rack servers at 10/25G.
Q: Which servers can it manage?
A: It manages Cisco UCS B-Series blade servers through the UCS 5108 chassis, UCS-managed C-Series rack servers and S-Series storage servers, all through Cisco UCS Manager.
Q: How many ports can run Fibre Channel?
A: Up to 16 unified ports, ports 1 to 16, can be configured as 8/16/32G Fibre Channel. All other ports run Ethernet and FCoE.
