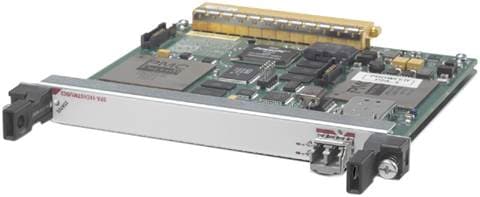

• Cisco SPA-1CHSTM1/OC3V2W silver server rack module with SFP slots
1 1

Cisco

Cisco SPA-1CHSTM1/OC3V2W | 1x OC-3/STM-1 (155M) channelized, v2 hardware (W variant) | ATM + Circuit Emulation | SFP (OC-3/STM-1), LC; wavelength/reach per SFP | Channelizes to DS1/E1/DS0 (up to 84 T1 / 63 E1) | SIP/SPA router module

SPA-1CHSTM1/OC3V2W

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

V2 1-port channelized OC-3/STM-1 SPA offering ATM and circuit emulation with the W variant for platform-aligned ordering. Leverages SFP-based OC-3/STM-1 optics to meet short to long-reach requirements. Enables DS1/E1/DS0 channelization for high-density TDM aggregation over a single SONET/SDH interface.

Features

- V2 hardware with W variant flexibility
- Channelized OC-3/STM-1 for DS1/E1/DS0 services
- ATM + circuit emulation on SONET/SDH
- SFP-based optics for adaptable link distances
- Hot-swappable design for service continuity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Hardware revision: Version 2 (v2) SPA, W variant
- Port count: 1x OC-3/STM-1 (155.52 Mb/s) channelized
- Standards: SONET OC-3 / SDH STM-1; ATM; Circuit Emulation (CES)
- Channelization: DS1/E1/DS0 granularity (up to 84 T1 or 63 E1; up to 2016 DS0s)
- Optics: OC-3/STM-1 SFP; LC connector; wavelength/reach per SFP
- Mapping: VT/VC channelized operation for DS1/E1/DS0 services
- Hardware type: Shared Port Adapter (SPA) for SIP-based router slots
- Throughput: Line-rate 155 Mb/s on the port
- Hot-swappable: Yes, in supported chassis
- Variant note: W variant aligns with specific platform/ordering requirements

FAQs

Q: How does the W variant differ from the standard v2?
A: Functionally similar for OC-3/STM-1 channelized, ATM, and CES; the W variant aligns to specific platform or ordering requirements.

Q: Which SFP optics are compatible?
A: OC-3/STM-1 SFPs for MMF or SMF. Select SR/IR/LR based on distance; wavelength and reach are SFP-dependent.

Q: Does it support DS0 channelization?
A: Yes. Up to 84 T1 or 63 E1 equivalents (up to 2016 DS0s).

Q: Is any special license required?
A: No SPA-specific license is typically needed; ensure your router has appropriate feature licensing if applicable.

Q: Is the module hot-swappable?
A: Yes, when used in a supported SIP-based chassis.
