Cisco

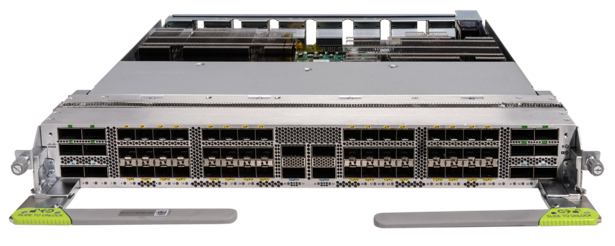

Cisco 88-LC1-48Y8H-EM | 8800 Line Card, 48x SFP28, 8x QSFP28, 8x QSFP56-DD, 4.8T

SKU:88-LC1-48Y8H-EM

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 88-LC1-48Y8H-EM is a third-generation service edge line card for the Cisco 8800 Series, built on the Cisco Silicon One K100 NPU. It is aimed at high-scale IP core, aggregation and network-edge roles in Cisco 8800 distributed systems, consolidating traffic and services from 1 GbE to 400 GbE.

The card provides 48 SFP28 ports, 8 QSFP28 ports and 8 QSFP56-DD ports, with 4.8 Tbps of aggregate capacity. Port rates are flexible across 400, 100, 40, 25, 10 and 1 GbE, MACsec runs at line rate on every port, and PTP timing delivers Class C performance. It also supports 400 GbE DCO optics for routed optical network designs. The host subsystem has an 8-core x86-64 CPU, 64 GB DRAM and a 480 GB SSD.

It works only in Cisco 8808 (8-slot) and 8804 (4-slot) systems and needs the 8800-RP2 route processor with 8808-FC1 or 8804-FC1 fabric cards. It cannot coexist with Q200-based line cards in the same system and requires Cisco IOS XR Release 26.3.1 or later. The hardware PID does not include a software tier, so Cisco 8000 software licensing is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-class, modular and patchable Cisco IOS XR Software
- Pluggable interfaces accept SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP28-DD, QSFP56 and QSFP56-DD optics
- Flexible port speeds from 1 to 400 GbE
- Segment Routing (SR, SRv6) and EVPN programmability
- Automation and closed-loop optimisation through Cisco Crosswork Network Automation
- Deep buffering and high-scale routing for service termination
- Routed optical network architecture ready with 400 GbE DCO support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product ID: 88-LC1-48Y8H-EM
- Ports: 48 x SFP28, 8 x QSFP28, 8 x QSFP56-DD
- Capacity: 4.8 Tbps
- Processor: Cisco Silicon One K100 NPU (7 nm)
- Host CPU, memory and storage: 8-core x86-64 CPU, 64 GB DRAM, 480 GB SSD
- Timing: PTP with Class C performance
- Port rates: 400, 100, 40, 25, 10 and 1 GbE
- Coherent optics: 400 GbE DCO supported
- Encryption: MACsec on all ports at line rate
- Required components: 8800-RP2 route processor, 8808-FC1 or 8804-FC1 fabric cards
- Chassis support: Cisco 8808 (8-slot) and 8804 (4-slot)
- Minimum software: Cisco IOS XR Release 26.3.1
- Height: 5.33 cm / 2.10 in
- Width: 45.97 cm / 18.10 in
- Length: 45.24 cm / 17.81 in
- Weight: 10.70 kg / 23.56 lb
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 5% to 95%
- Altitude: 0 to 3000 m
- Safety: AS/NZS 62368-1, UL/EN/IEC 62368-1
- EMC emissions: FCC 47CFR15 Class A, AS/NZS CISPR 32 Class A, EN55032 Class A
- NEBS: designed to meet GR-63-CORE and GR-1089-CORE

FAQs

Q: Does this line card need a software licence?
A: Yes. The hardware PID does not include a software tier. Cisco 8000 software is licensed through the Flexible Consumption Model 2.0 (Type B Device SIA plus Essential, Advantage or Premium RTU licences) or the perpetual Type B model (8KSW-ESS-B-P, 8KSW-ADN-B-P or 8KSW-PRM-B-P).

Q: Which chassis and supporting hardware does it work with?
A: It works in Cisco 8808-SYS (8-slot) and 8804-SYS (4-slot) systems. It needs the 8800-RP2 route processor and third-generation fabric cards, 8808-FC1 for the 8808 and 8804-FC1 for the 8804.

Q: Can it be mixed with other 8800 line cards?
A: It cannot be used in the same system as Q200-based line cards. It is part of the third-generation, Silicon One K100 line card family.

Q: Which optics does it accept?
A: The ports accept SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP28-DD, QSFP56 and QSFP56-DD optics, plus 400 GbE DCO optics. Port rates range from 1 GbE to 400 GbE.

Q: Which software release does it require?
A: The card requires Cisco IOS XR Release 26.3.1 or later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
