Cisco

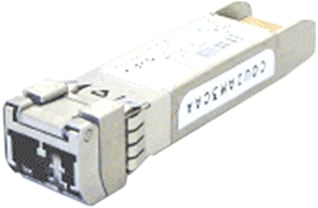

Cisco SFP-10G-ZR-I | 10G SFP+ ZR Transceiver, SMF, 70km, Industrial Temp

SKU:SFP-10G-ZR-I

$16,495.00 inc. GST
$14,995.45 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10G-ZR-I is an industrial-temperature multirate 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e SFP+ transceiver from the Cisco 10GBASE SFP+ module range. It is built for long-haul 10G Ethernet and OTN links over single-mode fibre in harsh or outdoor environments, such as metro, campus-backbone and carrier links.

It operates at 1550 nm over G.652 single-mode fibre with a dual LC/PC connector and a maximum reach of 70 km. The transmitter delivers 0 to +4.0 dBm average output power, and receiver sensitivity is -24 dBm for 10GE non-FEC traffic and -27 dBm for OTU2/OTU2e with FEC. Maximum power draw is 2 W from the host port, and the module is rated for -40 to 85 C operation with cold-start capability. Optical traffic is not supported between -40 and -28 C during a cold start. A limiting receiver means no EDC PHY is needed on the host board, so it fits any SFP+ port.

Short links need optical attenuation: 15 dB under 5 km, 10 dB for 5 to 25 km and 5 dB for 25 to 45 km. Pair it with the Cisco 15216 ATT LC 5, 10 or 15 attenuators. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multirate support for 10GBASE-ZR, 10GBASE-ZW and OTU2/OTU2e
- Limiting electrical receiver, no EDC PHY required on the host board
- Industrial temperature range of -40 to 85 C with cold-start capability
- Low-speed features such as DOM and I2C stay operational during cold start from -40 to -28 C
- Plugs into any SFP+ port
- Dual LC/PC connector for G.652 single-mode fibre

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Product ID: SFP-10G-ZR-I
- Form factor: SFP+
- Standards: 10GBASE-ZR, 10GBASE-ZW, OTU2, OTU2e multirate
- Wavelength: 1550 nm nominal
- Transmitter wavelength: 1530 to 1565 nm
- Fibre type: Single-mode, G.652
- Maximum reach: 70 km
- Connector: Dual LC/PC
- Transmitter output power: 0 to +4.0 dBm average
- Side-mode suppression ratio: 30 dB min
- Transmitter extinction ratio: 9 dB min
- Receiver sensitivity (10GE, non-FEC): -24 dBm
- Receiver sensitivity (OTU2/OTU2e, FEC): -27 dBm
- Receiver overload: -7 dBm
- Receiver damage threshold: +5 dBm
- Maximum chromatic dispersion: 1400 ps/nm
- Maximum power consumption: 2 W
- Operating temperature: -40 to 85 C (fully operational -28 to 85 C)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Bail latch colour: Green

Also Known As

SFP-10G-ZR-I=

FAQs

Q: Does this transceiver need a licence?
A: No. No licence or subscription is required. It draws a maximum of 2 W from the host SFP+ port.

Q: Do I need attenuators on short fibre runs?
A: Yes. A 15 dB attenuator is needed if the link is under 5 km, 10 dB for 5 to 25 km and 5 dB for 25 to 45 km. Cisco 15216 ATT LC 5=, 10= and 15= attenuators are used for this.

Q: Which platforms support the SFP-10G-ZR-I?
A: It is supported on many Cisco platforms, including Catalyst, Nexus, ASR, CRS, MDS 9000, NCS 6000, UCS and ME series. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your platform and software.

Q: What fibre does it use?
A: G.652 single-mode fibre with dual LC connectors, operating at 1550 nm.

Q: How does the -I version differ from the standard ZR module?
A: The -I version is rated for industrial temperatures of -40 to 85 C, with cold-start capability. Optical traffic is not supported from -40 to -28 C during a cold start.
