Cisco

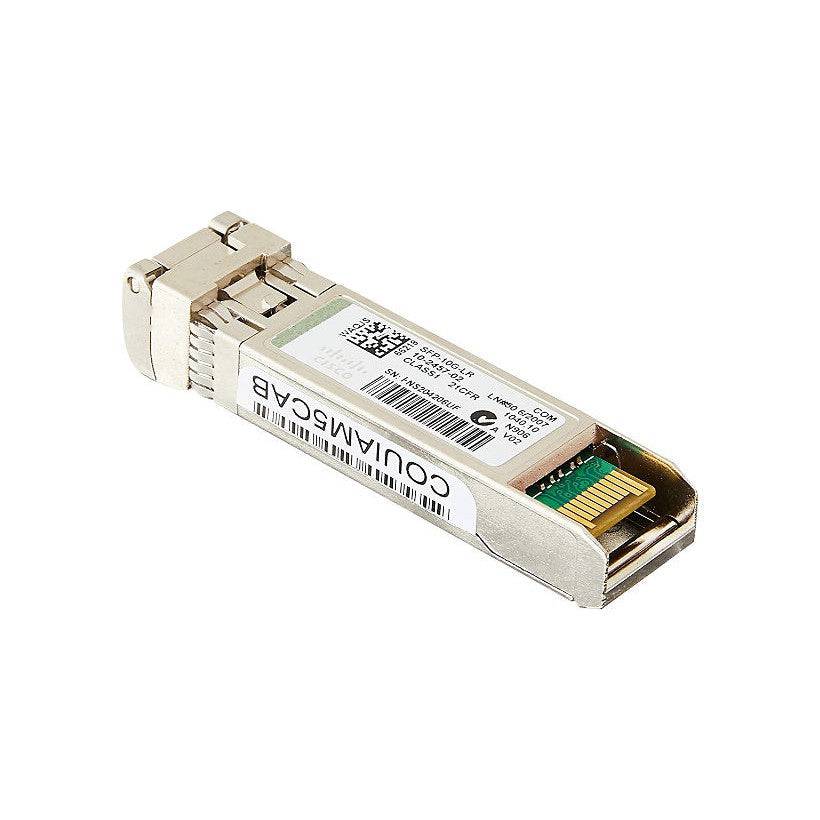

Cisco SFP-10G-LR-S | 10G SFP+ Transceiver, SMF, 10km, S-Class

SKU:SFP-10G-LR-S

$1,001.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10G-LR-S is a hot-swappable 10GBASE-LR SFP+ optical transceiver for standard single-mode fibre. It suits 10 Gigabit Ethernet links up to 10 km, such as campus backbone, building-to-building and data centre or enterprise uplinks. This is the S-Class (enterprise-class) variant, which does not support FCoE.

The module runs at 10 Gbps on a 1310 nm wavelength over G.652 single-mode fibre, with a dual LC/PC connector. Transmit power ranges from -8.2 dBm to 0.5 dBm and receive power from -14.4 dBm to 0.5 dBm. Maximum power consumption is 1 W, drawn from the host SFP+ port. It operates across the commercial temperature range of 0 to 70 C and includes digital optical monitoring for diagnostics. No licence or subscription is required.

It fits Cisco switches and routers with SFP+ ports and interoperates with other 10GBASE-LR optics such as SFP-10G-LR and SFP-10G-LR-X over single-mode fibre. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for supported platforms and software versions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Smallest 10G form factor for the greatest port density per chassis
- Hot-swappable into the SFP+ port of a Cisco switch without powering down
- Digital optical monitoring for diagnostics
- Optically interoperable with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID lets the host platform identify a certified, Cisco-tested module
- Supports a pay-as-you-populate model for investment protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Standard: 10GBASE-LR
- Data rate: 10 Gbps
- Form factor: SFP+
- Wavelength: 1310 nm (receive and transmit range 1260 to 1355 nm)
- Fibre type: Single-mode fibre (G.652)
- Maximum reach: 10 km
- Minimum cabling distance: 2 m
- Connector: Dual LC/PC (PC or UPC patch cords only, APC not supported)
- Transmit power: -8.2 to 0.5 dBm
- Receive power: -14.4 to 0.5 dBm
- Maximum power consumption: 1 W
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Bail latch colour: Blue
- Digital optical monitoring: Yes
- FCoE support: No

Also Known As

SFP-10G-LR-S=

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required. The module is powered by the host SFP+ port and uses a maximum of 1 W.

Q: What is the difference between SFP-10G-LR-S and SFP-10G-LR?
A: SFP-10G-LR-S is the S-Class enterprise-class variant, which does not support FCoE. It uses the same 10GBASE-LR optics and interoperates with SFP-10G-LR and SFP-10G-LR-X over single-mode fibre.

Q: Which fibre and connectors does it use?
A: It uses standard G.652 single-mode fibre with a dual LC/PC connector. Patch cords must have PC or UPC connectors, as APC connectors are not supported.

Q: What is the maximum reach?
A: It supports links up to 10 km over single-mode fibre, with a minimum cabling distance of 2 m.

Q: Which devices does it work with?
A: It fits Cisco switches and routers with SFP+ ports. Not every device supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for supported platforms and software versions.
