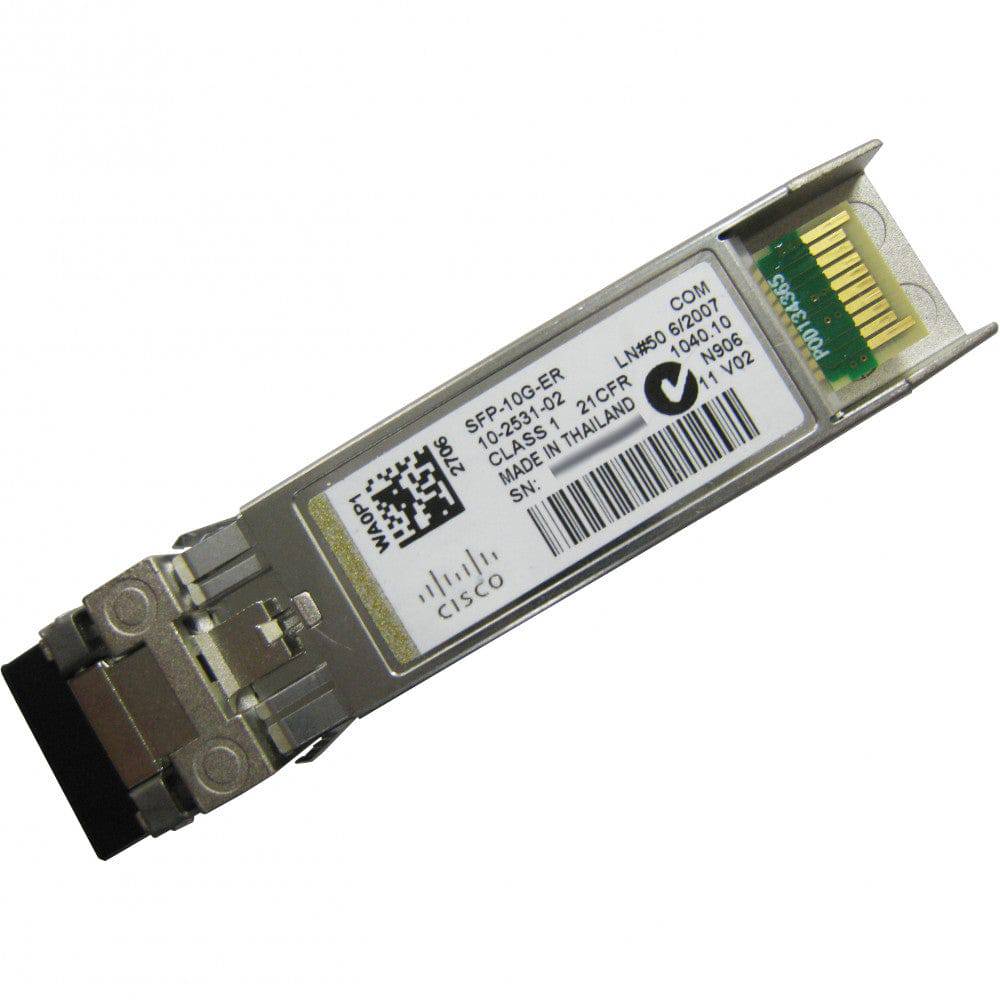

Cisco SFP-10G-ER-I | 10G SFP+ ER Transceiver, 40km SMF, Industrial Temp

SKU:SFP-10G-ER-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10G-ER-I is a multirate 10GBASE-ER, 10GBASE-EW and OTU2/2e SFP+ optical transceiver for single-mode fibre. It is the industrial temperature version of the SFP-10G-ER, built for long-reach 10 Gigabit Ethernet links in harsh environments such as outdoor cabinets, utilities and transport networks.

The module operates at 1550 nm over G.652 single-mode fibre and supports links up to 40 km using a dual LC/PC connector. Links over 30 km are engineered links per IEEE 802.3ae. It operates across an industrial temperature range of -40 to 85 C and draws a maximum of 1.5 W from the host port. Transmit power is 4.0 dBm maximum and -4.7 dBm minimum, with receive power from -1 dBm down to -15.8 dBm. A 5 dB 1550 nm fixed loss attenuator (15216-ATT-LC-5=) is required for links under 20 km. No licence or subscription is needed.

It fits SFP+ ports on a wide range of Cisco switches and routers, including Catalyst 2960-S/X/XR, 3560, 3750, 3850 and 4500/4500-X, Nexus 2000/3000/4000/9000, ASR 900/1000/9000, ME 4500/4900, CRS, NCS 6000, MDS 9000 and UCS platforms. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your host.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multirate support for 10GBASE-ER, 10GBASE-EW and OTU2/2e
- Industrial temperature range suits harsh environments
- Hot-swappable, so the host does not need to be powered down to install or replace it
- Digital optical monitoring for diagnostics
- Optical interoperability with 10GBASE XENPAK, X2 and XFP interfaces on the same link
- Cisco quality ID lets the host platform identify certified, Cisco-tested modules
- Smallest 10G form factor for greatest port density per chassis
- Supports a pay-as-you-populate model for easier technology migration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: SFP+ (hot-swappable)
- Standard: 10GBASE-ER, also 10GBASE-EW and OTU2/2e
- Wavelength: 1550 nm
- Fibre type: SMF (G.652)
- Maximum distance: 40 km (links longer than 30 km are engineered links per IEEE 802.3ae)
- Minimum distance: 2 m (per IEEE 802.3ae)
- Transmit power: -4.7 dBm min, 4.0 dBm max
- Receive power: -15.8 dBm min, -1 dBm max
- Wavelength range: 1530 to 1565 nm
- Attenuator: 5 dB 1550 nm fixed loss attenuator required for links under 20 km (15216-ATT-LC-5=)
- Connector: Dual LC/PC (APC patch cords not supported)
- Bail latch colour: Red
- Power consumption: 1.5 W max
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Weight: 75 g or less
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)
- Monitoring: Digital optical monitoring (DOM)

Also Known As

SFP-10G-ER-I=, SFP-10G-ER-I-RF

FAQs

Q: Does this transceiver need a licence or subscription?
A: No. It is host-powered through the SFP+ port and needs no licence or subscription.

Q: Do I need an attenuator?
A: For links shorter than 20 km, a 5 dB 1550 nm fixed loss attenuator is required (spare part number 15216-ATT-LC-5=). It is not needed for longer links.

Q: How does the SFP-10G-ER-I differ from the SFP-10G-ER?
A: It uses the same 1550 nm, 40 km single-mode design but is rated for an industrial operating range of -40 to 85 C.

Q: Which patch cords can I use?
A: Use single-mode patch cords with dual LC connectors and PC or UPC polish. APC patch cords are not supported.

Q: Which Cisco platforms is it compatible with?
A: It works in SFP+ ports on many Cisco switches and routers, including Catalyst 2960-X, 3850 and 4500-X, Nexus 9000, ASR 1000 and NCS 6000. Not every platform supports every module, so check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your host.
