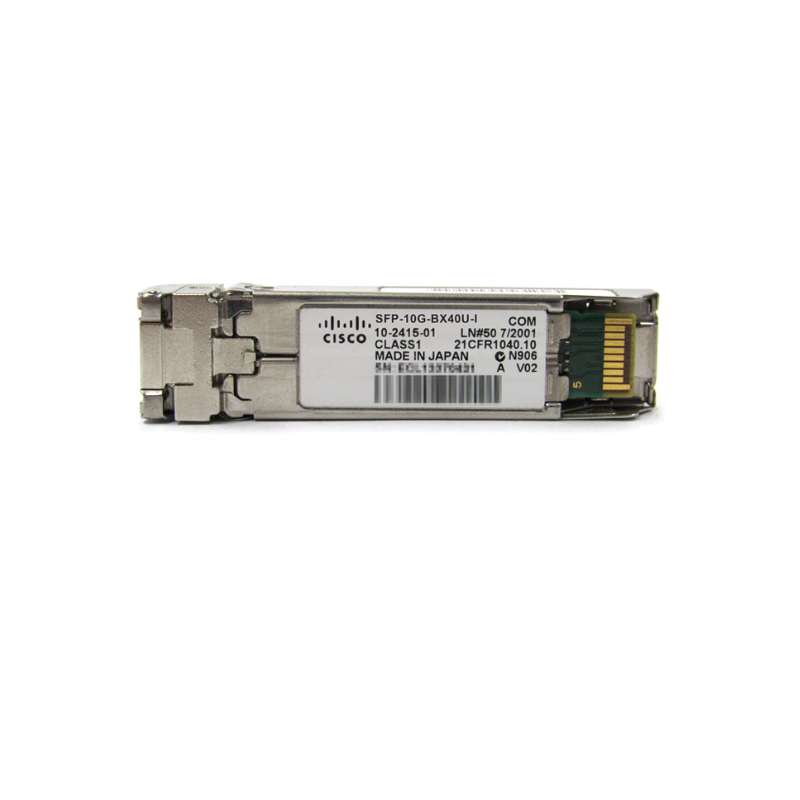

Cisco SFP-10G-BX40U-I | 10G SFP+ BiDi Transceiver, 40km, 1270nm Tx, Industrial
SKU:SFP-10G-BX40U-I
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The 10GBASE-BX40-U is an industrial-temperature bidirectional SFP+ transceiver from the Cisco 10GBASE SFP+ range. It carries 10 Gigabit Ethernet over a single strand of standard G.652 single-mode fibre for up to 40 km, which suits campus, metro and outdoor-cabinet links where fibre strands are scarce or the environment is harsh.
This is the upstream (U) end of a bidirectional pair. It transmits at 1270 nm and receives at 1330 nm through a single LC connector. Transmit power is -2.7 to 4.5 dBm and receive power is -21.2 to -9 dBm. Power consumption is 1.2 W maximum, drawn from the host SFP+ port, and the operating range is -40 to 85 C. Digital Optical Monitoring reports optical power, temperature, laser bias current and supply voltage. No licence or subscription is required.
It must be paired with an SFP-10G-BX40D-I at the far end, which transmits at 1330 nm and receives at 1270 nm. It is supported on a range of Cisco switches and routers, including Catalyst 2960-X/XR, 3560-X, 3750-X, 3850, 4500, 6800 Supervisor 6T, Industrial Ethernet 5000 and IE3500 Rugged. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Bidirectional operation over a single strand of standard single-mode fibre, halving fibre requirements
- Upstream end of a pair, matched with SFP-10G-BX40D-I at the far end
- Digital Optical Monitoring of Tx/Rx power, temperature, laser bias current and supply voltage
- Industrial temperature range for harsh environments and outdoor cabinets
- Hot-pluggable SFP+ form factor
- Class 1 laser safety compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: SFP-10G-BX40U-I
- Standard: 10GBASE-BX40-U
- Form factor: SFP+
- Transmit wavelength: 1270 nm (1260 to 1280 nm)
- Receive wavelength: 1330 nm (1320 to 1340 nm)
- Fibre type: Single-mode G.652, single strand
- Maximum distance: 40 km
- Transmit power: -2.7 to 4.5 dBm
- Receive power: -21.2 to -9 dBm
- Digital Optical Monitoring: Supported (SFF-8472)
- Power consumption: 1.2 W max
- Temperature class: Industrial
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
- Bail latch colour: Red
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)
- Standards: IEEE 802.3 10-Gigabit Ethernet, SFP+ MSA SFF-8431
FAQs
Q: Which module do I need at the other end of the link?
A: This is the upstream (U) module, transmitting at 1270 nm and receiving at 1330 nm. It must be paired with an SFP-10G-BX40D-I at the far end, which transmits at 1330 nm and receives at 1270 nm.
Q: Does it need a licence or subscription?
A: No. No licence or subscription is required. The module is powered from the host SFP+ port and draws 1.2 W maximum.
Q: How many fibre strands does it use?
A: One. It runs over a single strand of G.652 single-mode fibre with an LC connector, using different wavelengths for each direction, which halves the fibre needed compared with a standard duplex link.
Q: Which Cisco platforms support it?
A: It is supported on a range of Cisco switches and routers, including Catalyst 2960-X/XR, 3560-X, 3750-X, 3850, 4500, 6800 Supervisor 6T, Industrial Ethernet 5000 and IE3500 Rugged. Check the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.
Q: Can it be used in outdoor or industrial environments?
A: Yes. It has an industrial operating temperature range of -40 to 85 C, so it suits outdoor cabinets and other harsh environments.
