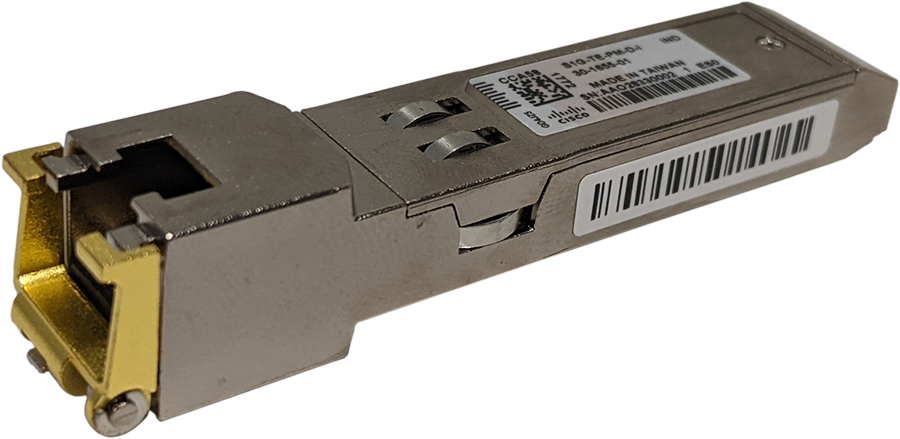

• Cisco SFP-1G-T-X 1GbE copper SFP transceiver module with silver-gold metallic housing
1 1

Cisco

Cisco S1G-TE-PM-D-I | Assurance SFP 1G 100/1000BASE-T, I-temp, 100m, 3.0W

S1G-TE-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Assurance SFP is a 1G copper smart SFP transceiver with a built-in FPGA for service activation testing and performance monitoring. It is built for service providers handling mobile backhaul, Carrier Ethernet and IP service deployments, where it handles service demarcation and SLA assurance without extra rack-mounted test equipment.

This SKU is the 100/1000BASE-T copper variant with an RJ-45 interface, supporting Cat5/6 cabling up to 100 m. It has an industrial temperature range of -40 to 85 C and draws 3.0 W from the host SFP port. The PTP variant of the family is excluded from this SKU. The module measures 8.5 x 13.4 x 63 mm and is managed through Cisco Crosswork Assurance, which also handles firmware updates, provisioning and reporting.

The module supports active Layer 2-4 traffic generation and measurement, including RFC2544 and Y.1564 service activation tests and TWAMP, ETH-DM, ETH-LB and Y.1731 OAM performance monitoring. Check the Cisco Transceiver Module Group (TMG) Compatibility Matrix for host platform support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fully featured FPGA for active Layer 2-4 traffic generation and measurement
- Service Activation Testing with RFC2544 and Y.1564 generation and reflection
- Performance monitoring with TWAMP, ETH-DM, ETH-LB, ICMP/UDP echo and Y.1731 OAM
- Wire-speed, MEF-compliant Carrier Ethernet service demarcation
- Zero-touch provisioning with IPv4/IPv6 management and DHCP
- LLDP enabled by default for network discovery
- Force Link Up keeps the SFP manageable when the media-side link is down
- In-network upgrades of transceiver firmware and FPGA
- Flowmeter and FlowBroker for remote packet capture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part number: S1G-TE-PM-D-I
- Type: 1G SFP, 100/1000BASE-T copper
- Connector: RJ-45
- Cable type: Cat5/6
- Maximum cable distance: 100 m
- Power consumption: 3.0 W
- Operating temperature: -40 to 85 C (-40 to 185 F), industrial, noncondensing
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Size (H x W x D): 8.5 x 13.4 x 63 mm
- Module weight: 75 grams or less
- IEEE-1588 PTP: Not supported on this SKU
- GR-3108: Class 2
- Management: SFF-8742, Cisco Crosswork Assurance
- Firmware update: Via Cisco Crosswork Assurance
- DOM: Per SFF-8472 MSA
- Control protocol security: Encrypted and signed using Grain128a
- Laser safety: Class 1 (21CFR-1040, IEC60825-1)

FAQs

Q: Does this SFP need a separate licence?
A: The product is fully integrated with Cisco Crosswork Assurance for provisioning, management and reporting. No separate licence tier is specified for this SKU.

Q: How much power does it draw?
A: It draws 3.0 W from the host SFP port. It does not use PoE.

Q: Does this SKU support IEEE-1588 PTP?
A: No. The family includes PTP Class B variants, but this SKU excludes PTP.

Q: What cabling and distance does it support?
A: It uses an RJ-45 copper interface with Cat5/6 cabling, up to 100 m, at 100/1000 Mbps.

Q: How is it managed?
A: It is managed through Cisco Crosswork Assurance, which handles provisioning, reporting and in-network firmware and FPGA updates.
