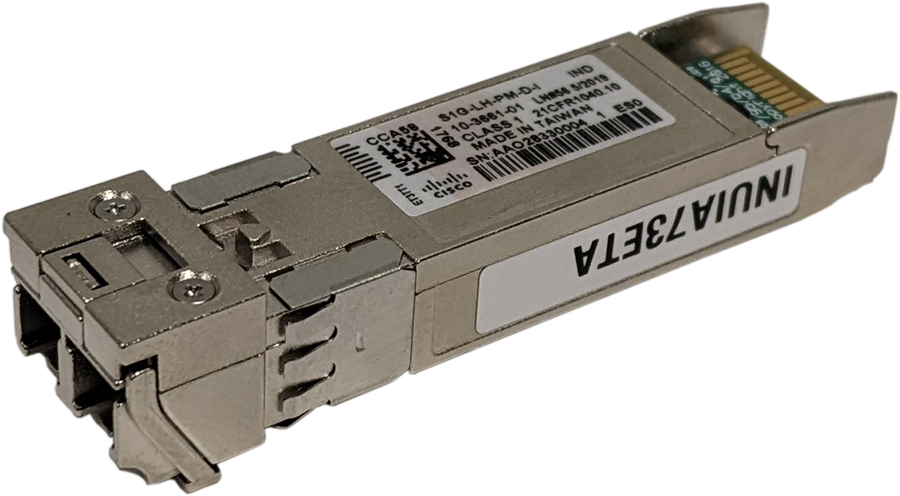

• Silver Cisco S1G-LH-PM-D-I 1G SFP transceiver with inuia73eta label
1 1

Cisco

Cisco S1G-LH-PM-D-I | Assurance 1G LH SFP Transceiver, 1310nm, 10km, I-Temp

S1G-LH-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The S1G-LH-PM-D-I is a smart 1G SFP Transceiver from the Cisco Assurance SFP range. It combines a standard 1310nm single-mode Gigabit Ethernet long-haul optic with a built-in FPGA that generates and measures Layer 2-4 traffic. Service providers use it for demarcation, service activation testing and performance monitoring on carrier Ethernet, IP services and mobile backhaul, without separate head-end test equipment.

The optic is a 1G LH module with a 1310nm wavelength, an LC duplex connector and a 10km reach over G.652 single-mode fibre. Transmit power is -9.5 to -3 dBm with a 12 dB link budget, and digital optical monitoring follows SFF-8472. It is rated for the industrial temperature range of -40 to 85 C and draws 1.75 W from the host SFP port, with no external power or PoE required. The module has a blue bail.

Testing and monitoring cover RFC2544 and Y.1564 service activation, plus TWAMP and Y.1731 performance monitoring. The module is managed through Cisco Crosswork Assurance, with firmware updates delivered the same way, and it can also be reconfigured using the Cisco Assurance Module Dock. As a smart SFP, its initialisation time exceeds standard MSA specifications.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Active Layer 2-4 traffic generation and measurement using an integrated FPGA
- Service Activation Testing with RFC2544 and Y.1564 generation and reflection at line rate
- Performance monitoring using TWAMP, ETH-DM, ETH-LB, ICMP/UDP Echo and Y.1731 (CCM, DMM, SLM, Link Trace, Loopback)
- Flowmeter for per-flow bandwidth metering and microburst detection
- FlowBroker remote packet capture
- Wire-speed, MEF-compliant Carrier Ethernet service demarcation with Y.1731 OAM
- Zero-touch provisioning with IPv4/IPv6 management and DHCP
- Force Link Up allows management when the fibre is disconnected or the link is down
- In-network firmware and FPGA upgrade

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: 1G SFP, Long Haul (LH)
- Wavelength: 1310 nm
- Transmit and receive wavelength range: 1260-1360 nm
- Cable type: Single-mode fibre (G.652)
- Optical connector: LC Duplex
- Cable distance: 10 km
- Transmit power: -9.5 dBm min / -3 dBm max
- Receive power: -19 dBm min / -3 dBm max
- Link budget: 12 dB
- Bail colour: Blue
- Power: 1.75 W
- Size (H x W x D): 8.5 x 13.4 x 56.6 mm
- Module weight: typically 75 g or less
- Operating temperature: -40 to 85 C (-40 to 185 F), industrial
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Digital optical monitoring: SFF-8472 MSA
- IEEE-1588 PTP: Class B
- GR-3108: Class 2
- Management: SFF-8742, Cisco Crosswork Assurance
- Safety: Laser Class 1 (21CFR-1040 LN#50 7/2001; IEC60825-1)

FAQs

Q: Does this SFP need a licence or subscription?
A: Cisco's datasheet does not list a licence tier for this SKU. It is designed to be managed through Cisco Crosswork Assurance, so confirm any Crosswork Assurance subscription requirements with Cisco.

Q: What power does it need?
A: It draws a maximum of 1.75 W from the host SFP port. No external power or PoE is required.

Q: How is it managed and updated?
A: It is managed through Cisco Crosswork Assurance, which is also used to update the firmware. It can be reconfigured using the Cisco Assurance Module Dock or network commands.

Q: What fibre and reach does it support?
A: It uses G.652 single-mode fibre with an LC duplex connector at 1310nm, for a reach of up to 10km.

Q: How does it differ from a standard 1G LH SFP?
A: It adds an integrated FPGA for active traffic generation, service activation testing and performance monitoring, and its initialisation time is longer than standard MSA specifications.

Q: What temperature range does it support?
A: It is an industrial temperature module rated for -40 to 85 C (-40 to 185 F) in operation.
