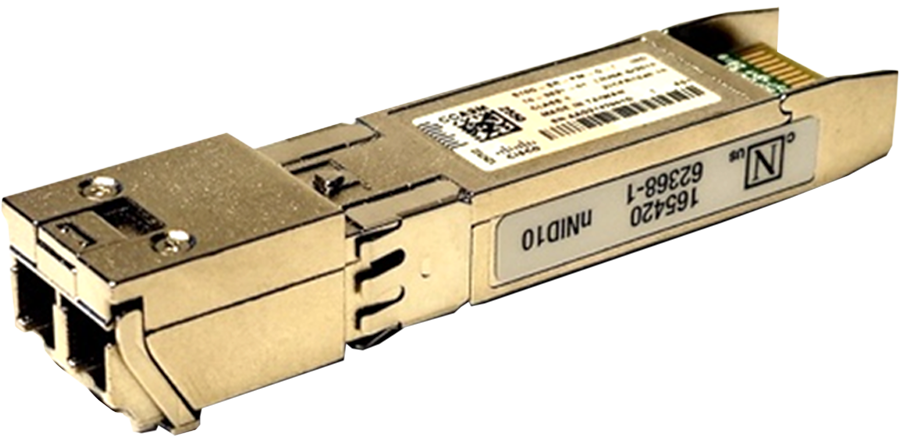

• Cisco S10G-SR-PM-D-I 10G SFP+ transceiver module, silver, model 165420
1 1

Cisco

Cisco S10G-SR-PM-D-I | Assurance SFP 10G SR Transceiver, MM 850nm, 150m, E-Temp

S10G-SR-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Assurance SFP is a 10GbE short-reach multimode SFP+ smart transceiver from the Cisco Provider Connectivity Assurance range. An integrated FPGA performs active Layer 2-4 traffic generation and measurement directly in the SFP+ port, giving service providers service activation testing and performance monitoring without separate test equipment or extra rack space. It suits Carrier Ethernet, mobile backhaul and IP service deployments that need in-line assurance and demarcation.

This SKU is a 10G SR module operating at 850 nm over multimode fibre with an LC duplex connector. It reaches 150 m on OM3 and OM4 fibre, with a 4 dB link budget. The extended operating temperature range is -5 to 85 C, module power draw is 2.6 W, and it is identified by its beige bail. It supports SFF-8472 digital optical monitoring and SFF-8742 management.

The module is managed through Cisco Crosswork Assurance, which handles zero-touch provisioning and in-network firmware and FPGA upgrades. It fits SFP+ ports and complies with the SFP+ MSA SFF-8431. As a smart SFP built on FPGA technology, its initialisation time is longer than standard MSA optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated FPGA for active Layer 2-4 traffic generation and measurement
- Service activation testing with RFC2544 and Y.1564 generation and reflection at line rate
- Performance monitoring with TWAMP, ETH-DM, Y.1731 and ICMP/UDP echo
- Flowmeter for per-flow bandwidth metering and microburst detection
- Zero-touch provisioning with IPv4 and IPv6 management and DHCP
- LLDP enabled by default for network discovery
- Force Link Up allows management when fibre is not connected
- Digital optical monitoring per SFF-8472
- In-network upgradable transceiver firmware and FPGA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: SFP+ performance monitoring transceiver
- Data rate: 10GbE
- Type: SR, multimode fibre (MMF)
- Wavelength: 850 nm (840-860 nm)
- Connector: LC duplex
- Core size: 50 um
- Reach: 150 m on OM3 (2000 MHz/km)
- Reach: 150 m on OM3 (4700 MHz/km)
- Reach: 150 m on OM4 (4700 MHz/km)
- Transmit power: -7.3 to -1 dBm
- Receive power: -9.9 to -1 dBm
- Link budget: 4 dB
- Power consumption: 2.6 W
- Operating temperature: -5 to 85 C
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 64.5 mm
- Weight: 75 g or less
- Bail colour: Beige
- IEEE 1588 PTP: Class B
- Management: SFF-8742 and Cisco Crosswork Assurance

FAQs

Q: What is the difference between this and a standard 10G SR optic?
A: This is a smart SFP with an integrated FPGA that generates and measures Layer 2-4 traffic for service activation testing and performance monitoring. A standard SR optic only carries data.

Q: How is this module managed?
A: It is designed to be managed by Cisco Crosswork Assurance, which handles zero-touch provisioning and firmware and FPGA upgrades over the network.

Q: What fibre and distance does it support?
A: It operates at 850 nm over multimode fibre with LC duplex connectors, reaching 150 m on OM3 and OM4 fibre.

Q: Will it work in any SFP+ port?
A: It fits SFP+ ports and complies with SFF-8431. Because it uses FPGA technology, initialisation takes longer than the MSA specification, so check platform compatibility before deploying.

Q: Can it operate in a wide temperature range?
A: Yes. It has an extended operating temperature range of -5 to 85 C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
