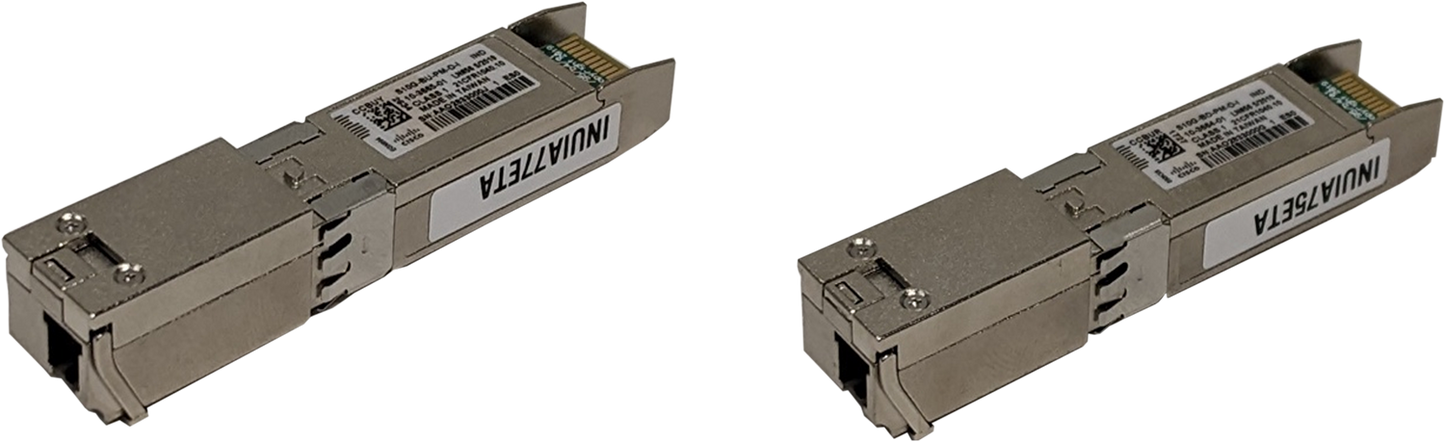

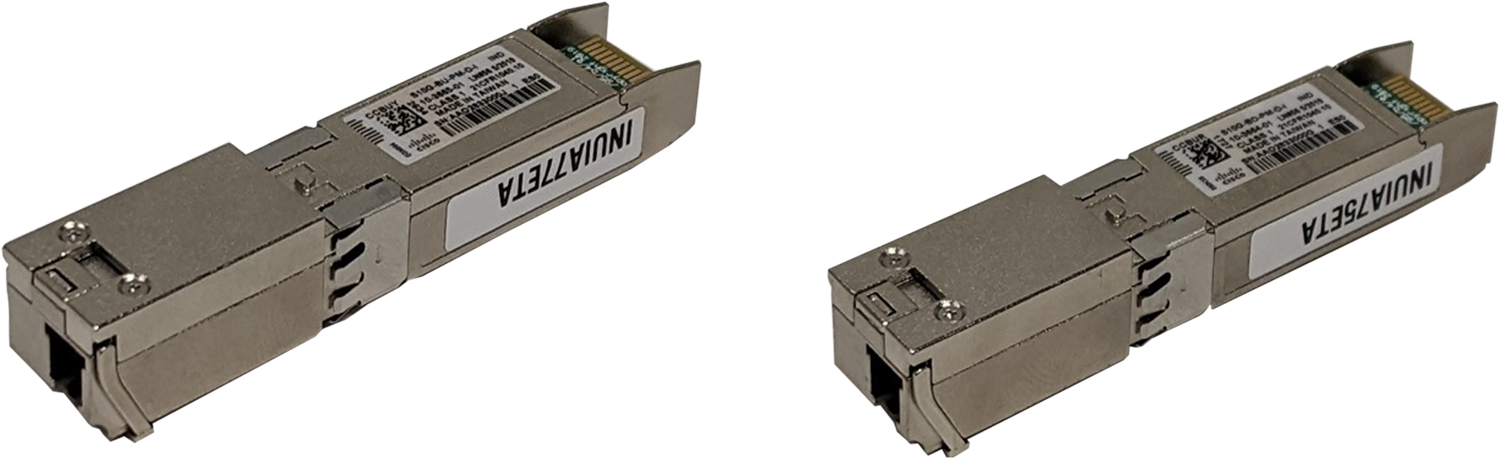

• Two identical inqua7eta-labeled silver SFP+ 10GBASE-LR BiDi transceivers for Cisco S10G-BU-PM-D-I
1 1

Cisco

Cisco S10G-BU-PM-D-I | Assurance 10G BiDi SFP+ Transceiver, 1270nm, 10km, I-Temp

S10G-BU-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The S10G-BU-PM-D-I is a 10GBASE-LR BiDi SFP+ smart transceiver from the Cisco Assurance SFP range, built for carrier Ethernet, mobile backhaul and IP service demarcation. An onboard FPGA adds service activation testing and ongoing performance monitoring at the network edge, so service quality can be verified without extra test equipment or rack space.

It carries 10 Gbps over a single single-mode fibre (G.652) with an LC simplex connector, up to 10 km. This is the upstream side of a BiDi pair, transmitting at 1270 nm (1260 to 1280 nm) and receiving at 1330 nm (1320 to 1340 nm). The industrial temperature rating of -40 to 85 C suits outdoor cabinets and unconditioned equipment rooms. Power draw is 2.7 W from the host port, and Digital Optical Monitoring is supported per SFF-8472. The module is managed and monitored through Cisco Crosswork Assurance (Provider Connectivity Assurance).

It fits standard SFP+ ports and must be paired with the matching downstream unit, S10G-BD-PM-D-I (Tx 1330 nm, Rx 1270 nm), at the far end. Because it is an FPGA-based smart SFP, transceiver initialisation takes longer than the MSA specification allows for.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Service Activation Testing with RFC2544 and Y.1564 generation and reflection
- Performance Monitoring including TWAMP, ETH-DM, ICMP/UDP Echo and Y.1731 KPIs
- FPGA capable of active Layer 2 to 4 traffic generation and measurement
- Zero-touch provisioning with IPv4/IPv6 management, DHCP and LLDP enabled
- Force Link Up for managing the SFP when the fibre is down or not connected
- Digital Optical Monitoring (DOM) per SFF-8472
- Firmware and FPGA upgradable in the network
- Control protocol encrypted and signed with Grain128a

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: SFP+ (10GBASE-LR BiDi)
- Data rate: 10 Gbps
- Fibre type: Single-mode (G.652)
- Connector: LC simplex
- Reach: 10 km
- Wavelength: 1270 nm (upstream)
- Transmit wavelength: 1260 to 1280 nm
- Receive wavelength: 1320 to 1340 nm
- Transmit power: -7 to +0.5 dBm
- Receive power: -12 to +0.5 dBm
- Link budget: 5 dB
- Power consumption: 2.7 W
- Operating temperature: -40 to 85 C (industrial)
- Storage temperature: -40 to 85 C
- Dimensions (H x W x D): 8.5 x 13.4 x 72 mm
- Weight: typically 75 g or less
- Bail colour: Blue
- IEEE-1588 PTP: Class B
- GR-3108: Class 2
- Management: SFF-8742, Cisco Crosswork Assurance
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)
- Standards: IEEE 802.3 10GbE, SFP+ MSA SFF-8431, GR-20-CORE, GR-326-CORE

FAQs

Q: What does this transceiver need at the far end of the link?
A: It is the upstream side of a BiDi pair (Tx 1270 nm, Rx 1330 nm). It must be paired with the matching downstream unit, S10G-BD-PM-D-I (Tx 1330 nm, Rx 1270 nm).

Q: How is it managed and does it need a licence?
A: It is managed and monitored through Cisco Crosswork Assurance (Provider Connectivity Assurance). Licensing is handled through Crosswork Assurance sensor licensing from Cisco.

Q: Does it need external power?
A: No. It draws about 2.7 W from the host SFP+ port.

Q: What fibre does it use and how far does it reach?
A: It runs over a single strand of single-mode fibre (G.652) with an LC simplex connector, up to 10 km.

Q: Why is initialisation slower than a standard SFP+?
A: It is a smart FPGA-based SFP, so transceiver initialisation time exceeds the MSA specification.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
