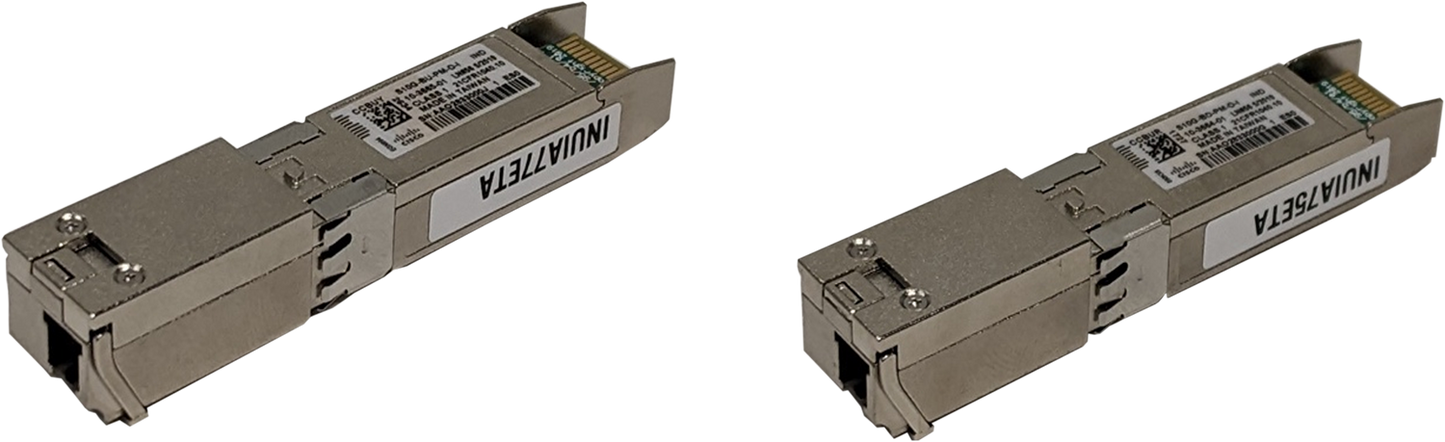

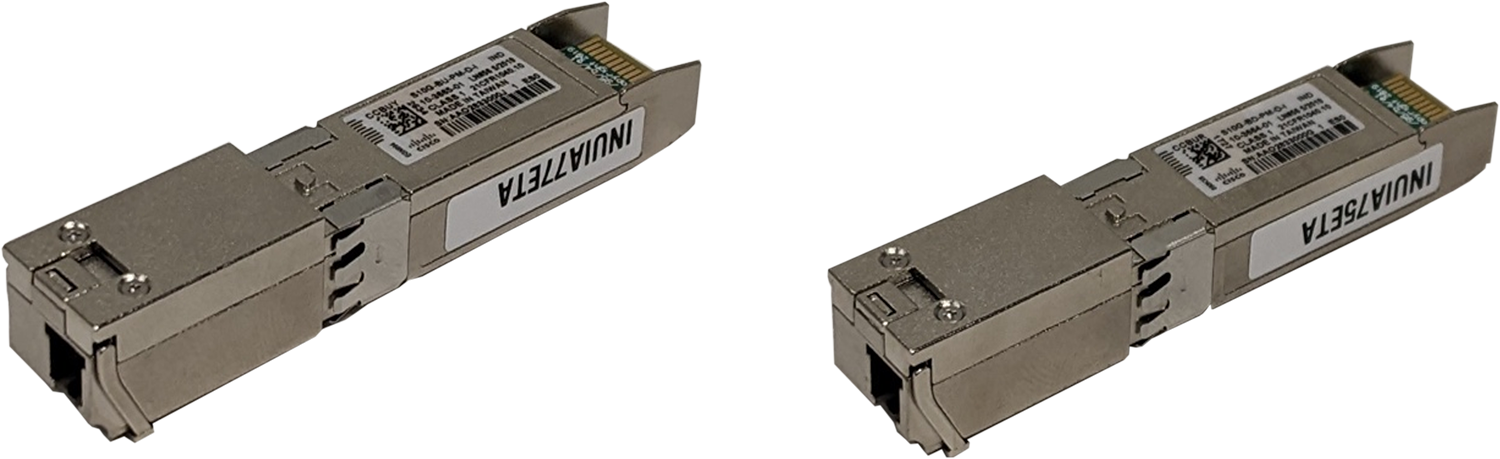

• Two identical Inqua7eta-labeled Cisco SFP+ 10GBASE-LR BiDi transceivers
1 1

Cisco

Cisco S10G-BD-PM-D-I | 10G BiDi SFP+ Smart Transceiver, 1330/1270nm, 10km

S10G-BD-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Assurance SFP in this SKU is a 10G BiDi SFP+ smart transceiver for service-provider and carrier Ethernet demarcation. It carries full duplex traffic over a single single-mode fibre and adds an onboard FPGA for service activation testing and performance monitoring through Cisco Crosswork Assurance. An industrial temperature rating suits harsh or outdoor deployments where space and cost rule out separate rack-mounted test gear.

This unit transmits at 1330 nm and receives at 1270 nm over G.652 single-mode fibre, with a reach of up to 10 km and a 5 dB link budget. It uses an LC simplex connector and operates from -40 to 85 C. Module power draw is 2.7 W, supplied by the host SFP+ port, and digital optical monitoring is provided per SFF-8472. Layer 2-4 traffic generation supports TWAMP, RFC2544 and Y.1564 testing, with the firmware and FPGA upgradable in-network.

BiDi optics work in pairs, so this downstream-side unit is used with the S10G-BU-PM-D-I (1270/1330 nm) at the far end of the same fibre. Check the Cisco TMG Compatibility Matrix for supported host platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single-fibre bidirectional 10G operation using different upstream and downstream wavelengths
- Onboard FPGA for active Layer 2-4 traffic generation and measurement
- Service Activation Testing and Performance Monitoring including TWAMP, RFC2544 and Y.1564
- Zero-touch provisioning with IPv4/IPv6 management and DHCP, integrated with Cisco Crosswork Assurance
- LLDP enabled by default for network discovery
- Force Link Up option for out-of-line deployments or troubleshooting
- In-network upgrade of transceiver firmware and FPGA
- Flowmeter per-flow bandwidth metering
- Industrial temperature operation from -40 to 85 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: SFP+ (10GbE LR BiDi)
- Reach: 10 km over SMF (G.652)
- Connector: LC simplex (single fibre)
- Transmit wavelength: 1330 nm (1320 to 1340 nm)
- Receive wavelength: 1270 nm (1260 to 1280 nm)
- Transmit power: -7 to +0.5 dBm
- Receive power: -12 to +0.5 dBm
- Link budget: 5 dB
- Power consumption: 2.7 W
- Operating temperature: -40 to 85 C (-40 to 185 F), noncondensing
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 8.5 x 13.4 x 72 mm
- Weight: typically 75 g or less
- Bail colour: Blue
- Digital optical monitoring: SFF-8472
- Timing: IEEE-1588 PTP Class B
- Management: SFF-8742, Cisco Crosswork Assurance
- Standards: IEEE 802.3 10GbE, SFP+ MSA SFF-8431, SFF-8742
- Safety: Laser Class 1 (21CFR-1040, IEC60825-1)

FAQs

Q: Does this transceiver need a licence?
A: No licence is listed for the SFP itself. It is managed and controlled through Cisco Crosswork Assurance, so that platform is needed to use its assurance and monitoring functions.

Q: Which transceiver does it pair with at the other end of the fibre?
A: BiDi optics are used in matched pairs. This unit transmits at 1330 nm and receives at 1270 nm, so the far end needs the S10G-BU-PM-D-I (1270/1330 nm).

Q: How is the transceiver powered?
A: It draws 2.7 W from the host SFP+ port. No external power supply is required.

Q: How is it managed and updated?
A: Management is through SFF-8742 and Cisco Crosswork Assurance, with zero-touch provisioning over IPv4/IPv6 and DHCP. Firmware and FPGA updates are delivered in-network via Crosswork Assurance.

Q: What fibre and reach does it support?
A: It runs over G.652 single-mode fibre with an LC simplex connector, for up to 10 km with a 5 dB link budget.
