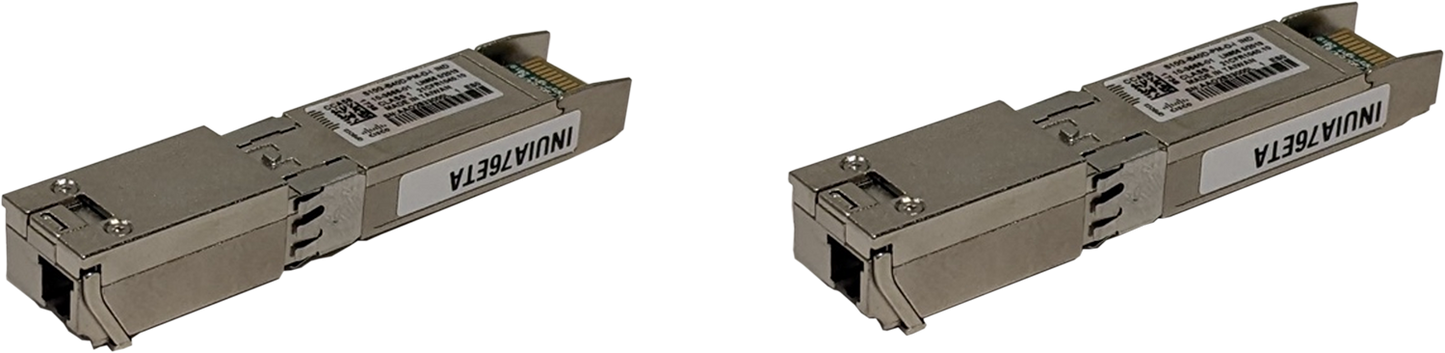

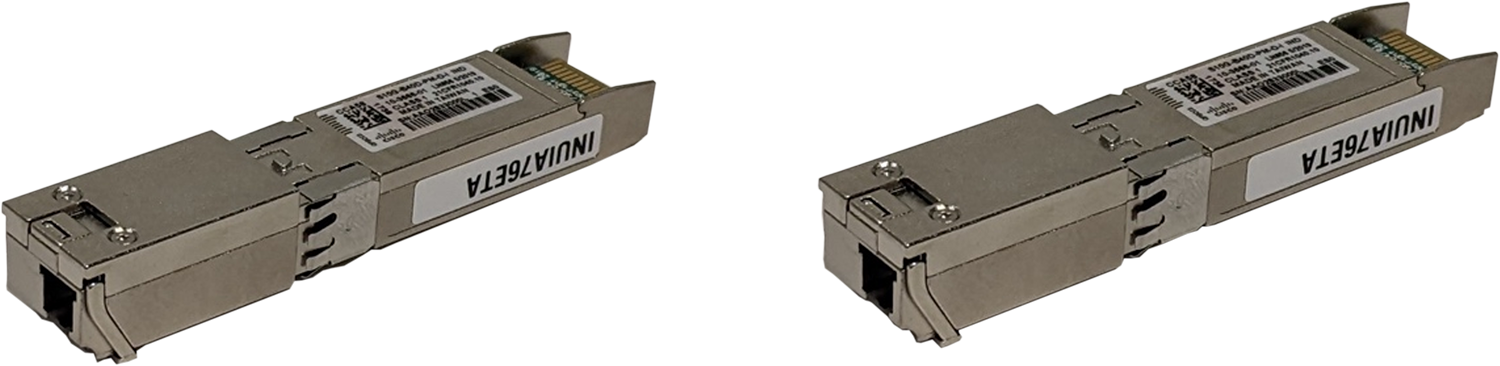

• Two Cisco S10G-B40D-PM-D-I SFP+ transceivers labeled innia76e1a
1 1

Cisco

Cisco S10G-B40D-PM-D-I | Assurance 10G SFP+ ER-BiDi 1330/1270nm, 40km, I-Temp

S10G-B40D-PM-D-I

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Assurance SFP (formerly the Accedian Skylight SFP Sensor) is a smart 10GbE SFP+ transceiver that combines a 10GBASE-ER BiDi optic with an onboard FPGA for service assurance. It runs active Layer 2-4 traffic generation and performance monitoring from inside the SFP port, which suits Carrier Ethernet, mobile backhaul and IP service deployments that need service demarcation, SLA monitoring and service activation testing without extra rack space or head-end test equipment.

S10G-B40D-PM-D-I is the downstream half of an ER-BiDi pair, transmitting at 1330 nm and receiving at 1270 nm over a single strand of G.652 single-mode fibre with an LC simplex connector. Reach is 40 km with a 17 dB link budget, and the industrial temperature rating covers -40 to 85 C. Module power draw is 3.0 W from the host SFP+ port. It includes digital optical monitoring to SFF-8472 and IEEE-1588 PTP Class B support. The red bail identifies the downstream unit.

The sensor is managed from the Cisco Provider Connectivity Assurance platform, formerly Crosswork Assurance, and communicates with it by IP address. It must be paired with the S10G-B40U-PM-D-I (1270/1330 nm) at the far end of the link.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Service Activation Testing with RFC2544 and Y.1564 generation and reflection at line rate
- Performance monitoring including TWAMP, ETH-DM, Y.1731, ICMP/UDP echo, plus one-way delay, jitter and loss metrics
- Up to 4000 TWAMP sessions (80000 PPS total, 250 PPS maximum per session)
- Flowmeter for per-flow bandwidth and microburst detection
- Zero-touch provisioning with IPv4/IPv6 management, DHCP and LLDP
- Force Link Up option to manage the SFP when the fibre is down or not connected
- In-network firmware and FPGA upgrade
- Full-duplex operation on a single fibre using separate upstream and downstream wavelengths
- Control protocol is encrypted and signed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PID: S10G-B40D-PM-D-I
- Description: SFP-10GbE Performance Monitoring, ER-Bi-Directional, SM, 1330/1270nm, 40km, I-Temp
- Form factor: 10GbE SFP+ Performance Monitoring sensor
- Fibre type: Single-mode, G.652
- Wavelength: 1330 nm transmit, 1270 nm receive
- Transmit wavelength range: 1320 to 1340 nm
- Receive wavelength range: 1260 to 1280 nm
- Connector: LC simplex
- Reach: 40 km
- Transmit power: -1 to +5 dBm
- Receive power: -18 to -7 dBm
- Link budget: 17 dB
- Attenuator requirement: 15 dB if link under 5 km, 10 dB if 5-15 km, 5 dB if 15-25 km
- Power: 3.0 W
- Size (H x W x D): 8.5 x 13.4 x 72 mm
- Weight: typically 75 g or less
- Operating temperature: -40 to 85 C
- Storage temperature: -40 to 85 C
- Bail colour: Red
- Digital optical monitoring: SFF-8472
- IEEE-1588 PTP: Class B
- GR-3108: Class 2
- Management: SFF-8742, Cisco Provider Connectivity Assurance
- Laser safety: IEC 60825-1, FDA CFR 21

FAQs

Q: What does it need at the far end of the link?
A: This is the downstream (D) half of a BiDi pair. It must be paired with the S10G-B40U-PM-D-I, which transmits at 1270 nm and receives at 1330 nm.

Q: What manages this sensor?
A: It is managed from the Cisco Provider Connectivity Assurance platform, formerly Crosswork Assurance, and communicates with it by IP address. No specific licence tier is stated for this SKU.

Q: Do I need an attenuator on short links?
A: Yes. A 15 dB attenuator is needed under 5 km, 10 dB for 5-15 km and 5 dB for 15-25 km. Cisco offers the 15216-ATT-LC-5=, 15216-ATT-LC-10= and 15216-ATT-LC-15= attenuators.

Q: How much power does it draw?
A: The module draws a maximum of 3.0 W from the host SFP+ port. It does not use PoE.

Q: How does it differ from a standard ER-BiDi SFP+?
A: It adds an onboard FPGA for active Layer 2-4 traffic generation and performance monitoring, including SAT testing and TWAMP, alongside the 40 km ER-BiDi optic.

Q: Is it suitable for outdoor or cabinet installations?
A: Yes. The I-Temp rating covers an operating range of -40 to 85 C, which suits cabinets and unconditioned sites.
