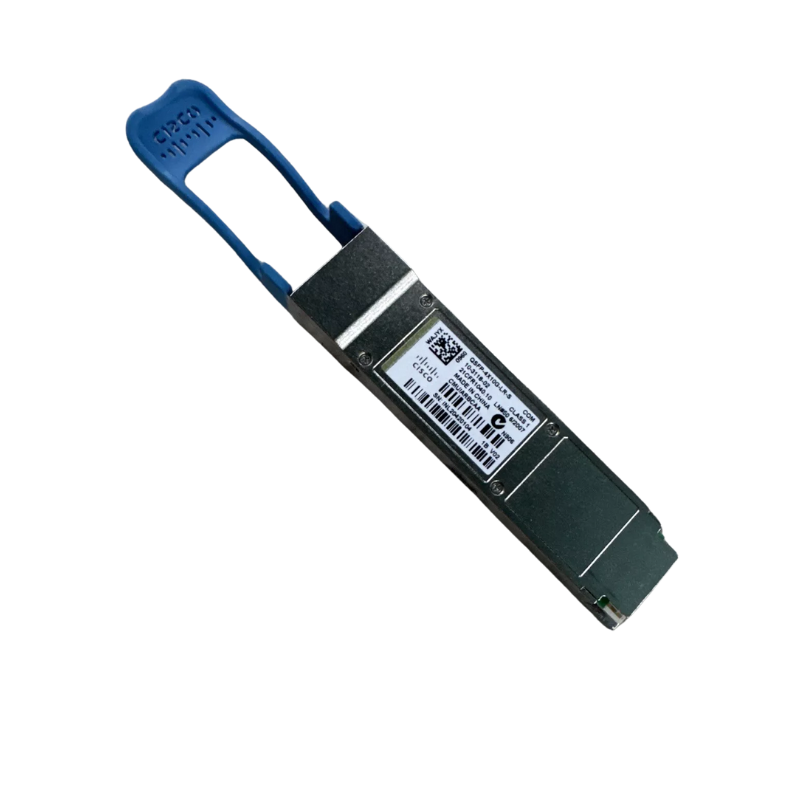

Cisco QSFP-4X10G-LR-S | 40G QSFP+ Transceiver, 4x10GBASE-LR, MPO-12, 10km SMF
SKU:QSFP-4X10G-LR-S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This Cisco 40G QSFP+ transceiver is built for single-mode fibre and uses an MPO-12 connector to reach up to 10 km. It suits enterprise and data centre networks that need high-density 40G links over parallel single-mode fibre, or a 40G to 4x10G breakout to 10GBASE-LR ports.
The module operates at 1310 nm (1260 to 1355 nm) over G.652 single-mode fibre. Transmit power is -8.2 to +0.5 dBm per lane and receive power is -14.4 to +0.5 dBm per lane. It draws 3.5 W from the host QSFP port, so no separate power supply is needed, and it operates from 0 to 70 C. This S-Class variant is specified as 4x10GBASE-LR, 10km SMF with MPO-12.
In breakout mode, the four 10G lanes interoperate with 10GBASE-LR interfaces up to 10 km using an external 12-fibre MPO to 2-fibre duplex LC breakout cable. Angled Physical Contact (APC) MPO patch cords are required. The module plugs into Cisco QSFP 40G ports. FCoE is not supported.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Supports link lengths of up to 10 km on G.652 single-mode fibre
- Native 40G links over 12-fibre parallel fibre with MPO/MTP female connectors
- 4x10G mode interoperates with 10GBASE-LR interfaces up to 10 km via an external 12-fibre to 2-fibre duplex breakout cable
- Optimised for 4x10G interoperability across the 10GBASE-LR and SFP-10/25G-LR-S (10G mode) specification range
- 2-wire I2C interface compliant with SFF-8436 and the QSFP MSA
- Certified and tested on Cisco QSFP 40G ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 40G QSFP+
- Interface type: 4x10GBASE-LR, 40GBASE-PLR4 style parallel breakout
- Wavelength: 1310 nm (1260 to 1355 nm)
- Fibre type: Single-mode, G.652
- Reach: Up to 10 km
- Connector: MPO-12 (APC patch cords required)
- Power consumption: 3.5 W
- Transmit power: -8.2 to +0.5 dBm per lane
- Receive power: -14.4 to +0.5 dBm per lane
- Pull tab colour: Blue
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: 1
- FCoE support: Not supported
- Standards: IEEE 802.3ba, QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and SFF-8461, GR-20-CORE, GR-326-CORE, GR-1435-CORE, RoHS 6
FAQs
Q: What fibre and connector does this module use?
A: It uses G.652 single-mode fibre with an MPO-12 connector. Angled Physical Contact (APC) MPO patch cords are required.
Q: Can it break out to 10G links?
A: Yes. In 4x10G mode it connects to 10GBASE-LR interfaces up to 10 km using an external 12-fibre MPO to 2-fibre duplex LC breakout cable. It also interoperates with SFP-10/25G-LR-S in 10G mode.
Q: Does it need external power?
A: No. It is powered by the host QSFP port and draws a maximum of 3.5 W.
Q: Which devices does it work with?
A: It is supported on Cisco switches and routers with QSFP 40G ports. Check the Cisco Optics-to-Device Compatibility Matrix for your specific platform.
Q: Does it support FCoE?
A: No. Fibre Channel over Ethernet is not supported on this module.
