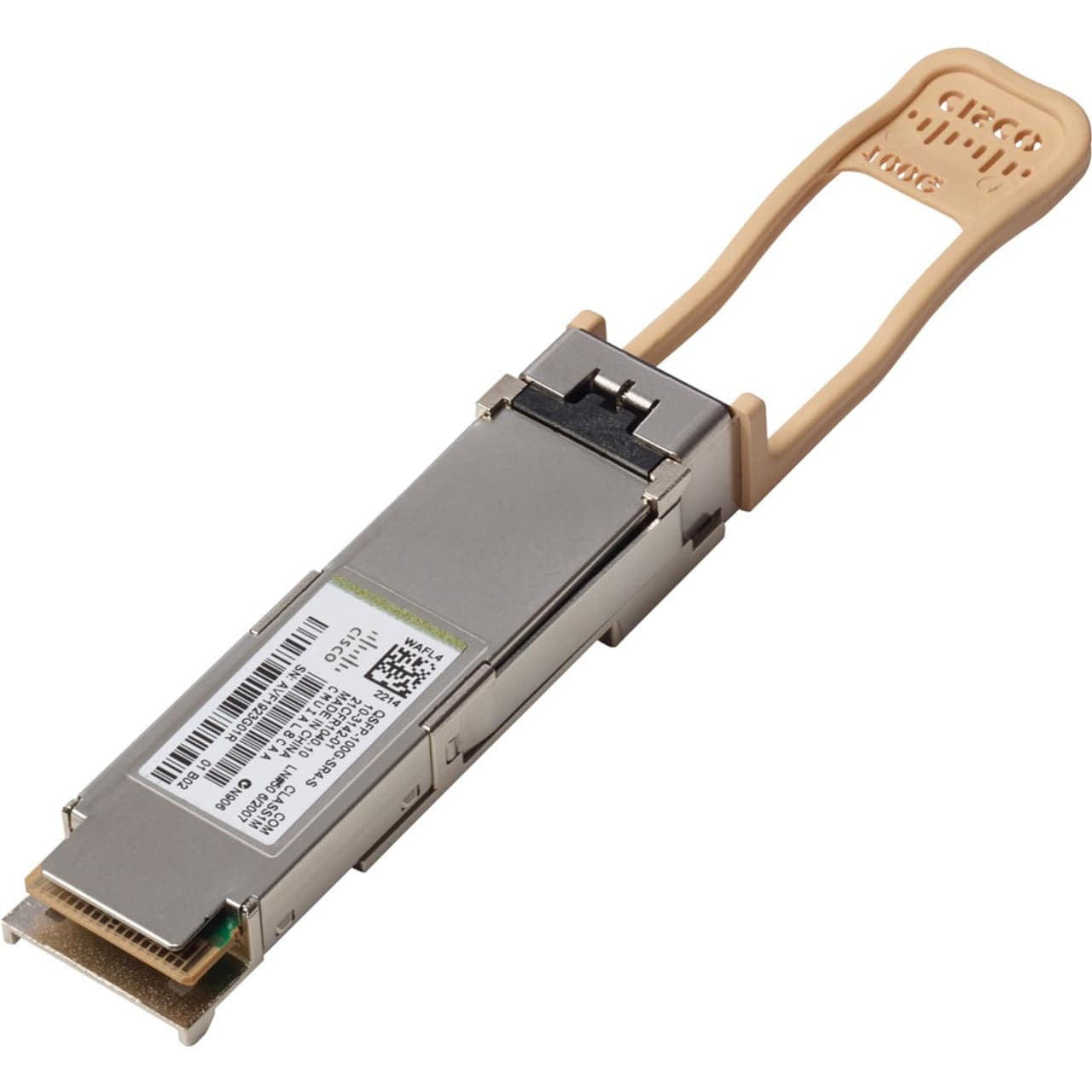

Cisco QSFP-100G-SR4-S | 100G QSFP28 SR4 Transceiver, MPO-12, 70m OM3/100m OM4

SKU:QSFP-100G-SR4-S

$1,475.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-100G-SR4-S is a hot-swappable 100GBASE-SR4 QSFP28 optical transceiver for short-reach 100 Gigabit Ethernet links over multimode fibre. It suits data centre, high-performance computing, enterprise core and distribution, and service provider networks that need high-bandwidth 100G connections between nearby devices.

The module runs four parallel lanes at a nominal 850nm wavelength (840 to 860 nm) over a 12-fibre MPO connector using 50 micron multimode fibre. Reach is 70m on OM3 and 100m on OM4 or OM5. Power consumption is 3.5 W, drawn from the host QSFP28 port, and the commercial operating range is 0 to 70 C. The electrical interface is compliant with IEEE 802.3bm.

It is supported on Cisco switches and routers with QSFP28 100G ports, including Nexus 9000, NCS and Catalyst platforms, and interoperates with other IEEE-compliant 100GBASE-SR4 interfaces. Links need MPO-12 multimode patch cabling. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module that plugs into a 100 Gigabit Ethernet Cisco QSFP28 port
- Four parallel lanes over 12-fibre MPO multimode cabling
- High-speed electrical interface compliant with IEEE 802.3bm
- Interoperable with other IEEE-compliant 100GBASE-SR4 interfaces
- Draws only 3.5 W from the host port with no separate power supply
- Class 1 laser with a 0 to 70 C commercial operating range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Data rate / standard: 100 Gigabit Ethernet, 100GBASE-SR4
- Form factor: QSFP28
- Connector type: MPO-12 (12 fibres)
- Nominal wavelength: 850 nm
- Transmit and receive wavelength range: 840 to 860 nm
- Cable type: Multimode fibre (MMF)
- Core size: 50.0 microns
- Modal bandwidth: 2000 MHzkm (OM3), 4700 MHzkm (OM4), 4700 MHzkm (OM5)
- Cable distance: 70 m (OM3), 100 m (OM4), 100 m (OM5)
- Power consumption: 3.5 W
- Pull tab colour: Beige
- Transmit power per lane: +2.4 dBm max / -8.4 dBm min
- Receive power per lane: +2.4 dBm max / -10.3 dBm min
- Operating temperature: 0 to 70 C (32 to 158 F), commercial range
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: 1
- Electrical interface: High-speed electrical interface compliant to IEEE 802.3bm

Also Known As

QSFP-100G-SR4-S=

FAQs

Q: What fibre and connector does it need?
A: It needs 50 micron multimode fibre terminated with an MPO-12 connector. Reach is 70m on OM3 and 100m on OM4 or OM5.

Q: Which Cisco platforms support it?
A: It is supported on Cisco switches and routers with QSFP28 100G ports, including Nexus 9000, NCS and Catalyst platforms. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.

Q: Does it need external power or a licence?
A: No. It draws a maximum of 3.5 W from the host QSFP28 port and needs no separate power supply.

Q: Will it link with other 100GBASE-SR4 optics?
A: Yes. It is interoperable with other IEEE 802.3bm compliant 100GBASE-SR4 interfaces, provided the fibre and connector types match.
