Cisco

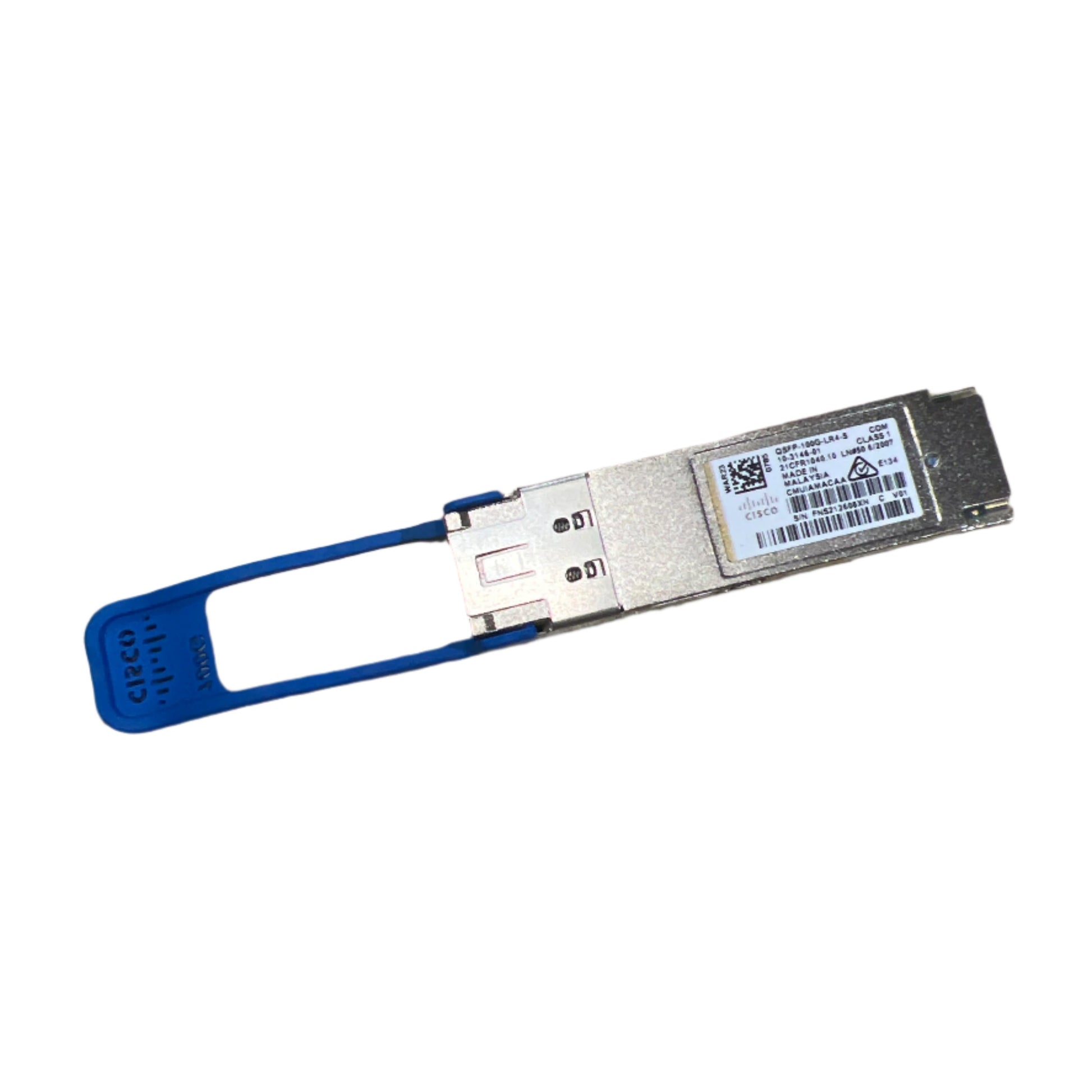

Cisco QSFP-100G-LR4-S | 100G QSFP28 LR4 Transceiver, 10km SMF, Standard Temp

SKU:QSFP-100G-LR4-S

$32,837.20 inc. GST
$29,852.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 100GBASE-LR4 QSFP28 transceiver provides 100 Gigabit Ethernet links up to 10 km over standard G.652 single-mode fibre with a duplex LC connector. It suits data centre interconnects, high-performance computing networks, enterprise core and distribution layers, and service provider applications that need 100G over single-mode fibre.

The module combines four LAN-WDM lanes at 1295, 1300, 1304 and 1309 nm and complies with IEEE 100GBASE-LR4 without FEC. It draws 4.0 W, is rated for commercial operating temperature of 0 to 70 C, and has a blue pull tab and Class 1 laser. This standard temperature version is the one to choose for climate-controlled environments, while the industrial-temperature sibling is QSFP-100G-LR4-I.

It is a hot-swappable module for Cisco switches and routers with QSFP28 (100G) ports, and is compatible with other IEEE-compliant 100GBASE-LR4 interfaces. Note that QSFP-100G-LR-S is a different single-wavelength 1310 nm LR1 module and is not an LR4 part.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module that plugs into a 100G Cisco QSFP28 port
- Compliant with IEEE 100GBASE-LR4, with no FEC required
- High-speed electrical interface compliant with IEEE 802.3bm
- Four-lane LAN-WDM optics over a single duplex LC single-mode fibre pair
- Interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Tested on Cisco QSFP-100G ports for performance, quality and reliability
- Laser Class 1 per IEC 60825-1

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: QSFP28 (QSFP-100G)
- Standard: IEEE 802.3 100GBASE-LR4 (no FEC employed)
- Data rate: 100 Gigabit Ethernet
- Reach: up to 10 km
- Cable type: SMF G.652
- Connector: Duplex LC
- Nominal wavelengths: 1295, 1300, 1304, 1309 nm (four lanes, LAN-WDM)
- Transmit power per lane: -4.3 dBm min, +4.5 dBm max
- Receive power per lane: -10.6 dBm min, 4.5 dBm max
- Power consumption: 4.0 W
- Operating temperature (commercial): 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Pull tab colour: Blue
- Laser class: Class 1
- Module weight: 100 g or less
- Compliance: SFF-8665 (QSFP28), SFF-8636, IEEE 802.3bm, RoHS 6

Also Known As

QSFP-100G-LR4-S=

FAQs

Q: What fibre does this module need?
A: It uses standard G.652 single-mode fibre with duplex LC connectors, supporting links up to 10 km.

Q: How does it differ from QSFP-100G-LR4-I?
A: This -S version is rated for commercial temperature of 0 to 70 C. The -I version is the industrial-temperature sibling.

Q: Is QSFP-100G-LR-S the same as this module?
A: No. QSFP-100G-LR-S is a single-wavelength 1310 nm LR1 module, while this is a four-lane LR4 module.

Q: How much power does it draw?
A: Maximum power consumption is 4.0 W, supplied by the host QSFP28 port.

Q: Where can I use it?
A: It works in Cisco switches and routers with QSFP28 (100G) ports. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for supported platforms.
