Cisco

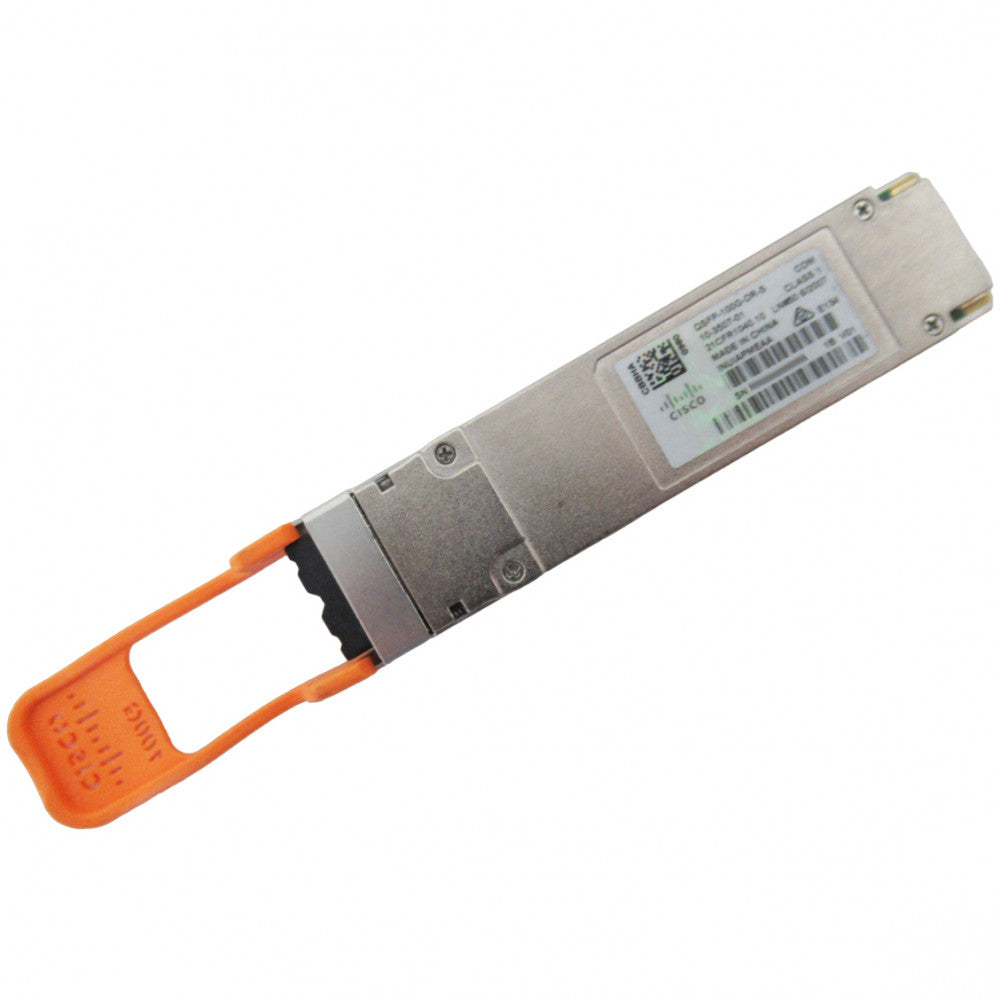

Cisco QSFP-100G-DR-S | 100GBASE-DR QSFP28 Transceiver, SMF, 500m, LC

SKU:QSFP-100G-DR-S

$1,845.80 inc. GST
$1,678.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

5 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 100GBASE-DR QSFP28 optical transceiver from the Cisco QSFP-100G module portfolio. It is built for data centre 100G links of up to 500 m over duplex single-mode fibre, including 100G-to-400G DR4 break-out interconnects.

The module is IEEE 802.3 100GBASE-DR compliant and carries 100G on a single 1310 nm wavelength using PAM4 modulation with FEC. It connects through a duplex LC interface over G.652 single-mode fibre, with a transmit and receive wavelength range of 1304.5 to 1317.5 nm. Power consumption is 4.3 W, and the commercial operating temperature range is 0 to 70 C, with storage from -40 to 85 C.

It is a hot-swappable device for 100G Ethernet Cisco QSFP ports, and it interoperates with IEEE 400GBASE-DR4 optics such as the Cisco QSFP-400G-DR4-S through fibre break-out cables. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for supported switch and router platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable module for 100G Ethernet Cisco QSFP ports
- IEEE 802.3 100GBASE-DR compliant, interoperable with other IEEE-compliant 100GBASE interfaces where applicable
- Single-wavelength 100G over a duplex single-mode fibre pair
- Certified and tested on Cisco QSFP-100G ports for performance, quality and reliability
- Interoperates with IEEE 400GBASE-DR4 transceivers such as Cisco QSFP-400G-DR4-S via fibre break-out cables
- PAM4 modulation with FEC for reliable 100G signalling

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Standard: IEEE 802.3 100GBASE-DR
- Form factor: QSFP28
- Connector: LC (duplex)
- Cable type: SMF G.652
- Maximum distance: 500 m
- Nominal wavelength: 1310 nm
- Wavelength range: 1304.5 to 1317.5 nm
- Signalling: single wavelength, PAM4 with FEC
- Electrical interface: IEEE 802.3bm compliant
- Transmit power per lane: -2.9 to 4 dBm
- Receive power per lane: -5.9 to 4 dBm
- Power consumption: 4.3 W
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x W x D): 13.5 x 18.4 x 72.4 mm
- Weight: 100 grams or less
- Pull tab colour: Orange

FAQs

Q: What fibre and connector does this transceiver use?
A: It uses duplex LC connectors over G.652 single-mode fibre, with a maximum reach of 500 m.

Q: Can it link to a 400G DR4 port?
A: Yes. It interoperates with IEEE 400GBASE-DR4 transceivers, such as the Cisco QSFP-400G-DR4-S, through fibre break-out cables.

Q: What power does the module draw?
A: It draws 4.3 W, supplied by the host through the QSFP port.

Q: Which platforms support this module?
A: It is supported on Cisco switches and routers with 100G QSFP ports. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for specific platforms.

Q: What temperature range does it cover?
A: It is a commercial-temperature module rated for operation from 0 to 70 C.
