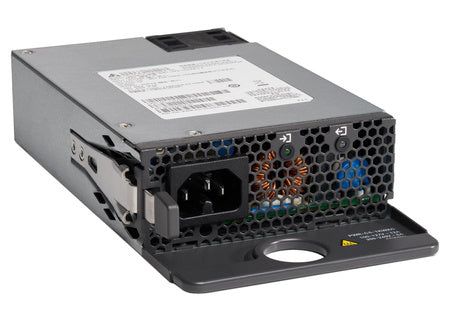

• Cisco PWR-C6-1KWAC-UP black metal 1000W power supply unit with perforated front panel and visible internal components
1 1

Cisco

Cisco PWR-C6-1KWAC-UP | Catalyst 9200 1000W AC Power Supply, Hot-Swappable

PWR-C6-1KWAC-UP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a 1000W AC Config 6 power supply for the Cisco Catalyst 9200 Series. It is a field-replaceable, hot-swappable unit built for 48-port PoE+ access switching in branch offices and campus networks, where IP phones, Wi-Fi access points and other PoE+ devices need a dependable power source.

A single PWR-C6-1KWAC provides a 740W PoE+ budget on the C9200-48P, C9200-48PB and C9200-48PXG. Fitting a second identical supply raises that budget to 1440W, or provides power redundancy if the first supply fails. This upgrade option suits a spare or second supply, and it can be fitted at initial order or added later. The power supply itself needs no licence.

PWR-C6-1KWAC is the Config 6 supply for the Catalyst 9200 family and is the default supply on the 48-port PoE+ models listed above. The C9200L family uses Config 5 supplies instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable, hot-swappable power supply design
- Second identical supply can be added at initial order or later
- Second supply can provide redundancy or additional PoE+ power
- Supports PoE+ (IEEE 802.3at, up to 30W per port) on Catalyst 9200 48-port models
- Perpetual PoE keeps PoE+ power on during a switch reload
- Default power supply on C9200-48P, C9200-48PB and C9200-48PXG

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: PWR-C6-1KWAC
- Rated output: 1000W AC
- Form factor: field-replaceable unit (FRU) power supply
- Hot-swappable: yes
- PoE+ budget with one supply: 740W (C9200-48P, C9200-48PB, C9200-48PXG)
- PoE+ budget with two supplies: 1440W (C9200-48P, C9200-48PB, C9200-48PXG)
- Switch power supply bays: up to 2
- Second supply must be identical to the first
- Compatible models: C9200-48P, C9200-48PB, C9200-48PXG

FAQs

Q: Does this power supply need a licence?
A: No. The power supply itself needs no licence. The host Catalyst 9200 switch uses Cisco Switching Essentials or Advantage subscription licences.

Q: Which switches does it work with?
A: It is the Config 6 supply for the Catalyst 9200 48-port PoE+ models: C9200-48P, C9200-48PB and C9200-48PXG.

Q: How much PoE+ power does it provide?
A: One PWR-C6-1KWAC gives a 740W PoE+ budget on the supported 48-port models. Two supplies give up to 1440W.

Q: Can I add a second supply for redundancy?
A: Yes. These switches have two power supply bays, and the second supply must be identical to the first. It can provide redundancy or additional PoE+ power.

Q: Will it fit the Catalyst 9200L family?
A: No. The C9200L family uses Config 5 supplies (PWR-C5-1KWAC). PWR-C6-1KWAC is for the Catalyst 9200 family.
