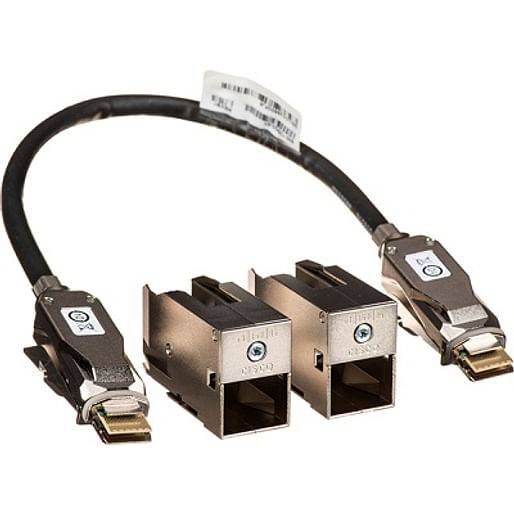

• Cisco C9300L-STACK-KIT black silver USB cable with metal connectors
1 1

Cisco

Cisco C9300L-STACK-KIT | Catalyst 9300L Stacking Kit, StackWise-320, 0.5m

C9300L-STACK-KIT

9 in stock

$1,725.90 inc. GST
$1,569.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L Stacking Kit is the StackWise-320 backplane stacking accessory for Catalyst 9300L fixed-uplink switches. It lets you join multiple switches into a single logical unit, so a stack is configured and managed as one device.

The kit provides 320 Gbps of stacking bandwidth and supports up to eight switches per stack. It uses two stack adapters and a Type 3 stacking cable, with a 0.5 m STACK-T3-50CM cable as the default length. Longer STACK-T3-1M (1 m) and STACK-T3-3M (3 m) cables are available as options where switches are spread across a rack. The 0.5 m cable has a minimum bend radius of 41 mm (1.6 in.). It is a passive accessory and needs no power supply or PoE.

This kit is for Catalyst 9300L (C9300L) SKUs only and is not for Catalyst 9300 modular uplink models, which use StackWise-480 with STACK-T1 cables. Switches in a stack must run the same licence level, either Network Essentials or Network Advantage. The kit itself needs no separate licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Optional backplane stacking for Catalyst 9300L fixed uplink switches
- Up to 320 Gbps stacking bandwidth with StackWise-320
- Up to eight switches per stack, managed as a single logical switch
- Default 0.5 m cable, with 1 m and 3 m cable options available
- Stacks with other Catalyst 9300L and 9300LM models at the same licence level
- Passive accessory with no power or PoE requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Datasheet

Manual

Technical Specifications

- Product ID: C9300L-STACK-KIT
- Stacking technology: Cisco StackWise-320
- Stacking bandwidth: 320 Gbps
- Maximum switches per stack: 8
- Kit contents: 2 x stack adapters and 1 x stacking cable
- Default stacking cable: STACK-T3-50CM, Type 3 data stack cable
- Cable length (default): 0.5 m (1.64 ft)
- Minimum bend radius (STACK-T3-50CM): 41 mm (1.6 in.)
- Optional cables: STACK-T3-1M (1 m), STACK-T3-3M (3 m)
- Compatible switches: Catalyst 9300L (fixed uplink) SKUs only
- Form factor: plug-in module
- Power: passive accessory, no power supply or PoE required

Also Known As

C9300L-STACK-KIT =, C9300L-STACK-KIT-RF

FAQs

Q: Which switches is the C9300L-STACK-KIT designed for?
A: It is for Catalyst 9300L fixed-uplink (C9300L) SKUs only. It is not for Catalyst 9300 modular uplink models, which use StackWise-480 with STACK-T1 cables.

Q: How many switches can be stacked and at what bandwidth?
A: Up to eight switches can be stacked, with 320 Gbps of stacking bandwidth using StackWise-320.

Q: Does the kit need a separate licence?
A: No. The kit has no licence of its own, but all switches in the stack must run the same licence level, either Network Essentials or Network Advantage.

Q: Can I use a longer stacking cable than 0.5 m?
A: Yes. The default cable is STACK-T3-50CM (0.5 m), and the optional STACK-T3-1M (1 m) and STACK-T3-3M (3 m) cables suit switches mounted further apart.

Q: Does this kit need power or PoE?
A: No. It is a passive accessory and draws no power from a separate supply or PoE.
