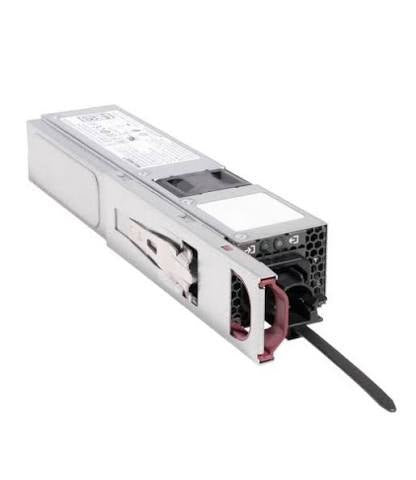

• Silver metallic cisco pwr-c2-850wac-iup 850w ac power supply with black cable and red accents hot-swappable unit
1 1

Cisco

Cisco PWR-C2-850WAC-IUP | Catalyst 9350 850W AC Power Supply, Port Inlet, Platinum

PWR-C2-850WAC-IUP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 850W AC power supply is part of the PWR-C2 family used in the Catalyst 9350 Series smart switches. It is a hot-swappable, field-replaceable module suited to campus access-layer deployments where PoE+ and UPOE power budgets and N+1 power redundancy are needed. This is the port-inlet, 80 PLUS Platinum variant.

The module delivers 850W of rated output with a 90V to 264V AC input range at 47 to 63 Hz, drawing up to 10A. Power supply efficiency is 92%, output is rated at up to 15.18A and holdup time is over 20 ms. Power connects through an AC IEC 60320 C16 input receptacle.

In a C9350 chassis it can be installed alongside the 500W and 1600W modules of the same family, with up to three power supplies supported for N+1 redundancy. In the default combined mode the output of all installed supplies is summed. It is the default supply for the C9350-24P, C9350-48P and C9350-24U models, providing 625W of available PoE as the primary supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable and field-replaceable
- Supports N+1 redundancy in the C9350 chassis, up to three power supplies
- Combined mode (default) sums the output of all installed power supplies
- Can be mixed with 500W and 1600W power supplies in the same chassis in combined mode
- 80 PLUS Platinum efficiency to reduce wasted power and heat
- Port-inlet variant for chassis with port-side inlet airflow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated maximum output power: 850W
- Input voltage range: 90V to 264V AC
- Input frequency: 47 Hz to 63 Hz
- Input current: 10A max
- Output rating: 15.18A max
- Power supply efficiency: 92%
- Output holdup time: over 20 ms
- Input receptacle: AC IEC 60320 C16
- Total output: 2900 BTU/hr
- Dimensions (H x W x D): 5.55 x 4 x 22 cm (2.18 x 1.57 x 8.66 in)
- Weight: 0.78 kg (1.71 lb)
- Efficiency rating: 80 PLUS Platinum
- Airflow: port inlet

FAQs

Q: Which switches does this power supply suit?
A: It belongs to the PWR-C2 power supply family used in the Catalyst 9350 Series smart switches, where it is the default supply for the C9350-24P, C9350-48P and C9350-24U models.

Q: How much PoE does it provide in a C9350 switch?
A: As the primary power supply in those models it gives 625W of available PoE. Fitting a second power supply increases the available power.

Q: Can I mix it with other power supply ratings?
A: Yes. In combined mode it can be installed in the same chassis as the 500W and 1600W power supplies from the same family.

Q: What does port inlet mean for this power supply?
A: It is the port-inlet airflow variant, intended for chassis with port-side inlet airflow, such as those fitted with the C9350 port inlet fan module.

Q: What input voltage does it accept?
A: It accepts 90V to 264V AC at 47 to 63 Hz, with a maximum input current of 10A, through an IEC 60320 C16 receptacle.
