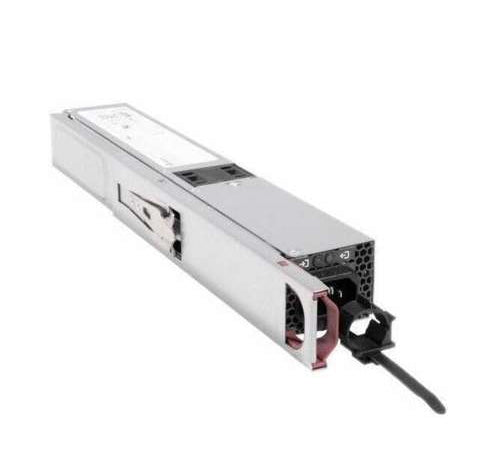

• Silver metallic cisco pwr-c2-1600wac-iup 1600w ac 80+ titanium port-inlet power supply with black connectors and red latch
1 1

Cisco

Cisco PWR-C2-1600WAC-IUP | 1600W AC Titanium PSU for Catalyst C9350, Port-Inlet

PWR-C2-1600WAC-IUP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1600W AC power supply is a hot-swappable unit for Cisco C9350 Series Smart Switches. It is the primary power supply upgrade, ordered in place of the switch's default PSU, and uses port-inlet airflow (Config 2). It suits campus access and PoE, UPOE and UPOE+ deployments that need a larger PoE budget than the default 850W supply provides.

The unit is 80+ Titanium rated at 94% efficiency and delivers a maximum 1600W at 230V input, or 1200W at 115V input. It accepts 180V to 264V for full output and 103.5V to 132V for 1200W, drawing 12.5A maximum through an IEC 60320 C16 receptacle. Holdup time is more than 20ms at 1600W. Compared with sibling SKUs, this is the primary upgrade variant, whereas the -I is the default supply, the -I= is a spare and the -I/2 is the redundant unit.

It installs in C9350 Series chassis including the C9350-24P, 48P, 24U, 48U, 24HX, 48HX, 48HXN and 48HM. Secondary and tertiary power supplies in the same chassis do not need to match the primary, and it can be mixed with 500W, 850W and 1600W units in Combined mode.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 80+ Titanium efficiency class for reduced wasted power and heat
- Hot-swappable primary power supply upgrade for C9350 Series chassis
- Supports Combined mode power sharing across up to 3 PSUs
- Secondary and tertiary supplies do not need to match the primary PSU
- Enables higher PoE budgets, such as 1375W on C9350-48P and C9350-48U with a single PSU
- Port-inlet airflow (Config 2)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Maximum output power: 1600W (230V input), 1200W (115V input)
- Efficiency rating: 80+ Titanium, 94%
- Input voltage range: 180V to 264V (1600W), 103.5V to 132V (1200W)
- Input current: 12.5A max
- Output rating: 28.57A max (1600W), 21.43A max (1200W)
- Output holdup time: >20ms (1600W), >12ms (1200W)
- Total output BTU: 5461 (1600W), 4096 (1200W)
- Input receptacle: AC IEC 60320 C16
- Airflow: Port-inlet (Config 2)
- Dimensions (H x W x D): 5.55 x 4 x 30 cm (2.18 x 1.57 x 11.81 in)
- Weight: 1.08 kg (2.39 lb)
- MTBF: 1,126,158 hours

FAQs

Q: Does this power supply need a licence?
A: No. The power supply itself requires no licence. The C9350 switch it installs in uses the Cisco Networking Subscription with Switching Essentials or Advantage licences.

Q: Which switches is it compatible with?
A: It is designed for Cisco C9350 Series Smart Switches, including the C9350-24P, 48P, 24U, 48U, 24HX, 48HX, 48HXN and 48HM.

Q: What input power does it need?
A: It needs 180V to 264V AC for the full 1600W output, or 103.5V to 132V AC for 1200W output. The inlet is IEC 60320 C16 and a power cable is ordered separately for each supply.

Q: How does it differ from the -I, -I= and -I/2 variants?
A: This SKU is the primary upgrade power supply. The -I is the default supply, the -I= is a spare and the -I/2 is the redundant supply.

Q: Can it be mixed with other power supplies in the same switch?
A: Yes. Secondary and tertiary power supplies need not match the primary, and it can be mixed with 500W, 850W and 1600W units in Combined mode.
