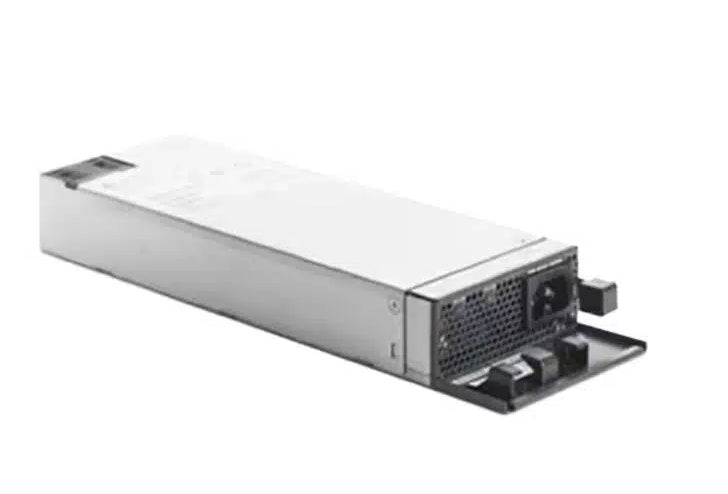

Cisco PWR-C1-1900WHV-UP | Catalyst 9300 1900W Power Supply, HVAC/HVDC Titanium, Upgrade

PWR-C1-1900WHV-UP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1900W high-voltage AC and DC power supply module is built for Catalyst 9300 and 9300X switches. It is the upgrade option for switches that need a higher PoE budget on UPOE and UPOE+ models, and suits data centre and telco sites that run high-voltage AC or DC feeds.

The module is Titanium-certified for efficiency and delivers 1900 W of output power. It accepts 380 VDC and 277 VAC input and has a total output heat of 6483 BTU/hr. It is a hot-swappable modular unit measuring 1.58 x 3.25 x 13.7 in (40.1 x 82.55 x 348.2 mm) and weighing 3.25 lb (1.47 kg). The HVAC/HVDC Titanium upgrade variant is the -UP ordering option, while the spare part is PWR-C1-1900WHV-T=.

It fits the modular power supply slot on C9300-24H, C9300-48H, C9300-24U, C9300-48U, C9300-24UX, C9300-48UXM and C9300-48UN, as well as C9300X-24HX, C9300X-48HX and C9300X-48HXN. It can be paired with a 350W, 715W, 1100W or 1900W secondary supply for redundancy or extra PoE power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Upgrade primary power supply for higher PoE budgets on UPOE and UPOE+ Catalyst 9300 and 9300X models
- High-voltage AC and DC input support for data centre and telco environments
- Titanium-level efficiency
- Hot-swappable modular design
- Can be paired with a secondary power supply for redundancy or extra PoE power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: PWR-C1-1900WHV-UP
- Power supply type: Hot-swappable modular, HVAC/HVDC
- Efficiency certification: Titanium
- Maximum output power: 1900 W
- Input: 380 VDC and 277 VAC
- Total output heat: 6483 BTU/hr (at 380 VDC and 277 VAC)
- Weight: 3.25 lb (1.47 kg)
- Dimensions (H x W x D): 1.58 x 3.25 x 13.7 in (40.1 x 82.55 x 348.2 mm)
- Form factor: Catalyst 9300 modular power supply slot
- Role: Upgrade option (non-default primary PSU) on C9300-24H/48H/24U/48U/24UX/48UXM/48UN and C9300X-24HX/48HX/48HXN models
- Secondary PSU compatibility: 350W, 715W, 1100W, 1900W

FAQs

Q: Which switches use this power supply?
A: It fits Catalyst 9300 and 9300X modular-PSU models including C9300-24H, C9300-48H, C9300-24U, C9300-48U, C9300-24UX, C9300-48UXM, C9300-48UN, C9300X-24HX, C9300X-48HX and C9300X-48HXN.

Q: What input voltage does it accept?
A: It accepts 380 VDC and 277 VAC input, which suits high-voltage data centre and telco power feeds.

Q: Can it be paired with a second power supply?
A: Yes. It can be combined with a 350W, 715W, 1100W or 1900W secondary supply for redundancy or extra PoE power.

Q: How does this differ from PWR-C1-1900WHV-T=?
A: PWR-C1-1900WHV-UP is the upgrade ordering option for moving a switch to this supply, while PWR-C1-1900WHV-T= is the spare part number for the same 1900W HVAC/HVDC Titanium module.

Q: How much PoE power can I get with it?
A: The available PoE budget depends on the switch model and the secondary supply. For example, a C9300-48H with a 1900W secondary reaches 2880W, and a C9300X-48HX reaches 3290W.
