Cisco

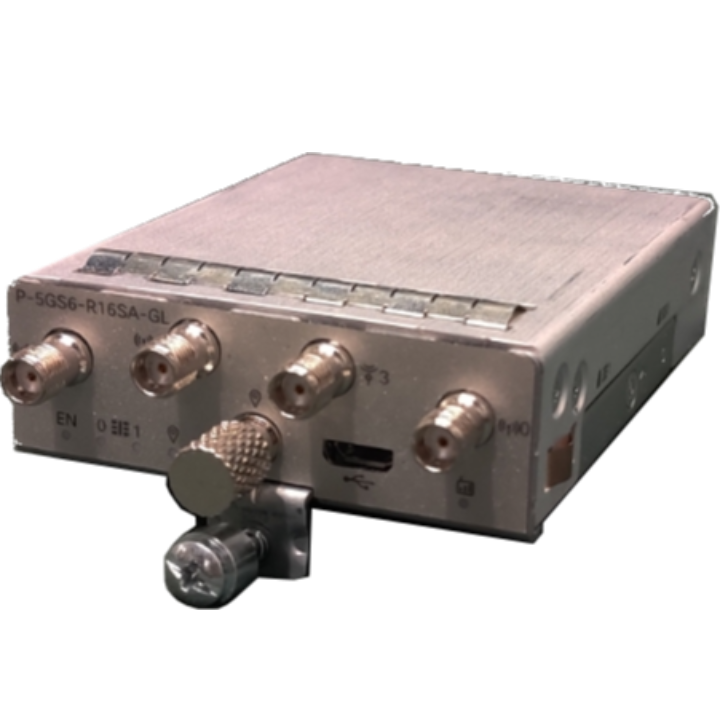

Cisco P-5GS6-R16SA-GL | IoT Router 5G Sub-6 SA Release 16 Module, EM9293

P-5GS6-R16SA-GL

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The P-5GS6 5G Sub-6 GHz pluggable interface module is a cellular modem module for Cisco IoT Industrial Routers. This variant uses the EM9293 modem and supports 5G Standalone (Release 16), adding 5G NR Sub-6 GHz (FR1) connectivity to industrial and IoT WAN deployments, with fallback to 4G LTE and 3G WCDMA.

The module provides four SMA cellular antenna ports (Antenna 0 to 3) and one SMA GPS port, and supports dual SIM operation with a status LED for each SIM. A Service LED shows the active technology: yellow for 3G, green for 4G LTE and blue for 5G. Band coverage includes 23 listed 5G NR transmit bands, 25 listed 4G LTE transmit bands and six 3G WCDMA bands, so it suits multi-region and multi-carrier roll-outs. FDD Band 30 can be disabled for vehicular applications.

It requires IOS XE release 17.15.1a or later and shares its face plate with the P-5GS6-GL. Each IoT router supports a maximum of two pluggable modules, in any combination of 5G and 4G PIMs. The antenna mapping is designed around the Cisco 5G-ANTM-O-4-B antenna, with MAIN 0 to ANT 0, MAIN 1 to ANT 1, DIV 0 to ANT 2, DIV 1 to ANT 3 and GNSS to the GPS port.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 5G Sub-6 GHz Standalone capability to the Cisco IoT Industrial Router family
- Automatic fallback to 4G LTE and 3G WCDMA where 5G coverage is unavailable
- Dual SIM slots with per-SIM status and activity LEDs
- Service LED indicates the active technology (3G, 4G or 5G)
- Module can be started or stopped from the CLI in exec mode
- Module can be configured to power off to reduce power consumption
- FDD Band 30 can be disabled for vehicular applications
- Supports combinations of 5G and 4G pluggable modules, up to two per router

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: P-5GS6-R16SA-GL
- Modem: EM9293
- Cellular technology: 5G NR Sub-6 GHz (FR1), Release 16 Standalone, with fallback to 4G LTE and 3G WCDMA
- Cellular antenna ports: 4 x SMA (Antenna 0, 1, 2, 3)
- GPS port: 1 x SMA
- SIM slots: Dual SIM (SIM 0 and SIM 1) with status LEDs
- Indicator LEDs: Enable (EN), SIM 0, SIM 1, GPS, Service
- Service LED: Yellow = 3G, Green = 4G LTE, Blue = 5G
- Retention: M3.5 thumb-screw
- Maximum pluggable modules per IoT router: 2 (combination of 5G and 4G PIMs)
- First release support: IOS XE release 17.15.1a
- 5G NR bands (ANT0 TX): n1, n2, n3, n5, n7, n8, n12, n13, n14, n17, n18, n20, n25, n26, n28, n30, n38, n39, n40, n41, n66, n70, n71
- 4G LTE TX bands (ANT0): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B32, B34, B38, B39, B40, B41, B66, B71
- 3G WCDMA bands: B1, B2, B4, B5, B8, B19
- Face plate: shared with P-5GS6-GL

FAQs

Q: Which software release does this module require?
A: It requires IOS XE release 17.15.1a or later on the Cisco IoT Industrial Router.

Q: How many of these modules can one router take?
A: A router supports a maximum of two pluggable modules, in any combination of 5G and 4G PIMs.

Q: Which antenna does this module map to?
A: It maps to the Cisco 5G-ANTM-O-4-B antenna: MAIN 0 to ANT 0, MAIN 1 to ANT 1, DIV 0 to ANT 2, DIV 1 to ANT 3 and GNSS to the GPS port.

Q: How does this differ from the P-5GS6-GL?
A: This SKU uses the EM9293 modem and supports 5G Standalone (Release 16). It shares the same face plate as the P-5GS6-GL.

Q: Does it fall back to older cellular networks?
A: Yes. It falls back to 4G LTE and 3G WCDMA, and the Service LED shows which technology is active.
