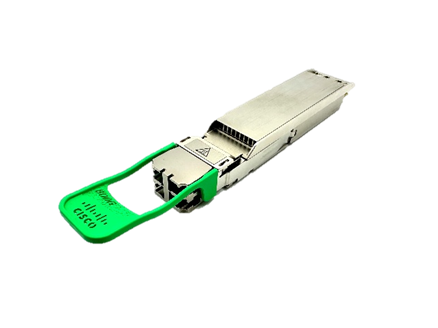

• Cisco QSFP+ transceiver module with green latch on OSFP-2X400G-LR4
1 1

Cisco

Cisco OSFP-2X400G-LR4 | 800G OSFP Transceiver, 2x400G LR4, 10km SMF, Dual LC

OSFP-2X400G-LR4

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 800G OSFP transceiver is built for high-density data centre, high-performance computing and AI network links, as well as enterprise core and distribution and service provider applications where 800G ports need to break out or connect as two 400G channels over single-mode fibre.

It carries 2x400GBASE-LR4 using 1310 nm CWDM4 wavelengths and reaches up to 10 km over single-mode fibre (SMF). The module uses dual duplex LC connectors, one duplex pair for each 400G channel, and is supplied in the 800G OSFP form factor, so it needs an OSFP port on the host switch or router.

The 2x400G LR4 and 10 km SMF reach set this module apart from shorter-reach OSFP options, making it suited to campus, inter-building and inter-row runs that exceed multimode or short-reach single-mode limits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carries 2x400GBASE-LR4 over a single 800G OSFP module
- 1310 nm CWDM4 optics for single-mode fibre links
- Reach of up to 10 km over SMF
- Dual duplex LC connectors, one duplex pair per 400G channel
- OSFP form factor for high-density 800G-capable ports
- Suited to data centre, HPC and AI fabric interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 800G OSFP
- Standard: 2x400GBASE-LR4
- Wavelength: 1310 nm CWDM4
- Reach: up to 10 km
- Fibre type: single-mode fibre (SMF)
- Connector: dual duplex LC

FAQs

Q: What fibre does this transceiver use?
A: It uses single-mode fibre (SMF) with dual duplex LC connectors, at 1310 nm CWDM4 wavelengths, for reach of up to 10 km.

Q: What host port does it need?
A: It needs an 800G-capable OSFP port on the host switch or router. It will not fit SFP, QSFP or QSFP-DD ports.

Q: How does it differ from other 800G OSFP modules?
A: This is the 2x400G LR4 variant with 10 km single-mode reach and dual duplex LC connectors, which separates it from shorter-reach OSFP variants.

Q: Can it be used for multimode fibre links?
A: No. It is designed for single-mode fibre only, so multimode cabling is not suitable for this module.
