Cisco

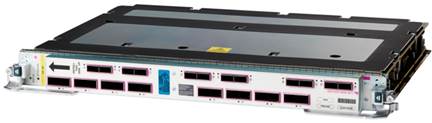

Cisco NC6-20X100GE-M-C | 20x100GbE | MS (Multi‑Service) | 100G pluggables (CFP2/CPAK, optic-dependent) | 100GBASE-LR4/SR10/ER4 | 1310/850 nm | reach up to 10–40 km | LC duplex/MPO connectors | license: 20x100G active

SKU:NC6-20X100GE-M-C

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High‑density 20‑port 100GbE line card for NCS 6000 with combo optic receptacles supporting LR4/ER4 (LC) and SR10 (MPO), optic‑dependent. MS profile enables multi‑service capabilities in addition to high‑scale IP/MPLS on IOS XR.

Features

- 20 x 100GbE ports for high-capacity aggregation
- Multi‑Service profile enabling advanced service features with IOS XR
- Combo optical receptacles for deployment flexibility
- Standards-based LR4/ER4/SR10 optic support
- Carrier‑class scale and resiliency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What distinguishes the MS variant from LSR?
A: MS adds multi‑service capabilities alongside IP/MPLS, subject to software licensing and feature activation, while LSR focuses on label‑switching performance.

Q: Are optics bundled?
A: No. Select appropriate 100G LR4/ER4/SR10 optics per link budget and cabling.

Q: Does it support segment routing?
A: Segment Routing support is IOS XR and license dependent. Verify in the software feature matrix for your release.

Q: Is 100G breakout supported?
A: Breakout depends on optics and platform support; verify with the hardware/optic release notes.

Q: What connectors are required?
A: LC duplex for LR4/ER4 optics; MPO/MTP for SR10 optics.

Technical Specifications

- Port density: 20 x 100 Gigabit Ethernet
- Line card role: MS (Multi‑Service) profile
- Optic bays: 100G pluggable combo (LC duplex for LR4/ER4; MPO/MTP for SR10), optic-dependent
- Supported 100G standards: 100GBASE-LR4, 100GBASE-ER4, 100GBASE-SR10 (optic-dependent)
- Typical wavelengths: 1310 nm (LR4/ER4), 850 nm (SR10)
- Optical reach: up to 10 km (LR4), up to 40 km (ER4), MMF short‑reach for SR10 (optic/media-dependent)
- Connector types: LC duplex (LR4/ER4), MPO/MTP (SR10)
- OS compatibility: Cisco IOS XR (release-dependent)
- Chassis compatibility: NCS 6000 Series slots (fabric/PEM requirements per chassis)
- Licensing: 20 x 100G ports active (no PAYG on this model)
