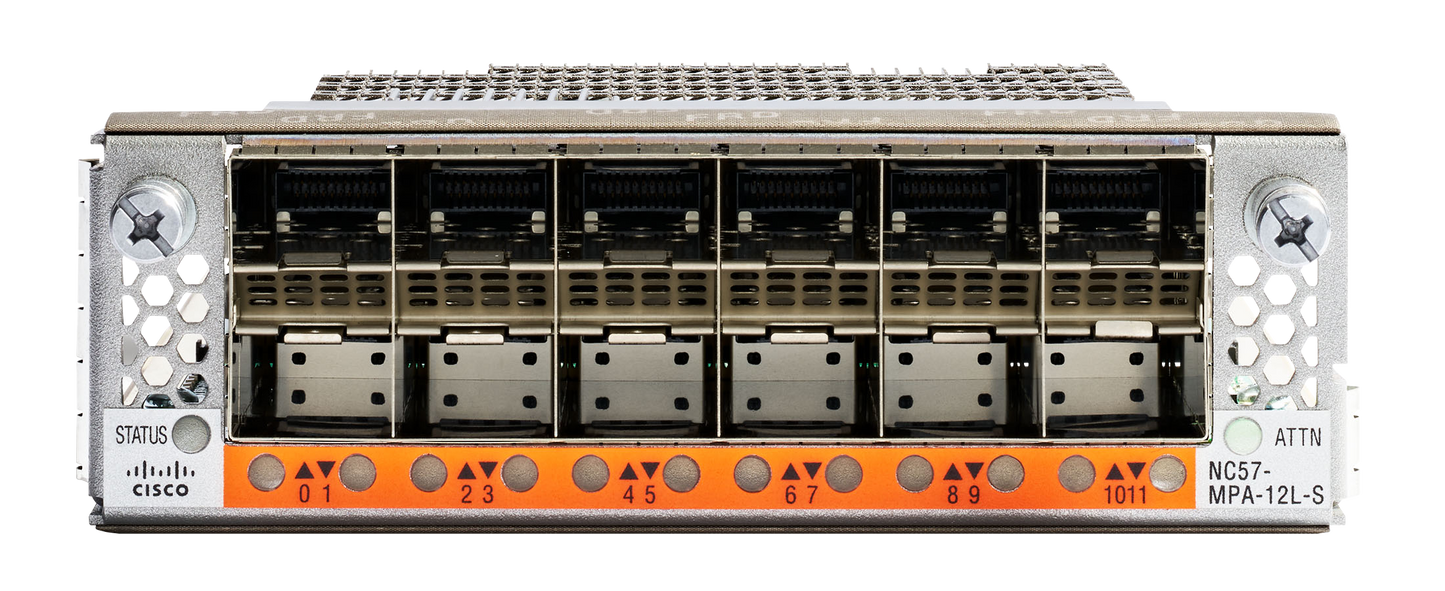

• Cisco NC57-MPA-12L-S silver router with orange accents and 12x SFP28 ports
1 1

Cisco

Cisco NC57-MPA-12L-S | 12x 10/25/50G SFP28/SFP56 MPA | line-rate ports, for NCS 5700

NC57-MPA-12L-S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-density modular port adapter providing 12 flexible Ethernet ports for 10/25/50G services on NCS 5700 platforms. Ideal for aggregation and access handoffs with mixed-rate operations per port. Optics and DAC/AOC cables are selectable per interface to match reach and media.

Features

- Flexible multi-rate 10/25/50G interfaces
- High-density 12-port design for efficient aggregation
- Per-port configuration for mixed service activation
- DOM/DDM monitoring support for optics health (software dependent)
- Hot-swappable MPA for rapid service turn-up

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port configuration: 12 ports
- Port form factor: SFP28/SFP56 (optic/cable dependent)
- Supported Ethernet rates: 10G, 25G, 50G per port (platform/software dependent)
- Forwarding: Line-rate forwarding across all ports (subject to system resources)
- Mix-and-match: Independent speed configuration per port
- Optics: Supports SR/LR/CWDM/DWDM SFP28 class optics; 50G requires appropriate SFP56 optics where supported
- Cabling: Compatible with DAC/AOC in supported lengths
- Compatibility: NCS 5700 slots supporting MPA modules
- Management/Monitoring: DOM/DDM and link OAM features per software support
- Licensing: Feature availability subject to platform software licensing

FAQs

Q: Are optics included?
A: No. Transceivers and cables are sold separately so you can select the reach and media needed.

Q: Can I run a mix of 10G, 25G, and 50G on different ports?
A: Yes, ports can typically be configured independently, subject to platform and software support.

Q: Does 50G require special optics?
A: Yes, 50G service generally requires suitable SFP56 optics and supported software.

Q: Which NCS 5700 systems support this MPA?
A: It is intended for NCS 5700 platforms with MPA-capable slots. Check the platform hardware compatibility list for specifics.

Q: Is additional licensing required for higher speeds?
A: Speed and feature enablement can be governed by platform software licensing. Verify on your target chassis and IOS XR release.
