Cisco N9K-C9800-SUP-B | Nexus 9800 Supervisor Module, 2nd Gen, 8-Core 64GB

N9K-C9800-SUP-B

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

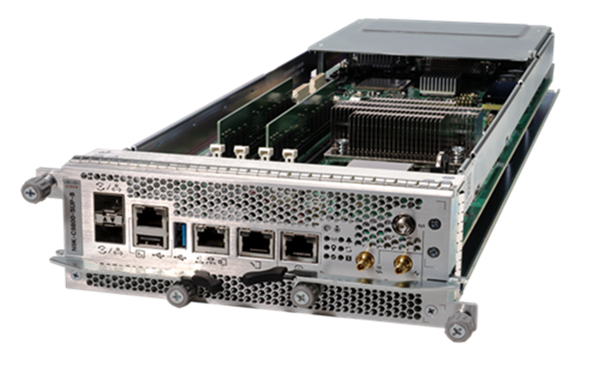

The N9K-C9800-SUP-B is the second-generation supervisor module for the Cisco Nexus 9800 Series modular data-centre switches. It handles all control-plane functions and is built for high-density spine and super-spine roles, as well as large-scale and AI/ML fabrics running 400G and 800G ports.

This 2nd Generation supervisor is built around an 8-core x86 CPU at 2.7 GHz with 64 GB of RAM and 256 GB of SSD storage. Front-panel connectivity includes a 10/100/1000 RJ-45 management Ethernet port, an RS-232 RJ45 console port, and USB Type-A and Type-B ports. Timing interfaces cover IEEE 1588 PTP, SyncE BITS/DTI/J.211, G.703 TOD, GNSS, 1PPS and 10 MHz. Maximum power consumption is 95 W per supervisor. The supervisor itself carries no separate licence, while Nexus 9800 features are licensed under Cisco Data Center Networking (DCN) Essentials, Advantage or Premier.

It fits the N9K-C9808 (8-slot) and N9K-C9804 (4-slot) chassis, each with two supervisor slots for 1+1 control-plane redundancy. It interoperates with the N9K-X9836E-SP2R-O, N9K-X9836DM-A and N9K-X98900CD-A line cards and requires NX-OS 10.6(2)F or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Manages all control-plane functions on the Cisco Nexus 9800 Series
- Supports 1+1 control-plane redundancy with dual supervisors per chassis
- Built-in precision timing interfaces (PTP, SyncE, GNSS, 1PPS, 10 MHz, TOD) for synchronisation
- Second-generation supervisor with an 8-core 2.7 GHz CPU, 64 GB RAM and 256 GB SSD
- Supports the 800G N9K-X9836E-SP2R-O OSFP line card, which the first-generation SUP-A does not
- Suited to high-density spine, super-spine and AI/ML data-centre fabrics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Generation: 2nd Generation supervisor
- CPU: 8-core x86 at 2.7 GHz
- Memory: 64 GB RAM
- Storage: 256 GB SSD
- Management Ethernet: 1 x 10/100/1000 RJ-45 port
- Console: RS-232 serial, RJ45
- USB: Type-A and Type-B ports
- Control plane expansion SFP/SFP+ port: present on faceplate, expansion ports not supported
- PTP: IEEE 1588 Precision Time Protocol port
- Sync: SyncE BITS/DTI/J.211 port
- Time of day: G.703 TOD port
- GNSS: Global Navigation Satellite System port
- 1PPS: 1.0/2.3 50 ohm connector, input and output
- 10 MHz: 1.0/2.3 50 ohm connector, input and output
- Maximum power consumption: 95 W
- Supervisor slots per chassis: 2 (N9808 and N9804)
- Supported line cards: N9K-X9836E-SP2R-O, N9K-X9836DM-A, N9K-X98900CD-A
- Software: NX-OS 10.6(2)F and later

FAQs

Q: Does the supervisor module need its own licence?
A: No. The supervisor module itself has no separate licence. Nexus 9800 features are licensed under Cisco Data Center Networking (DCN) Essentials, Advantage or Premier, and some features such as MACsec need add-on licences.

Q: Which chassis does the N9K-C9800-SUP-B fit?
A: It fits the N9K-C9808 (8-slot) and N9K-C9804 (4-slot) chassis. Each chassis has two supervisor slots, which allows 1+1 control-plane redundancy.

Q: Which line cards does it work with?
A: It interoperates with the N9K-X9836E-SP2R-O, N9K-X9836DM-A and N9K-X98900CD-A line cards. The N9K-X9836E-SP2R-O is only supported with the SUP-B supervisor and FM-B fabric modules.

Q: How does it differ from the SUP-A?
A: The SUP-B is the 2nd Generation supervisor with an 8-core 2.7 GHz CPU, 64 GB RAM and 256 GB SSD. Unlike the first-generation SUP-A, it supports the 800G N9K-X9836E-SP2R-O OSFP line card.

Q: What power does it draw and what NX-OS version does it need?
A: Maximum power consumption is 95 W per supervisor, supplied from the chassis power supplies. It requires NX-OS 10.6(2)F or later.
