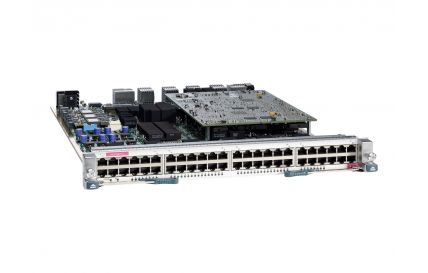

• Cisco N7K-M148GT-11L M1 line card with 48x 10/100/1000 RJ-45 ports
1 1

Cisco

Cisco N7K-M148GT-11L | Nexus 7000 M1 48-Port Gigabit RJ45 Line Card, XL

N7K-M148GT-11L

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 7000 M1-Series 48-port 10/100/1000 module is a copper RJ-45 line card for Nexus 7000 chassis. It is built on the M1-XL forwarding engine, which supports the larger FIB and ACL tables needed for Internet exchange points, service provider networks and large enterprise or data centre deployments.

Each card provides 48 ports of 10/100/1000 Ethernet over RJ-45, with 48 Gbps of local switching and a 46 Gbps per direction (92 Gbps full duplex) connection to the switch fabric. The forwarding engine delivers 60 Mpps of Layer 2/Layer 3 IPv4 unicast and 30 Mpps of IPv6 unicast. In XL mode it scales to 1M IPv4 routes, 350K IPv6 routes and 128K ACL entries, against 128K, 64K and 64K in standard mode. It also holds 128K MAC entries and supports jumbo frames up to 9216 bytes. A 10-slot chassis reaches 384 ports and an 18-slot chassis reaches 768 ports.

This is the copper-port, XL-option version of the M1-Series 48-port card. The SFP-port equivalent is the N7K-M148GS-11L. The card works in all Nexus 7000 chassis with Fabric-1 or Fabric-2 modules and SUP1, SUP2 or SUP2E supervisors, and requires NX-OS 5.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- XL mode enables a larger forwarding table for Internet-edge and service provider scale
- High-density 48-port Gigabit Ethernet in a single I/O module slot
- Virtual output queues with centralised arbitration for fairness under congestion
- Fully distributed forwarding with load sharing across all fabric modules
- MPLS support in hardware
- IEEE 802.1AE MACsec and Cisco TrustSec (SGT/SGACL) support
- ACL filtering, marking, rate limiting and NetFlow without performance degradation
- Online insertion and removal with an ID beacon LED for service identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet (RJ-45)
- Forwarding engine: M1-XL
- Performance: 60 Mpps L2/L3 IPv4 unicast, 30 Mpps IPv6 unicast
- Local switching: 48 Gbps
- Fabric interface: 46 Gbps per direction (92 Gbps full duplex)
- IPv4 routes: 128K standard mode, up to 1M in XL mode
- IPv6 routes: 64K standard mode, up to 350K in XL mode
- MAC entries: 128K
- ACL entries: 64K standard mode, 128K in XL mode
- NetFlow entries: 512K
- VLANs: 16,384 bridge domains, 4096 simultaneous VLANs per VDC
- Policers: 16,000
- Memory: 2 GB DRAM
- Jumbo frames: up to 9216 bytes
- Queues per port: input 2q4t, output 1p3q4t
- Port buffers: 7.56 MB ingress, 6.15 MB egress per port
- Maximum port density: 384 ports (10-slot chassis), 768 ports (18-slot chassis)
- Power consumption: 358 W typical, 400 W maximum
- Dimensions (H x W x D): 4.4 x 38.9 x 55.6 cm
- Weight: 6.4 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 90% non-condensing
- Software: Cisco NX-OS 5.1 or later
- Standards: NEBS Level 3, FCC Part 15 Class A, AS/NZS CISPR22 Class A

FAQs

Q: Does XL mode need a licence?
A: No licence is needed to run the card in standard mode. XL mode, which unlocks the full forwarding table, requires the optional Nexus 7000 Scalable Feature License, ordered per chassis. MACsec and TrustSec features also need a software licence.

Q: Which Nexus 7000 chassis and software does it work with?
A: It is supported in all Nexus 7000 chassis, with Fabric-1 or Fabric-2 modules and SUP1, SUP2 or SUP2E supervisors. It requires NX-OS 5.1 or later.

Q: How does it differ from the N7K-M148GS-11L?
A: This card has 48 copper 10/100/1000 RJ-45 ports. The N7K-M148GS-11L has 48 x 1GbE SFP ports for optical or SFP-based connections.

Q: Does this module provide PoE?
A: No. It is not a PoE module. It draws a typical 358 W and a maximum of 400 W from the chassis power supplies.

Q: How many ports can I get in one chassis?
A: Up to 384 ports in a 10-slot chassis and 768 ports in an 18-slot chassis.
