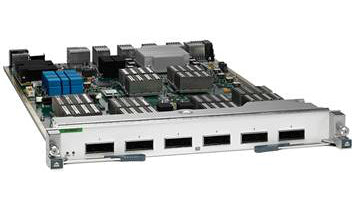

Cisco N7K-F306CK-25 | Nexus 7000 F3 6-Port 100GbE CPAK Line Card

N7K-F306CK-25

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N7K-F306CK-25 is a Nexus 7000 F3-Series line card built for high-density, low-latency 100 Gigabit Ethernet in data centre aggregation and core roles. It also suits FabricPath Layer 2 fabrics, data centre interconnect using OTV, MPLS and VPLS, VXLAN overlays and converged FCoE networks.

The module provides six 100 Gigabit Ethernet ports using Cisco CPAK optics and is a Fabric-2 module. It is built on the Cisco F3-Series switch-on-chip ASIC, delivering 900 Mpps of Layer 2 and Layer 3 forwarding for IPv4 and IPv6, with up to 600 Gbps of data throughput. Each module carries a 72 MB virtual output queue buffer, with 4 ingress and 4 egress queues per port, and jumbo frames up to 9216 bytes are supported for bridged and routed packets. Table capacity includes 64K MAC entries, 64K IPv4 routes, 32K IPv6 routes and 16K ACL entries.

The card requires an N7K-SUP2 or N7K-SUP2E supervisor and is supported in Nexus 7000 4-, 9-, 10- and 18-Slot chassis, occupying a single I/O module slot. It accepts CPAK-100G-SR10 and CPAK-100G-LR4 optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enables Cisco FabricPath for resilient, scalable Layer 2 networks
- Works with Cisco Nexus 2000 Series Fabric Extenders
- Integrated FCoE support
- VXLAN hardware support
- Data centre interconnect with OTV, MPLS and VPLS
- Cisco LISP support
- Virtual device context (VDC) support
- Security with CoPP, ACL counters and logging, L2-L4 ACLs and Cisco TrustSec SGT ACL processing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 6 x 100 Gigabit Ethernet (Cisco CPAK)
- Module type: Fabric-2, F3-Series I/O module
- Forwarding performance: 900 Mpps Layer 2 and Layer 3 (IPv4 and IPv6)
- Data throughput: Up to 600 Gbps
- VOQ buffer: 72 MB per module
- Queues per port: 4 ingress, 4 egress
- Jumbo frames: Up to 9216 bytes, bridged and routed
- MAC address entries: 64K
- VLANs: 4096 simultaneous per VDC
- IPv4 entries: 64K
- IPv6 entries: 32K
- Adjacency entries: 64K
- ACL entries: 16K
- Supervisor requirement: N7K-SUP2 or N7K-SUP2E
- Supported chassis: Nexus 7000 4-, 9-, 10- and 18-Slot
- Maximum 100GbE density: 96 (18-Slot), 48 (10-Slot), 42 (9-Slot), 12 (4-Slot)
- Dimensions (H x W x D): 4.4 x 38.9 x 55.6 cm, one I/O module slot
- Weight: 7.3 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 5 to 90%, noncondensing
- Storage temperature: -40 to 70 C

FAQs

Q: Which supervisor does this line card need?
A: It requires an N7K-SUP2 or N7K-SUP2E supervisor to support F3-Series modules.

Q: Which CPAK optics does it work with?
A: It supports CPAK-100G-SR10 (850 nm multimode, 100 m on OM3 and 150 m on OM4, 24-fibre MTP/MPO) and CPAK-100G-LR4 (1310 nm single-mode, 10 km, SC duplex).

Q: Which Nexus 7000 chassis can I install it in?
A: It is supported in the Nexus 7000 4-, 9-, 10- and 18-Slot chassis and occupies one I/O module slot.

Q: Does it need a separate licence?
A: Available features depend on the NX-OS release and the licences installed on the chassis. Confirm the tier you need for your design before ordering.

Q: How many 100GbE ports can a chassis support with this card?
A: Up to 96 ports in the 18-Slot chassis, 48 in the 10-Slot, 42 in the 9-Slot and 12 in the 4-Slot.
