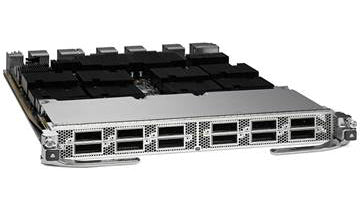

• Cisco N77-F324FQ-25 silver F3 Series 24x 40GbE QSFP+ line card
1 1

Cisco

Cisco N77-F324FQ-25 | Nexus 7700 F3 24-Port 40G QSFP+ Line Card

N77-F324FQ-25

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 7700 F3-Series 24-port 40GbE QSFP+ line card is a high-density, low-latency Layer 2 and Layer 3 I/O module for Nexus 7700 chassis. It suits data centre aggregation and core deployments, virtualised and overlay environments using VXLAN and LISP, and FCoE designs where the optional licence is added.

The module provides 24 x 40 Gigabit Ethernet QSFP+ ports with 960 Gbps of module throughput and 1.44 billion packets per second of Layer 2 and Layer 3 IPv4 and IPv6 forwarding. A Nexus 7718 chassis can hold up to 384 wire-rate 40GbE ports and a Nexus 7710 up to 192. Nineteen ports can run in 10GbE breakout mode while the remaining five stay at 40GbE. The base module needs no licence to operate, and FCoE is enabled with the separate N77-FCOE-F324FQ licence.

The line card installs in Nexus 7700 2-, 6-, 10- and 18-slot chassis (7702, 7706, 7710 and 7718). QSFP+ 40G optics or breakout cables are required to bring the ports into service.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- F3 forwarding engine supports foundational Layer 2 and Layer 3 protocols
- Hardware support for VXLAN and LISP virtual overlay networking
- Low-latency, high-performance, high-density 40GbE aggregation
- Port breakout to 10GbE using copper or fibre breakout assemblies
- Optional FCoE support through a separate licence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 40 Gigabit Ethernet QSFP+
- Module throughput: 960 Gbps
- Forwarding rate: 1.44 billion packets per second, Layer 2 and Layer 3 IPv4/IPv6
- Maximum density, Nexus 7718: 384 wire-rate 40GbE ports
- Maximum density, Nexus 7710: 192 wire-rate 40GbE ports
- Breakout mode: 19 ports at 10GbE, remaining 5 ports at 40GbE
- Overlay support: hardware VXLAN and LISP
- Forwarding engine: F3-Series
- Chassis support: Nexus 7700 2-, 6-, 10- and 18-slot
- Optional FCoE licence: N77-FCOE-F324FQ
- Optics: QSFP+ 40G modules required, sold separately

FAQs

Q: Does this line card need a licence to operate?
A: The base module needs no licence to operate. Fibre Channel over Ethernet (FCoE) requires the separate N77-FCOE-F324FQ licence.

Q: Which Nexus chassis does it install in?
A: It is supported in Nexus 7700 chassis with 2, 6, 10 and 18 slots, which covers the 7702, 7706, 7710 and 7718.

Q: What optics or cables does it need?
A: The 24 ports are QSFP+ and need 40G QSFP+ optics or breakout cables to be used. These are not part of the line card itself.

Q: Can the ports run at 10GbE?
A: Yes. Nineteen ports can run in 10GbE breakout mode using copper or fibre breakout assemblies, while the other five remain at 40GbE.

Q: How many 40GbE ports can a chassis hold with this module?
A: A Nexus 7718 supports up to 384 wire-rate 40GbE ports and a Nexus 7710 supports up to 192.
