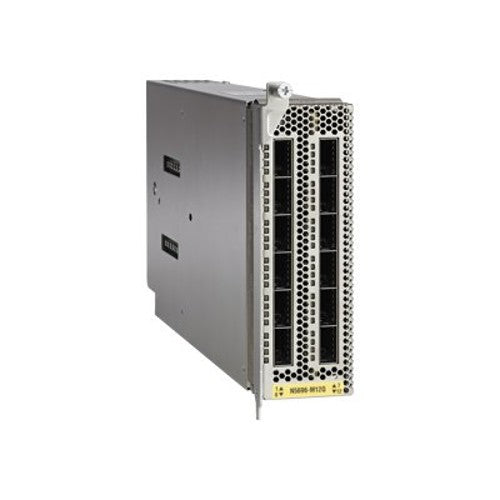

Cisco N5600-M12Q | Nexus 5600 12-Port 40G QSFP+ Module, 5624Q/5648Q

N5600-M12Q

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 5600 12-port 40G QSFP+ expansion module adds twelve native 40 Gigabit Ethernet and FCoE ports to a Cisco Nexus 5624Q or 5648Q switch. It suits data centre top-of-rack, aggregation and leaf/spine designs where 40G port density or extra uplink capacity is needed, as well as converged Ethernet and FCoE I/O consolidation.

It is a hot-swappable generic expansion module (GEM) with online insertion and removal. The Nexus 5624Q has one GEM bay, giving up to 24 x 40G ports in total, and the Nexus 5648Q has two GEM bays, giving up to 48 x 40G ports in total. Each QSFP+ port can also run as 4 x 10GbE using breakout cables, and the host platform offers line-rate Layer 2 and Layer 3 forwarding with approximately 1 microsecond cut-through latency.

The module is supported in the Nexus 5624Q and 5648Q chassis only, and it is not for the 5696Q. It draws power from the host chassis and needs no licence of its own, although host switch features depend on the Nexus 5600 software licences.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 12 native 40GbE/FCoE QSFP+ ports for high-density 40G aggregation or spine/leaf uplink capacity
- Hot-swappable with online insertion and removal
- Line-rate Layer 2 and Layer 3 forwarding on the host platform
- Each 40G port can run as 4 x 10GbE using QSFP breakout cables
- 1GbE connectivity possible with a QSFP-to-SFP/SFP+ adapter (QSA)
- Host platform supports FabricPath, vPC, Adapter FEX, VM-FEX and RoCE/DCB

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: N5600-M12Q
- Port type: 12 x 40 Gigabit Ethernet / FCoE QSFP+
- Form factor: Generic Expansion Module (GEM), hot-swappable
- Compatible chassis: Cisco Nexus 5624Q and Nexus 5648Q only
- Expansion bays: 5624Q has 1 GEM bay, 5648Q has 2 GEM bays
- Maximum 40G ports in system: 5624Q 24 (12 fixed + 12 GEM), 5648Q 48 (24 fixed + 24 GEM)
- Maximum 10G ports via breakout cables: 5624Q up to 96, 5648Q up to 192
- Forwarding performance (chassis): 5624Q 1.92 Tbps / 1428 mpps, 5648Q 3.84 Tbps / 2856 mpps
- Latency (platform): approx. 1 microsecond cut-through
- Buffer (platform): 25 MB per 3 x 40GbE QSFP interfaces
- Jumbo frames: up to 9216 bytes
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m
- Chassis typical power (incl. modules): 5624Q 750 W, 5648Q 1000 W
- Chassis maximum power (incl. modules): 5624Q 1100 W, 5648Q 1600 W

FAQs

Q: Which switches is the N5600-M12Q compatible with?
A: It is supported in the Cisco Nexus 5624Q and Nexus 5648Q chassis only. It is not for the Nexus 5696Q, which uses the N5696-M12Q module.

Q: Does this module need its own licence?
A: No. The module itself needs no licence. Features on the host switch depend on the Nexus 5600 software licences, such as N56-BAS1K9 for Layer 3 Base.

Q: How is the module powered?
A: It draws power from the host chassis and has no separate power input. The Nexus 5624Q uses up to 2 x 1100 W power supplies, and the Nexus 5648Q uses up to 4 x 1100 W power supplies.

Q: Can the 40G ports be used for 10G connections?
A: Yes. Each QSFP+ port can run as 4 x 10GbE using QSFP breakout cables. A QSFP-to-SFP/SFP+ adapter (QSA) allows 1GbE or 10GbE connectivity on the platform.

Q: How many 40G ports will I have with this module installed?
A: A Nexus 5624Q with one module has 24 x 40G ports in total. A Nexus 5648Q with two modules has 48 x 40G ports in total.
