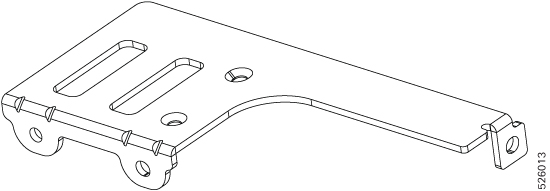

• Metallic silver bracket with three elongated slots and two circular holes designed for cisco gpu extender use
1 1

Cisco

Cisco EXT-X580P-GPU-N | UCS X580p GPU Extender Bracket for H200 NVL

EXT-X580P-GPU-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

This Cisco enhanced GPU extender bracket is a mechanical accessory for the UCS X-Series Modular System. It replaces the legacy straight extender bracket fitted to NVIDIA H200 NVL GPUs so the card is properly supported in the GPU cages of the UCS X580p PCIe Node. It suits teams retrofitting H200 NVL cards, including cards sourced outside Cisco, into the X580p for generative AI training, fine-tuning and LLM inference.

The bracket is a passive part with no power draw, ports or throughput figures. It is specified for the NVIDIA H200 NVL (Cisco PID UCSX-GPU-H200-NVL), a 600W, 141GB, 2-slot NVL2 full-height, full-length GPU. The X580p GPU cages accept FHFL dual-slot GPUs, with two cages per node. The legacy straight bracket can be incompatible with these cages, which is the reason for the enhanced bracket. No licence is required for the bracket itself.

It is used with the Cisco UCS X580p PCIe Node (UCSX-580P-U) in a UCS X9508 chassis with UCS X9516 X-Fabric modules. The H200 NVL GPUs it supports can be paired with the UCSX-NVL2-H200 NVLink bridge, and the node works alongside UCS X210c M7/M8 and X215c M8 compute nodes. Installation is covered in the Cisco UCS X580p PCIe Node Installation and Service Guide.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Provides physical support for H200 NVL GPUs in the X580p GPU cages
- Replaces the legacy straight bracket that can be incompatible with the X580p GPU cages
- Suits H200 NVL cards sourced outside Cisco as well as Cisco-supplied cards
- Passive mechanical part with no power or cabling requirements
- Installation procedure documented in the Cisco UCS X580p PCIe Node Installation and Service Guide

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: EXT-X580P-GPU-N=
- Part type: Enhanced GPU extender bracket, replacement for the legacy straight extender bracket
- Intended GPU: NVIDIA H200 NVL (Cisco PID UCSX-GPU-H200-NVL), 600W, 141GB, 2-slot NVL2 FHFL
- Host node: Cisco UCS X580p PCIe Node (UCSX-580P-U), Gen5 PCIe
- GPU cage: accepts FHFL dual-slot GPUs, two cages per node
- Power draw: none (passive mechanical part)
- Host node dimensions (H x W x D): 94 x 286.5 x 602 mm
- Host node operating temperature: 10 to 27 C
- Host node nonoperating temperature: -40 to 65 C

FAQs

Q: Which GPU is this bracket designed for?
A: It is designed for the NVIDIA H200 NVL GPU (Cisco PID UCSX-GPU-H200-NVL), a 600W, 141GB, 2-slot NVL2 full-height, full-length card, installed in the UCS X580p PCIe Node.

Q: Does it need a licence?
A: No. The bracket is a passive mechanical part and needs no licence. The host X580p PCIe node is managed through Cisco Intersight in Intersight Managed Mode, with a minimum Essentials licence per server.

Q: Why replace the legacy straight bracket?
A: The legacy straight extender bracket can be incompatible with the X580p GPU cages, typically on GPUs sourced outside Cisco. The enhanced bracket gives the card proper physical support in the cage.

Q: What does it work with?
A: It works with the Cisco UCS X580p PCIe Node (UCSX-580P-U) in a UCS X9508 chassis with UCS X9516 X-Fabric modules, fitted to NVIDIA H200 NVL GPUs. The GPUs can be paired with the UCSX-NVL2-H200 NVLink bridge.

Q: Does the bracket draw power?
A: No. It is a passive part with no power draw. The H200 NVL GPU it supports is rated at 600W, and the X580p powers GPUs through AUX and CEM cables.
