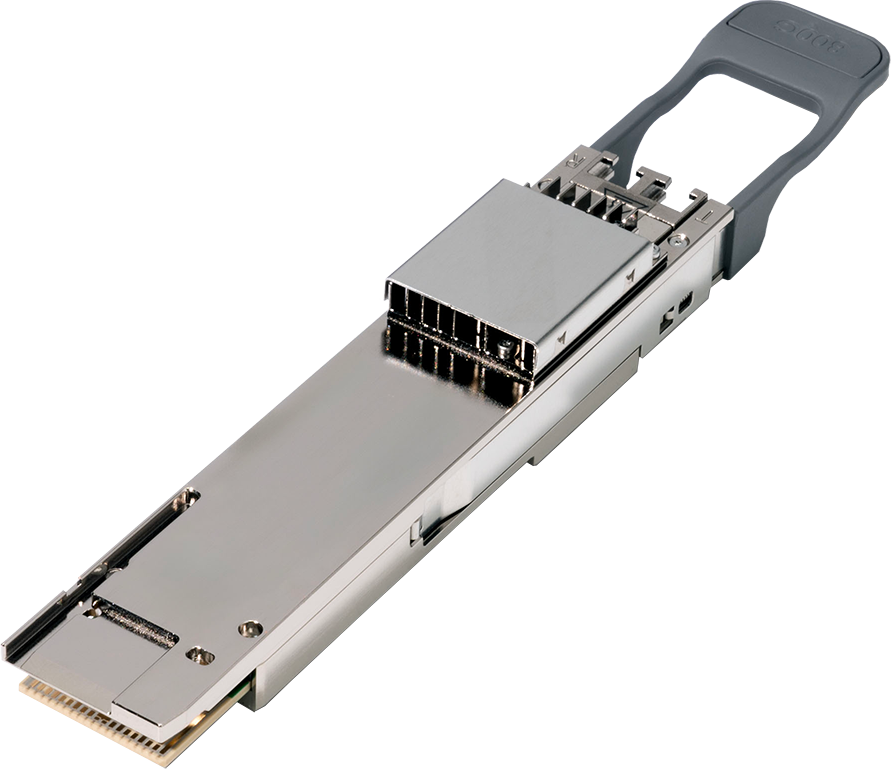

• Cisco DP08QSDQ-ZRB-A1 800G QSFP-DD silver transceiver with gold pins
1 1

Cisco

Cisco DP08QSDD-ZRB-A1 | 800G ZR+ Coherent Transceiver, C-Band, OpenROADM

DP08QSDD-ZRB-A1

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 800G ZR+ coherent transceiver is a pluggable digital coherent optics module in the QSFP-DD form factor, tunable across the C-band. It is built for metro and regional data centre interconnect, high-capacity single-span DCI and service provider DWDM networks, and suits Cisco Routed Optical Networking deployments.

The module uses a duplex LC connector over single-mode fibre and tunes from 1528.58 nm to 1567.34 nm. In 800G ZR+ mode it reaches 80 km unamplified and over 1000 km across amplified DWDM links, using OpenROADM interoperable PCS. It also supports 800ZR with 16QAM, 600G and 400G OpenROADM modes, and 400G OpenZR+. Client formats cover 100GE, 200GE, 400GE and 800GE, with transmit power above +1 dBm in the C-band. Case temperature range is -5 to 75 C and power is QSFP-DD type 2B compliant.

It is supported on Cisco switches and routers with QSFP-DD ports, and on 800G-capable QSFP-DD hosts. Platform and software support can be checked in the Cisco Transceiver Modules Compatibility Matrix and the Cisco Optics Product Information Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- QSFP-DD form factor for 800G-capable routers, switches and transponders
- Low power consumption, reducing power and cooling requirements
- Extended reach: 80 km unamplified and over 1000 km amplified in 800G ZR+ mode
- 800G ZR+ interoperable with OpenROADM PCS
- 800ZR interoperable with OIF 800ZR and OpenZR+ 400G QPSK
- High transmit power and OSNR, compatible with any DWDM photonic network
- Tunable across the full C-band for DWDM channel planning

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: QSFP-DD, mechanically compliant with the QSFP-DD MSA
- Module type: 800G ZR+ coherent DCO, C-band
- Wavelength: Tunable, 1528.58 nm to 1567.34 nm
- Connector: Duplex LC
- Fibre: Single-mode (SMF)
- Unamplified reach: Up to 75 km with 800ZR and 80 km with 800G ZR+
- Amplified reach (800ZR): Up to 120 km amplified DWDM
- Amplified reach (800G ZR+): Over 1000 km amplified DWDM
- Transmit power: Above +1 dBm, C-band
- Client formats: 100GE, 200GE, 400GE, 800GE
- 800ZR modulation: 800G OIF 800ZR 16QAM; 400G OpenZR+
- 800G ZR+ modulation: 800G OpenROADM interoperable PCS, OIF 800G 16QAM, proprietary enhanced mode
- 800G ZR+ lower rates: 600G OpenROADM interoperable PCS; 400G OpenROADM QPSK, OpenZR+
- FOIC mode: 800G ZR+ only on transponders
- Power: QSFP-DD type 2B compliant
- Case temperature: -5 to 75 C (41 to 167 F)

FAQs

Q: Does this module need a separate licence?
A: No licence requirement is specified for this module. It is a pluggable coherent optic that operates once installed in a supported QSFP-DD host.

Q: How much power does it need?
A: The module is QSFP-DD type 2B power compliant. The host port must be able to supply type 2B power for the module to operate.

Q: What does it work with?
A: It works with Cisco switches and routers that have QSFP-DD ports and with other 800G-capable QSFP-DD hosts. It interoperates with OpenROADM in 800G ZR+ mode, and with OIF 800ZR and OpenZR+ 400G QPSK. Check the Cisco Transceiver Modules Compatibility Matrix for platform and software support.

Q: What reach can I expect?
A: In 800G ZR+ mode, reach is up to 80 km unamplified and over 1000 km on amplified DWDM links. In 800ZR mode it is up to 75 km unamplified and up to 120 km amplified. Actual reach depends on fibre and connector loss and the line system design.

Q: Which client rates does it support?
A: It supports 100GE, 200GE, 400GE and 800GE client formats.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
